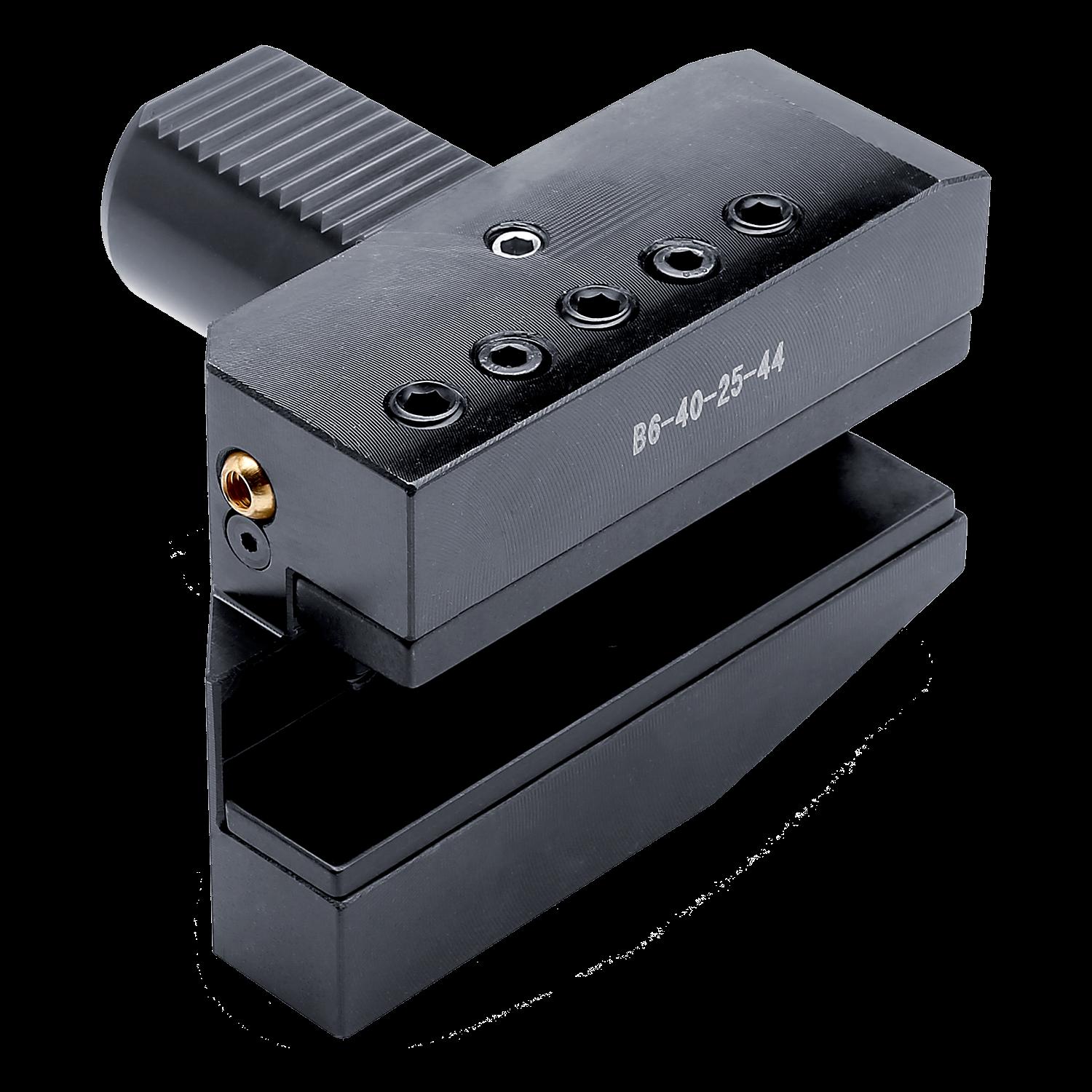

PRAMET VDI.30-B6.20.40 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603603204164
Product number (SAP): 86029236
Size: 30
ISO: VDI.30-B6.20.40
Ordering code ANSI: VDI.30-B6.20.40
Net weight – grams: 1771
Gross weight – grams: 1771
Connection diameter – millimeter (DCON MS): 30 mm
Connection size Value (CSIZE): B6 – 30 × 20 × 40
Functional height – millimeter (HF): 20 mm
Functional length – millimeter (LF): 22 mm
Overall height – millimeter (OAH): 66 mm
Overall width – millimeters (OAW): 100 mm
Protruding length – millimeter (LPR): 40 mm
Radial body height – millimeters (RADH): 38 mm
Radial body width – millimeters (RADW): 65 mm
Radial offset width – millimeters (RADWOF): 10 mm
