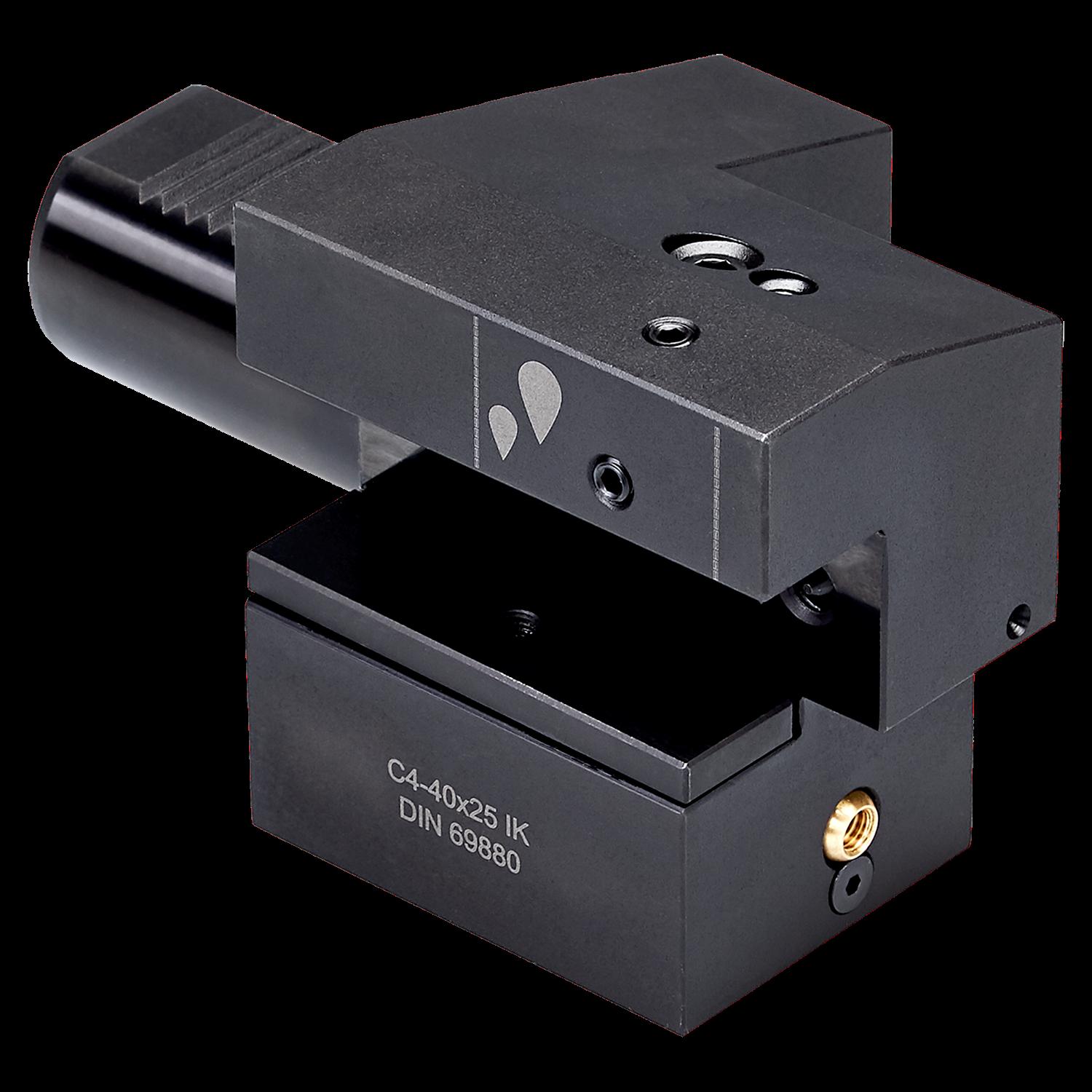

PRAMET VDI.30-C4.20.40.C Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603604032919
Product number (SAP): 86042507
Size: 30
ISO: VDI.30-C4.20.40.C
Ordering code ANSI: VDI.30-C4.20.40.C
Net weight – grams: 2100
Gross weight – grams: 2100
Connection diameter – millimeter (DCON MS): 30 mm
Connection diameter workpiece side – millimeter (DCON WS): 20 mm
Connection size Value (CSIZE): C4 – 30 × 20
Functional height – millimeter (HF): 20 mm
Functional length – millimeter (LF): 23 mm
Overall height – millimeter (OAH): 73 mm
Overall width – millimeters (OAW): 76 mm
Protruding length – millimeter (LPR): 70 mm
