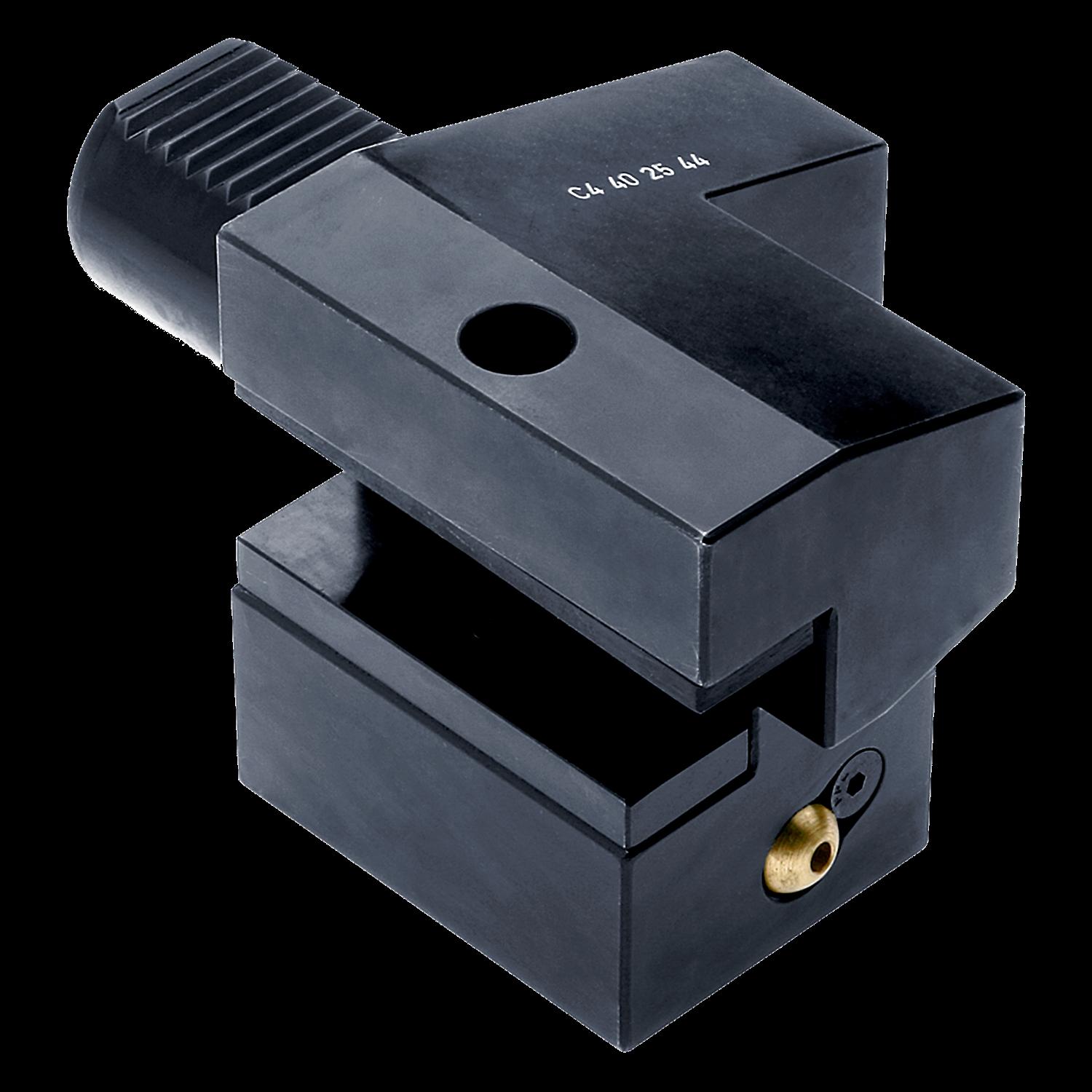

PRAMET VDI.30-C4.20 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603603204348
Product number (SAP): 86029254
Size: 30
ISO: VDI.30-C4.20
Ordering code ANSI: VDI.30-C4.20
Net weight – grams: 2081
Gross weight – grams: 2152
Connection diameter – millimeter (DCON MS): 30 mm
Connection size Value (CSIZE): C4 – 30 × 20
Functional height – millimeter (HF): 20 mm
Functional length – millimeter (LF): 23 mm
Overall height – millimeter (OAH): 73 mm
Overall width – millimeters (OAW): 76 mm
Protruding length – millimeter (LPR): 70 mm
Radial body height – millimeters (RADH): 35 mm
Radial body width – millimeters (RADW): 41 mm
Radial offset width – millimeters (RADWOF): 10 mm
