Description: Value

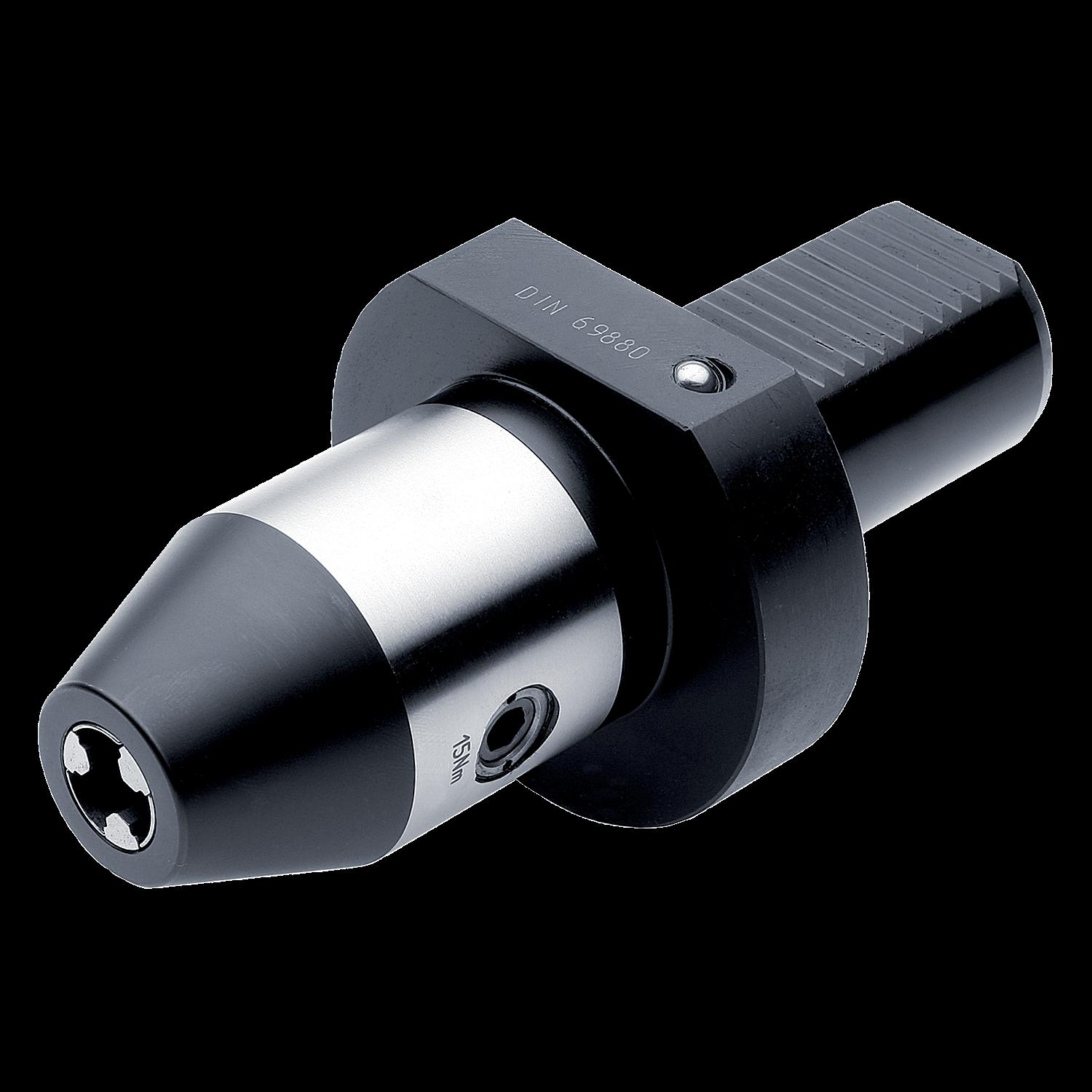

Brand Name: Dormer Pramet
EAN number: 3603603205475
Product number (SAP): 86029367
Size: 30
ISO: VDI.30-DC.16.098
Ordering code ANSI: VDI.30-DC.16.098
Net weight – grams: 1718
Gross weight – grams: 1781.4
Body diameter – millimeter (BD): 50 mm
Body length – millimeter (LB): 76 mm
Connection bore diameter minimum – millimeter (DCBN): 2.5 mm
Connection bore diameter maximum – millimeter (DCBX): 16 mm
Connection diameter – millimeter (DCON MS): 30 mm
Flange diameter – millimeter (DF): 68 mm
Protruding length – millimeter (LPR): 98 mm
|
