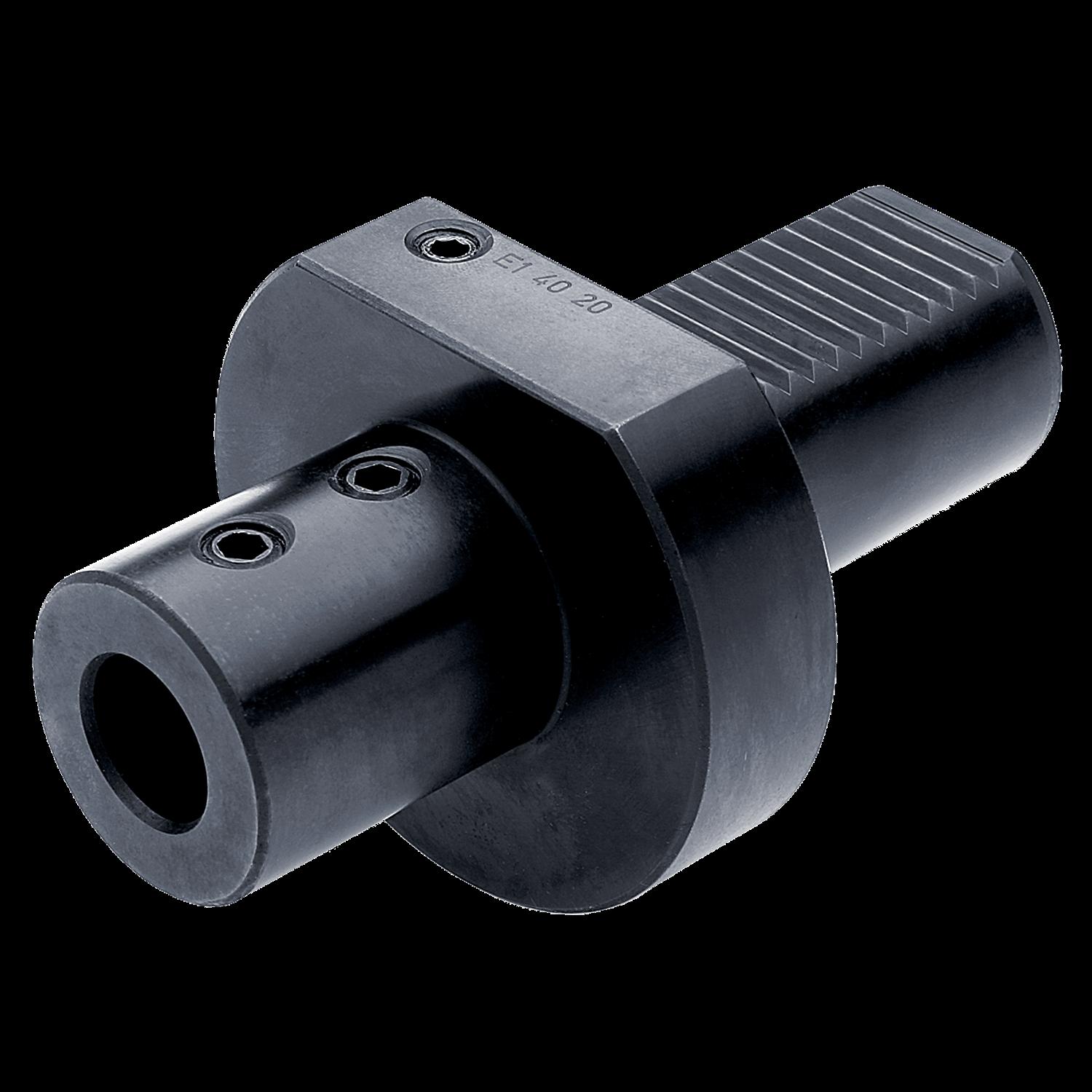

PRAMET VDI.30-E1.25 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603603204645
Product number (SAP): 86029284
Size: 30
ISO: VDI.30-E1.25
Ordering code ANSI: VDI.30-E1.25
Net weight – grams: 1259.5
Gross weight – grams: 1259.5
Body diameter – millimeter (BD): 45 mm
Body length – millimeter (LB): 49 mm
Connection diameter – millimeter (DCON MS): 30 mm
Connection diameter workpiece side – millimeter (DCON WS): 25 mm
Connection size Value (CSIZE): E1 – 30 × 25
Flange diameter – millimeter (DF): 68 mm
Protruding length – millimeter (LPR): 71 mm
