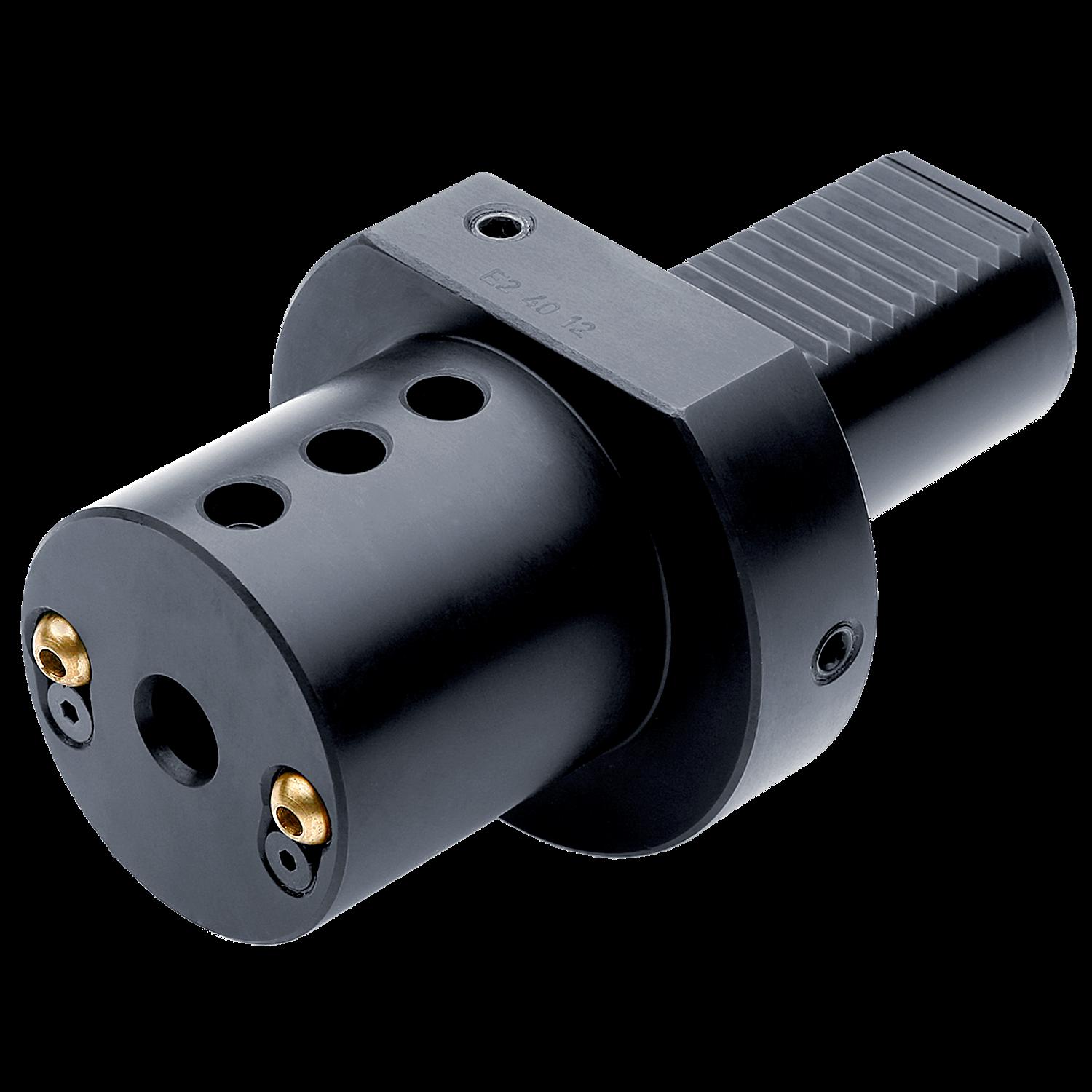

PRAMET VDI.30-E2.20 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603603204829
Product number (SAP): 86029302
Size: 30
ISO: VDI.30-E2.20
Ordering code ANSI: VDI.30-E2.20
Net weight – grams: 1458
Gross weight – grams: 1465
Body diameter – millimeter (BD): 68 mm
Body length – millimeter (LB): 38 mm
Connection diameter – millimeter (DCON MS): 30 mm
Connection diameter workpiece side – millimeter (DCON WS): 20 mm
Connection size Value (CSIZE): E2 – 30 × 20
Flange diameter – millimeter (DF): 55 mm
Protruding length – millimeter (LPR): 60 mm
