Home » Shop » CUTTING TOOLS (HSS & Carbide) » Holding » N1 - Tooling system » PRAMET VDI.30-E2.25 Tooling system
$269.65$245.14 Ex. GST

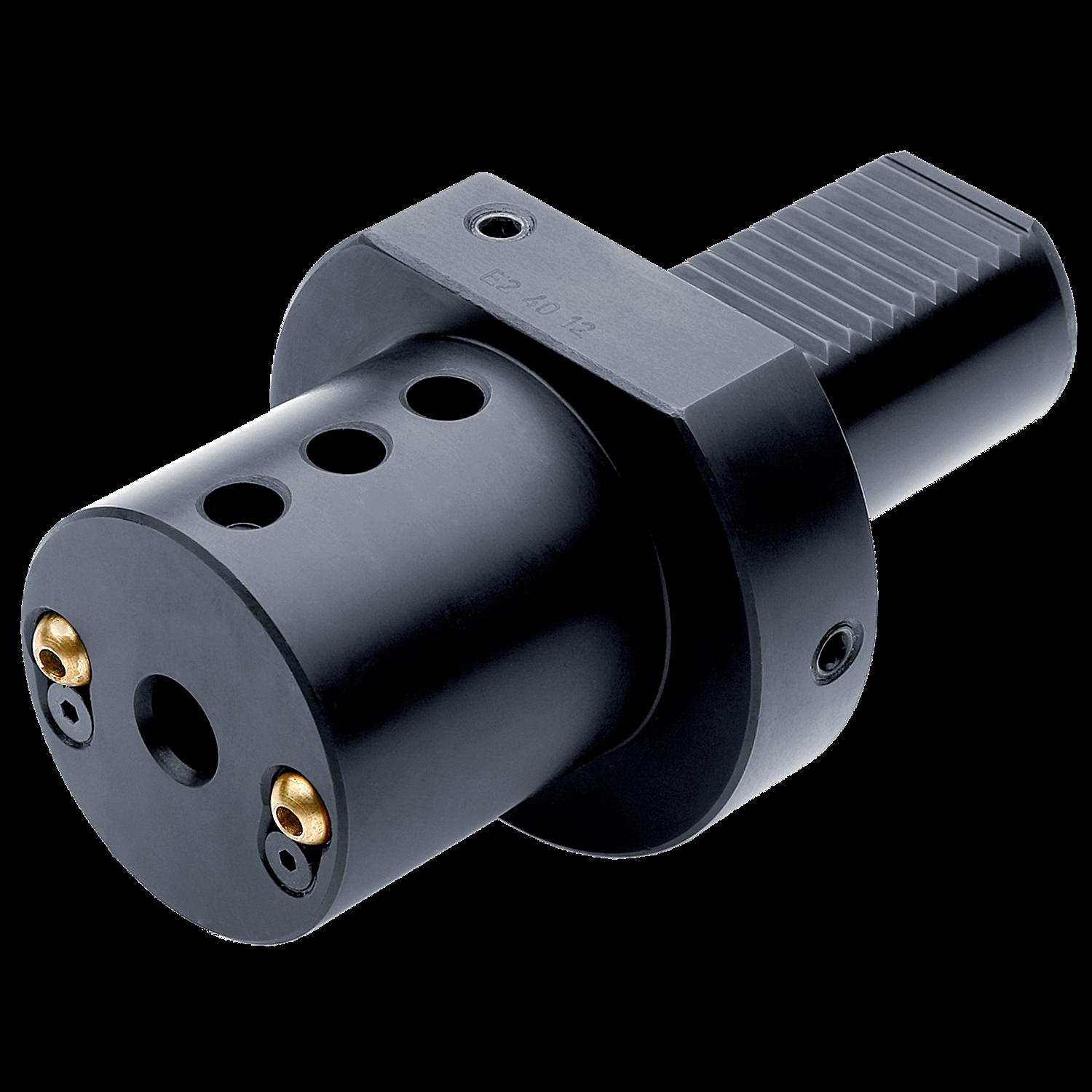

VDI Holder Form E2 for Boring Bars
Description: Value Brand Name: Dormer Pramet EAN number: 3603603204836 Product number (SAP): 86029303 Size: 30 ISO: VDI.30-E2.25 Ordering code ANSI: VDI.30-E2.25 Net weight – grams: 1344 Gross weight – grams: 1387.3 Body diameter – millimeter (BD): 68 mm Body length – millimeter (LB): 38 mm Connection diameter – millimeter (DCON MS): 30 mm Connection diameter workpiece side – millimeter (DCON WS): 25 mm Connection size Value (CSIZE): E2 – 30 × 25 Flange diameter – millimeter (DF): 55 mm Protruding length – millimeter (LPR): 60 mm
