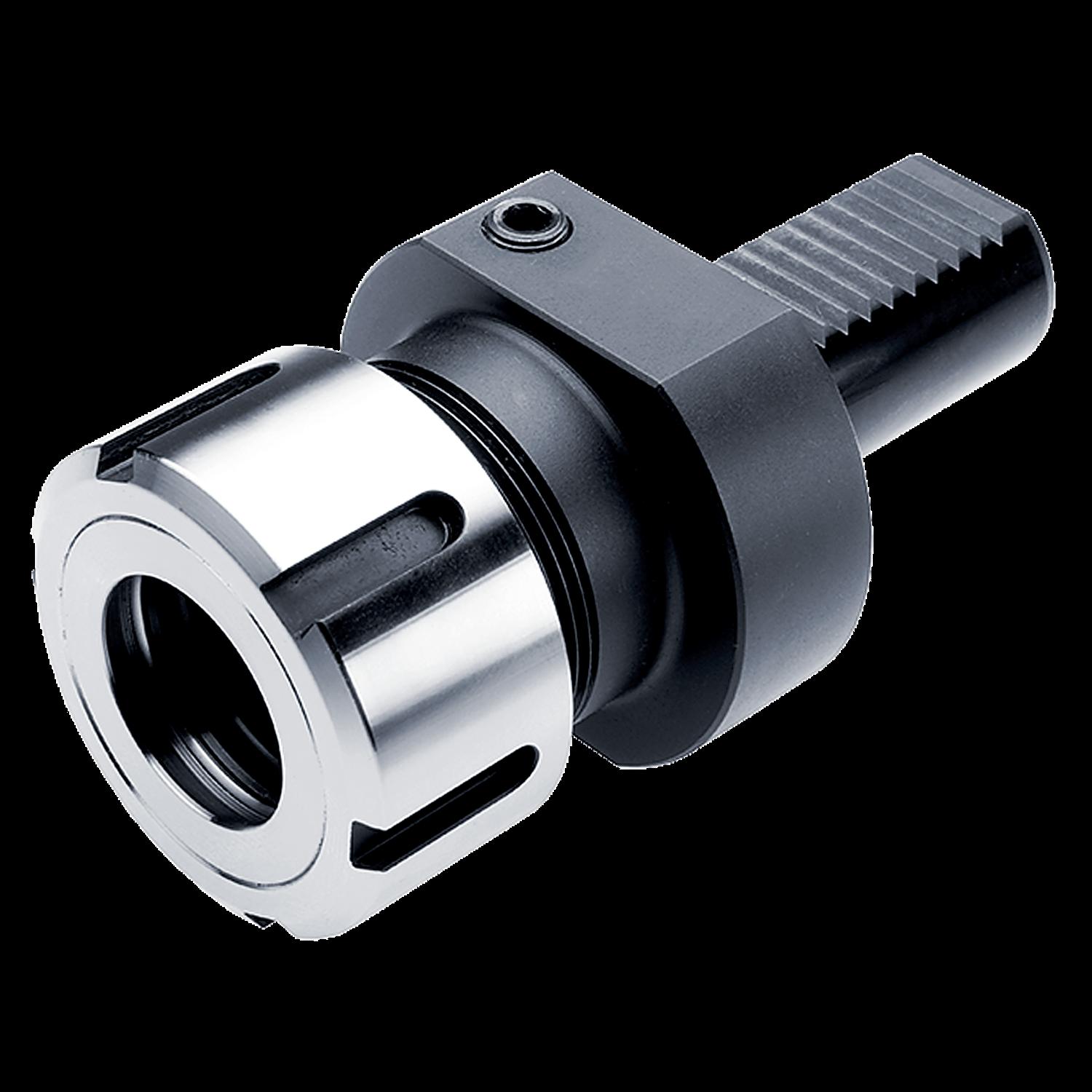

PRAMET VDI.30-E3.OZ25 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603603204508
Product number (SAP): 86029270
Size: 30
ISO: VDI.30-E3.OZ25
Ordering code ANSI: VDI.30-E3.OZ25
Net weight – grams: 1300
Gross weight – grams: 1350
Body diameter – millimeter (BD): 60 mm
Body length – millimeter (LB): 53 mm
Connection bore diameter minimum – millimeter (DCBN): 2 mm
Connection bore diameter maximum – millimeter (DCBX): 25 mm
Connection diameter – millimeter (DCON MS): 30 mm
Connection size Value (CSIZE): 2 – 25 (OZ 25)
Flange diameter – millimeter (DF): 68 mm
Protruding length – millimeter (LPR): 75 mm
