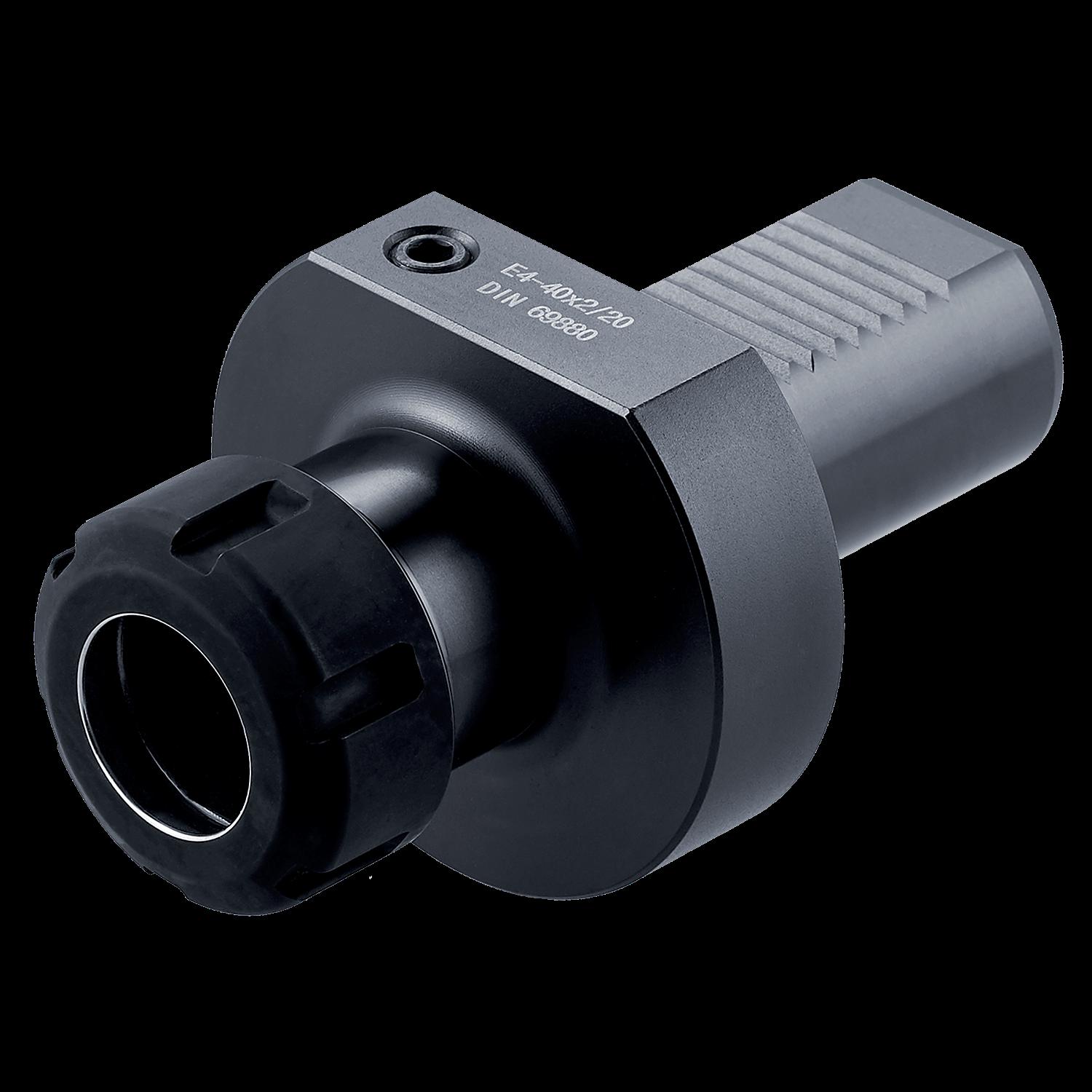

PRAMET VDI.30-E4.ER25 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603603204553
Product number (SAP): 86029275
Size: 30
ISO: VDI.30-E4.ER25
Ordering code ANSI: VDI.30-E4.ER25
Net weight – grams: 901.4
Gross weight – grams: 959.3
Body diameter – millimeter (BD): 42 mm
Body length – millimeter (LB): 35 mm
Connection bore diameter minimum – millimeter (DCBN): 2 mm
Connection bore diameter maximum – millimeter (DCBX): 16 mm
Connection diameter – millimeter (DCON MS): 30 mm
Connection size Value (CSIZE): 2 – 16 (ER 25)
Flange diameter – millimeter (DF): 68 mm
Protruding length – millimeter (LPR): 57 mm
