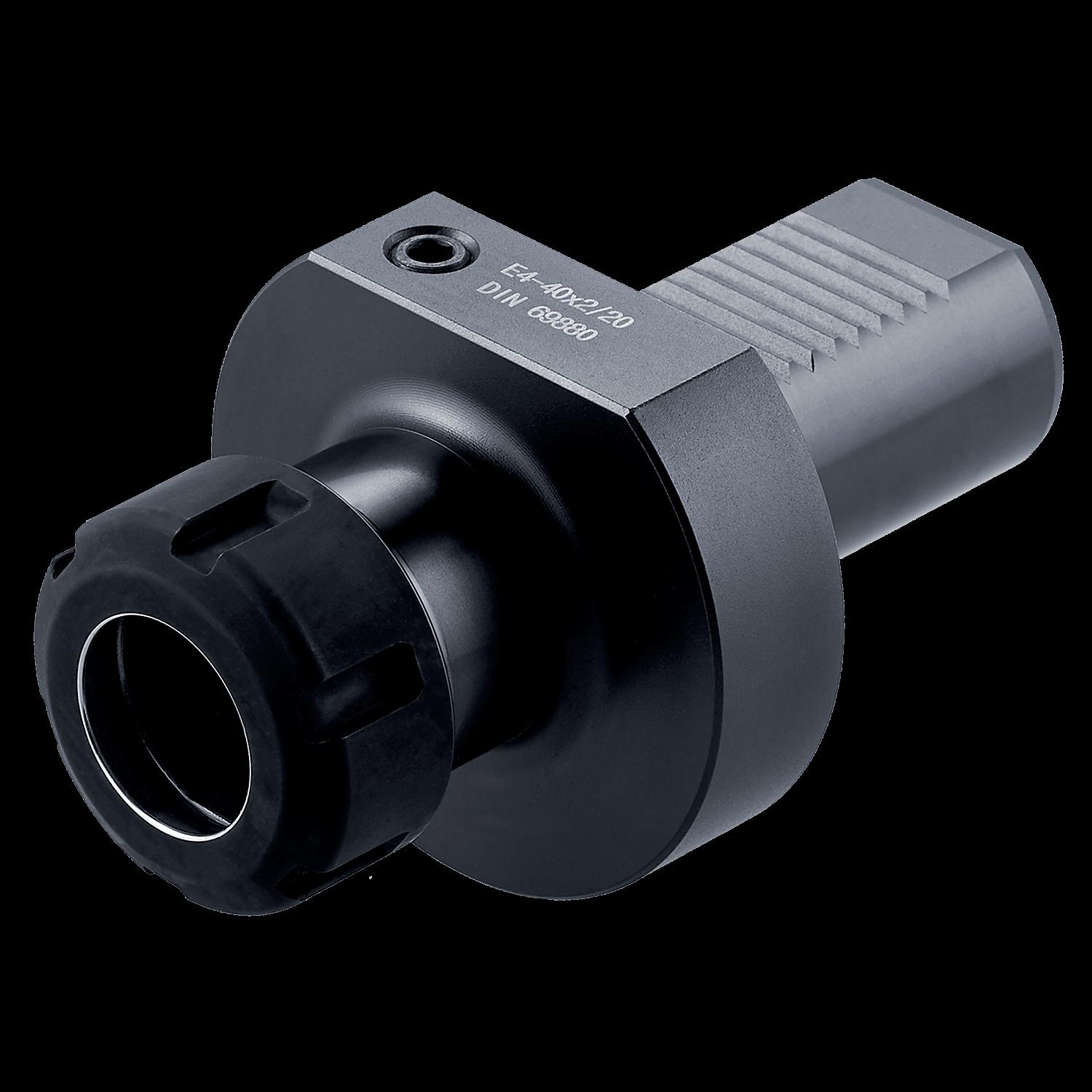

PRAMET VDI.30-E4.ER40 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603603204577
Product number (SAP): 86029277
Size: 30
ISO: VDI.30-E4.ER40
Ordering code ANSI: VDI.30-E4.ER40
Net weight – grams: 1375.2
Gross weight – grams: 1375.2
Body diameter – millimeter (BD): 63 mm
Body length – millimeter (LB): 53 mm
Connection bore diameter minimum – millimeter (DCBN): 3 mm
Connection bore diameter maximum – millimeter (DCBX): 26 mm
Connection diameter – millimeter (DCON MS): 30 mm
Connection size Value (CSIZE): 3 – 26 (ER 40)
Flange diameter – millimeter (DF): 68 mm
Protruding length – millimeter (LPR): 75 mm
