PRAMET VDI.30-HC.16.89 Tooling system

Product Code: VDI.30-HC.16.89

$3,008.12$2,734.65 Ex. GST

Product Code: VDI.30-HC.16.89 SKU VDI.30-HC.16.89 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

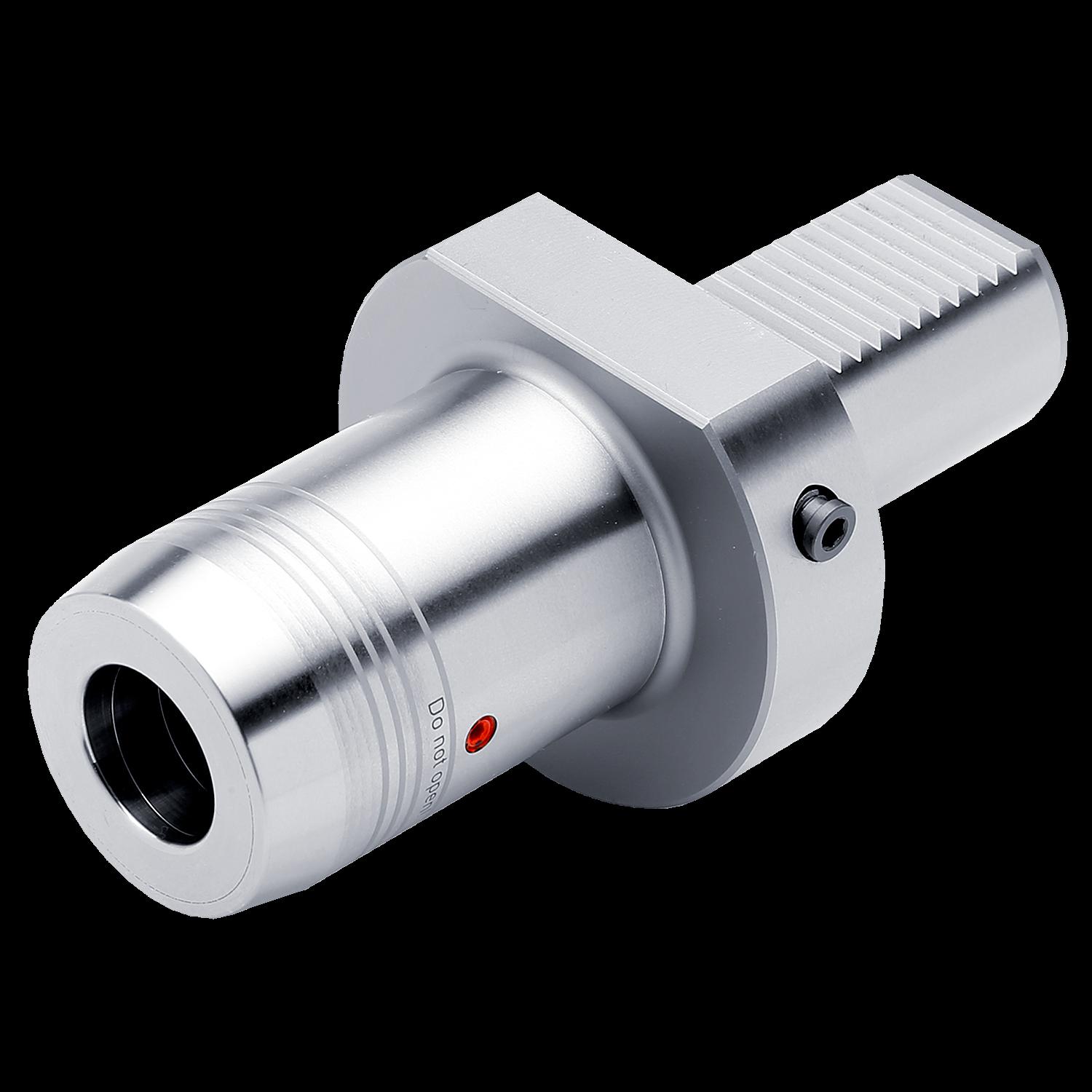

VDI Hydraulic Chuck

Additional information

Weight 2.9205 kg
barcode
Additional Information

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603603205154
Product number (SAP): 86029335
Size: 30
ISO: VDI.30-HC.16.89
Ordering code ANSI: VDI.30-HC.16.89
Net weight – grams: 1500
Gross weight – grams: 1500
Body diameter – millimeter (BD): 38 mm
Body length – millimeter (LB): 73 mm
Connection diameter – millimeter (DCON MS): 30 mm
Connection diameter workpiece side – millimeter (DCON WS): 16 mm
Connection size Value (CSIZE): 30 – 16
Flange diameter – millimeter (DF): 68 mm
Protruding length – millimeter (LPR): 89 mm

Brand

PRAMET
