Description: Value

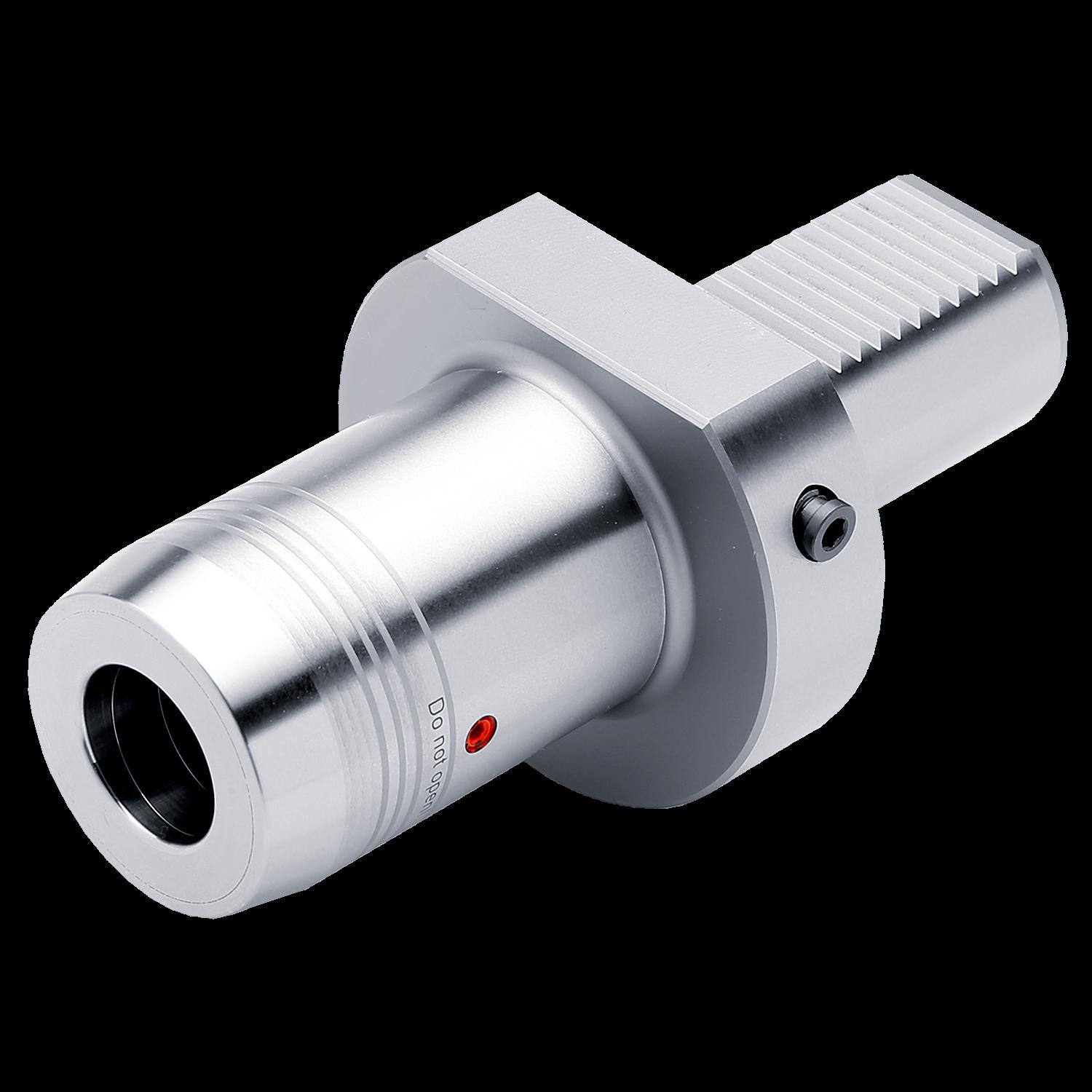

Brand Name: Dormer Pramet
EAN number: 3603603205192
Product number (SAP): 86029339
Size: 30
ISO: VDI.30-HC.32.94
Ordering code ANSI: VDI.30-HC.32.94
Net weight – grams: 1500
Gross weight – grams: 1500
Body diameter – millimeter (BD): 60 mm
Body length – millimeter (LB): 78 mm
Connection diameter – millimeter (DCON MS): 30 mm
Connection diameter workpiece side – millimeter (DCON WS): 32 mm
Connection size Value (CSIZE): 30 – 32
Flange diameter – millimeter (DF): 68 mm
Protruding length – millimeter (LPR): 94 mm
|
