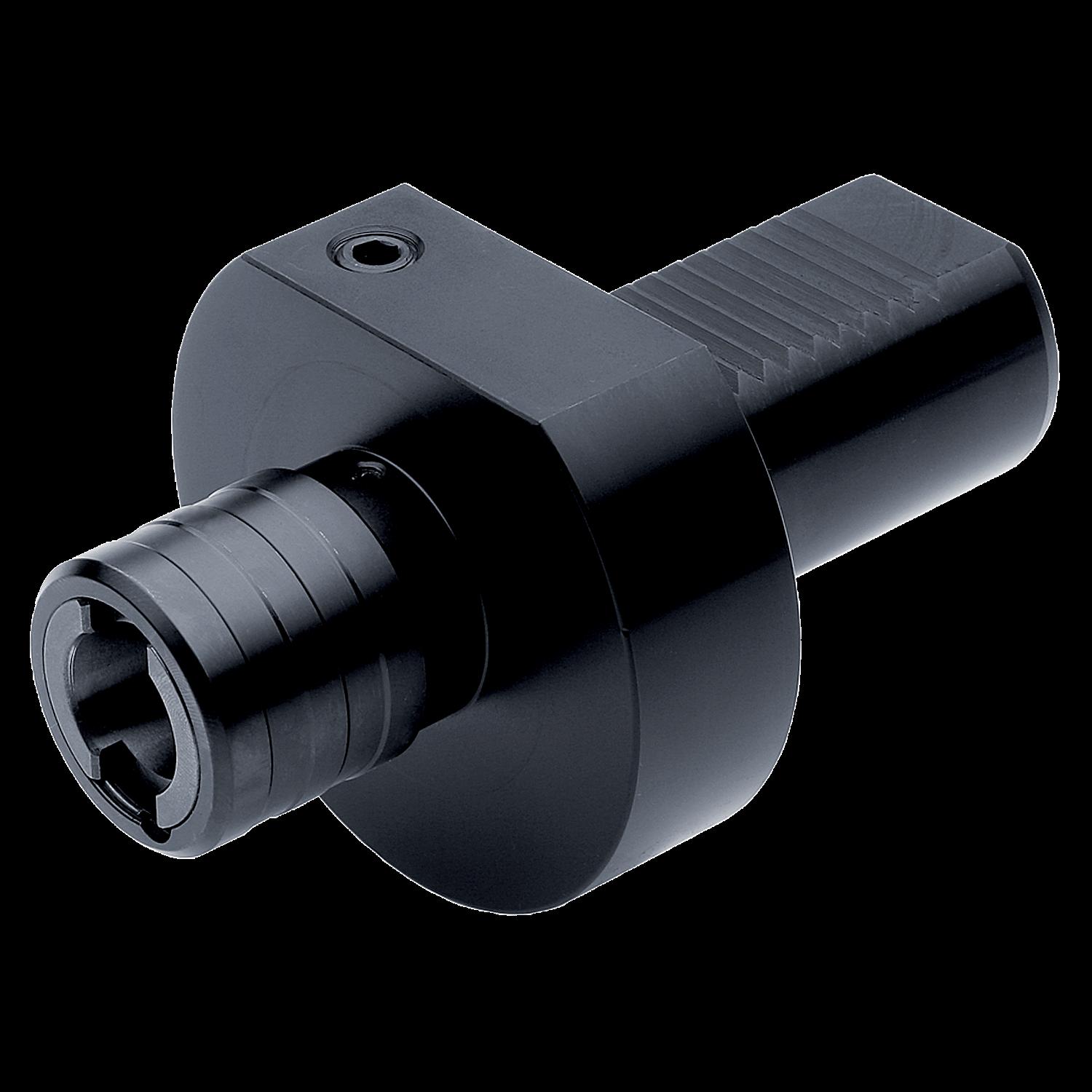

PRAMET VDI.30-QTCC.M3.M14 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603603205574
Product number (SAP): 86029377
Size: 30
ISO: VDI.30-QTCC.M3.M14
Ordering code ANSI: VDI.30-QTCC.M3.M14
Net weight – grams: 836
Gross weight – grams: 915.5
Axial Floating Back – millimeters (FLB): 7 mm
Axial Floating Forward – millimeters (FLF): 7 mm
Body diameter – millimeter (BD): 38 mm
Connection diameter – millimeter (DCON MS): 30 mm
Connection diameter workpiece side – millimeter (DCON WS): 19 mm
Connection size Value (CSIZE): 1
Connection text range workpiece side (CTWS): M3 – M14
Flange diameter – millimeter (DF): 68 mm
Protruding length – millimeter (LPR): 55 mm
