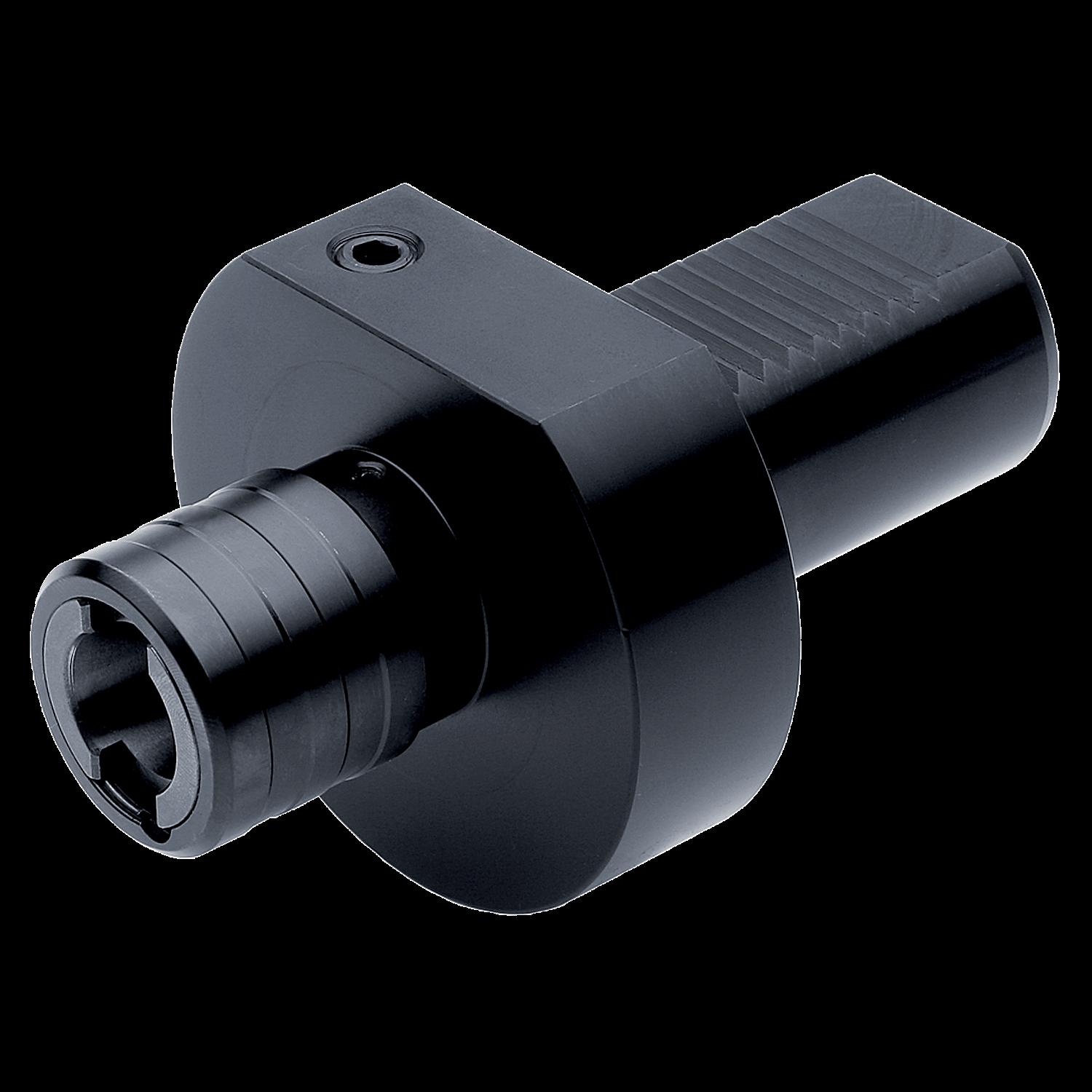

PRAMET VDI.30-QTCC.M5.M22 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603603205581
Product number (SAP): 86029378
Size: 30
ISO: VDI.30-QTCC.M5.M22
Ordering code ANSI: VDI.30-QTCC.M5.M22
Net weight – grams: 1383
Gross weight – grams: 1383
Axial Floating Back – millimeters (FLB): 12 mm
Axial Floating Forward – millimeters (FLF): 12 mm
Body diameter – millimeter (BD): 54 mm
Connection diameter – millimeter (DCON MS): 30 mm
Connection diameter workpiece side – millimeter (DCON WS): 31 mm
Connection size Value (CSIZE): 2
Connection text range workpiece side (CTWS): M5 – M22
Flange diameter – millimeter (DF): 68 mm
Protruding length – millimeter (LPR): 77 mm
