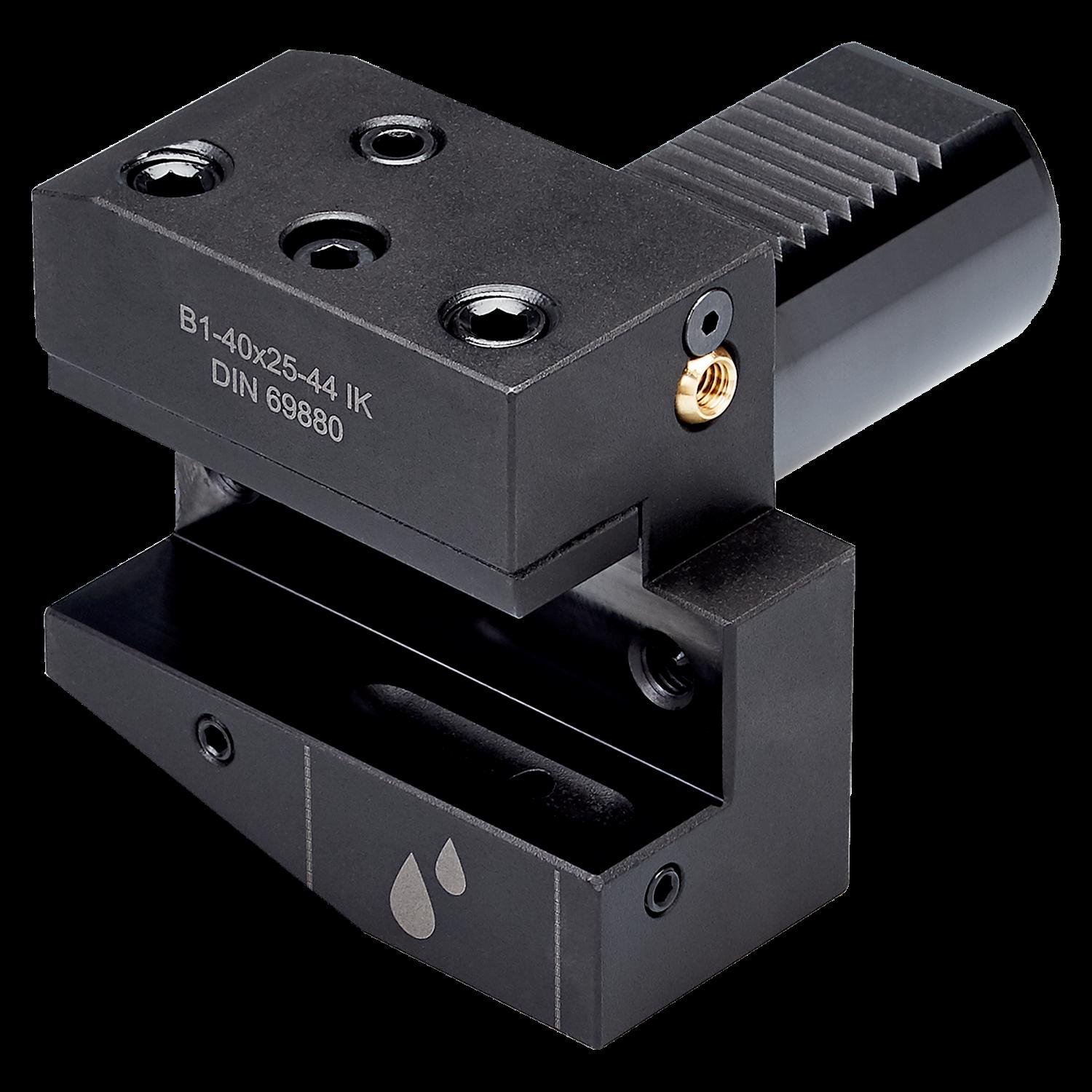

PRAMET VDI.40-B1.25.44.C Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603604032711
Product number (SAP): 86042487
Size: 40
ISO: VDI.40-B1.25.44.C
Ordering code ANSI: VDI.40-B1.25.44.C
Net weight – grams: 2222
Gross weight – grams: 2256
Connection diameter – millimeter (DCON MS): 40 mm
Connection diameter workpiece side – millimeter (DCON WS): 25 mm
Connection size Value (CSIZE): B1 – 40 × 25 × 44
Functional height – millimeter (HF): 25 mm
Functional length – millimeter (LF): 22 mm
Hexagonal clamping nut size – millimeters (SW): 26 mm
Overall height – millimeter (OAH): 80.5 mm
Overall width – millimeters (OAW): 85 mm
Protruding length – millimeter (LPR): 44 mm
