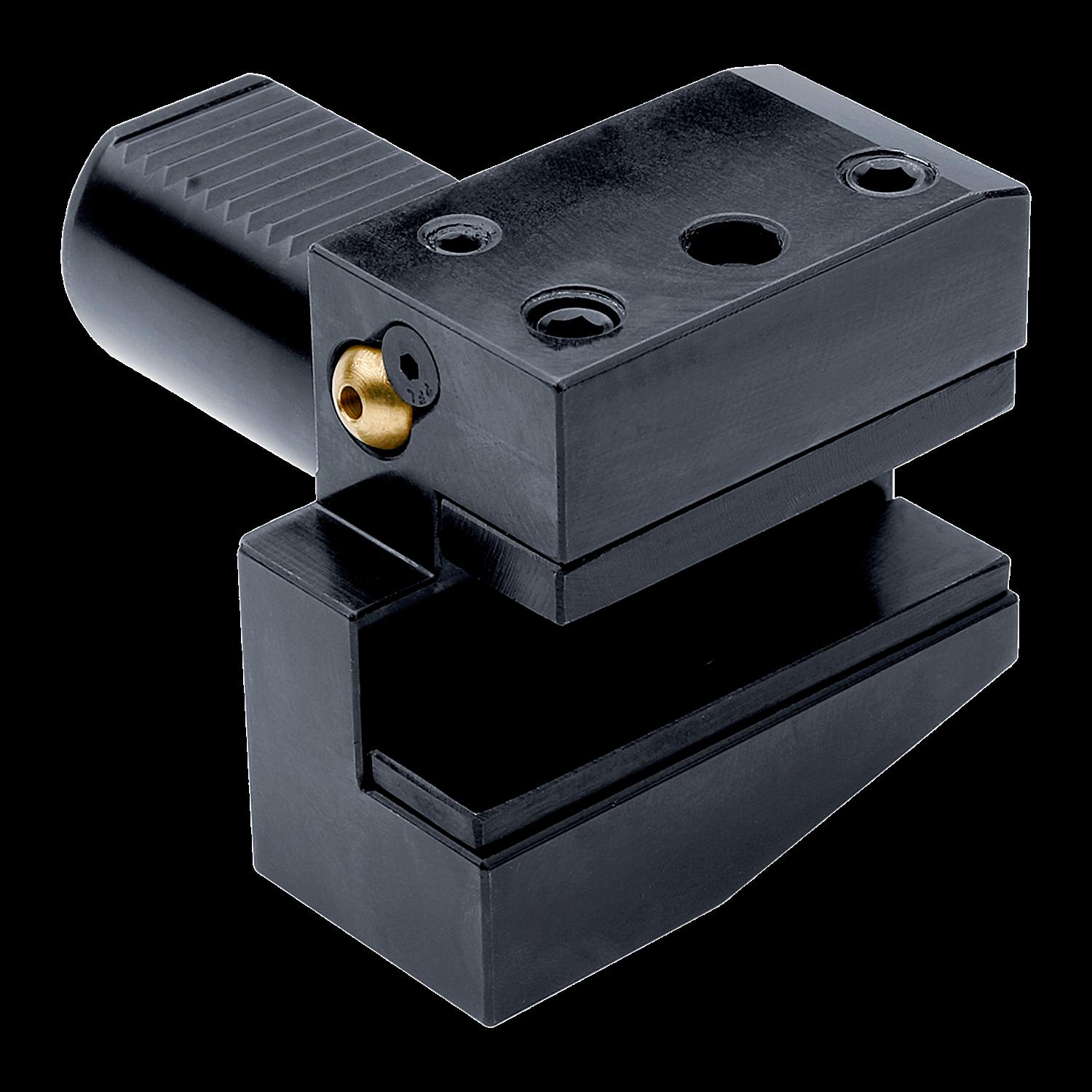

PRAMET VDI.40-B2.25.44 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603603204058
Product number (SAP): 86029225
Size: 40
ISO: VDI.40-B2.25.44
Ordering code ANSI: VDI.40-B2.25.44
Net weight – grams: 2200
Gross weight – grams: 2317.9
Connection diameter – millimeter (DCON MS): 40 mm
Connection size Value (CSIZE): B2 – 40 × 25 × 44
Functional height – millimeter (HF): 25 mm
Functional length – millimeter (LF): 22 mm
Overall height – millimeter (OAH): 80.5 mm
Overall width – millimeters (OAW): 85 mm
Protruding length – millimeter (LPR): 44 mm
Radial body height – millimeters (RADH): 48 mm
Radial body width – millimeters (RADW): 42.5 mm
Radial offset width – millimeters (RADWOF): 12.5 mm
