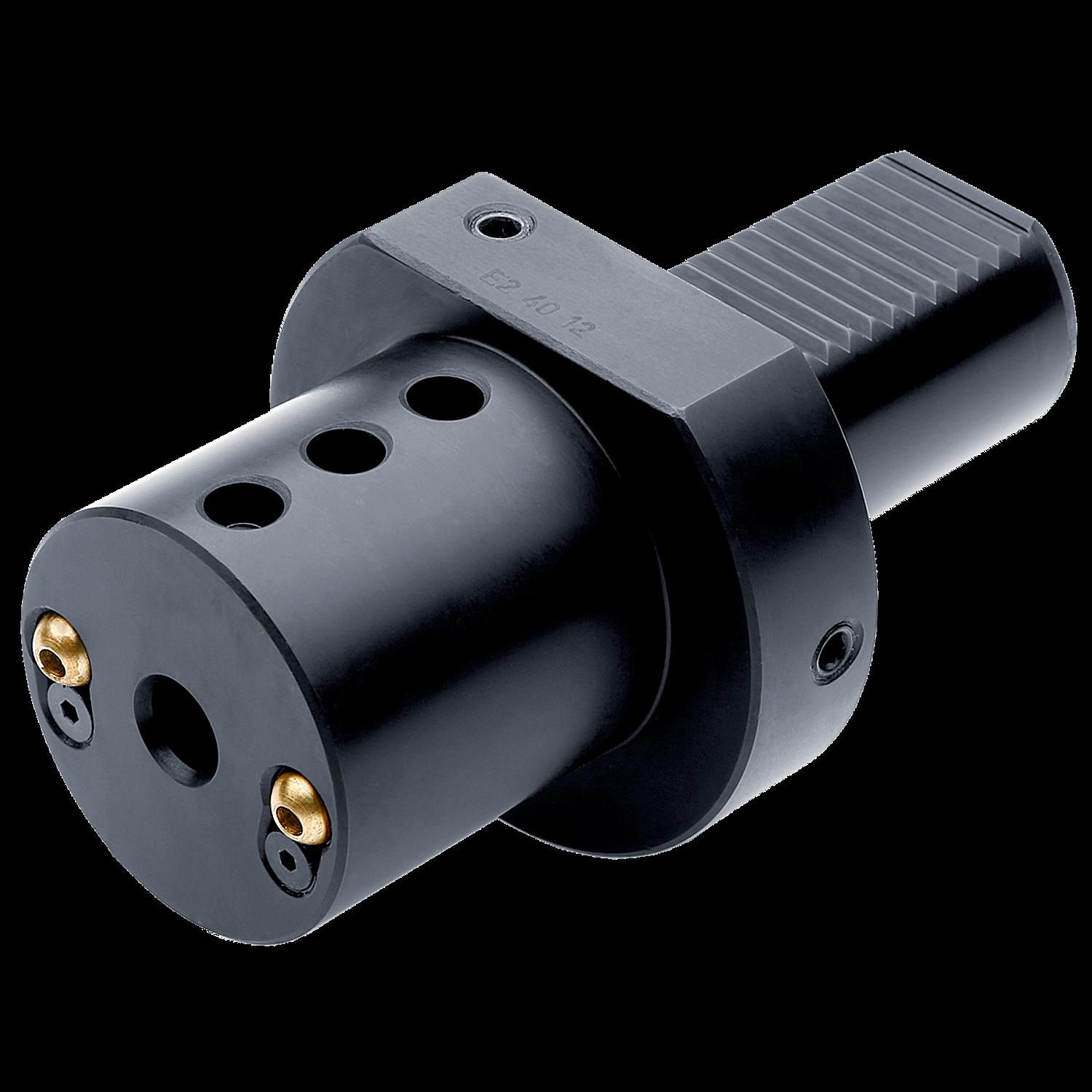

PRAMET VDI.40-E2.32 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603603204911
Product number (SAP): 86029311
Size: 40
ISO: VDI.40-E2.32
Ordering code ANSI: VDI.40-E2.32
Net weight – grams: 3186
Gross weight – grams: 3206.5
Body diameter – millimeter (BD): 83 mm
Body length – millimeter (LB): 53 mm
Connection diameter – millimeter (DCON MS): 40 mm
Connection diameter workpiece side – millimeter (DCON WS): 32 mm
Connection size Value (CSIZE): E2 – 40 × 32
Flange diameter – millimeter (DF): 83 mm
Protruding length – millimeter (LPR): 75 mm
