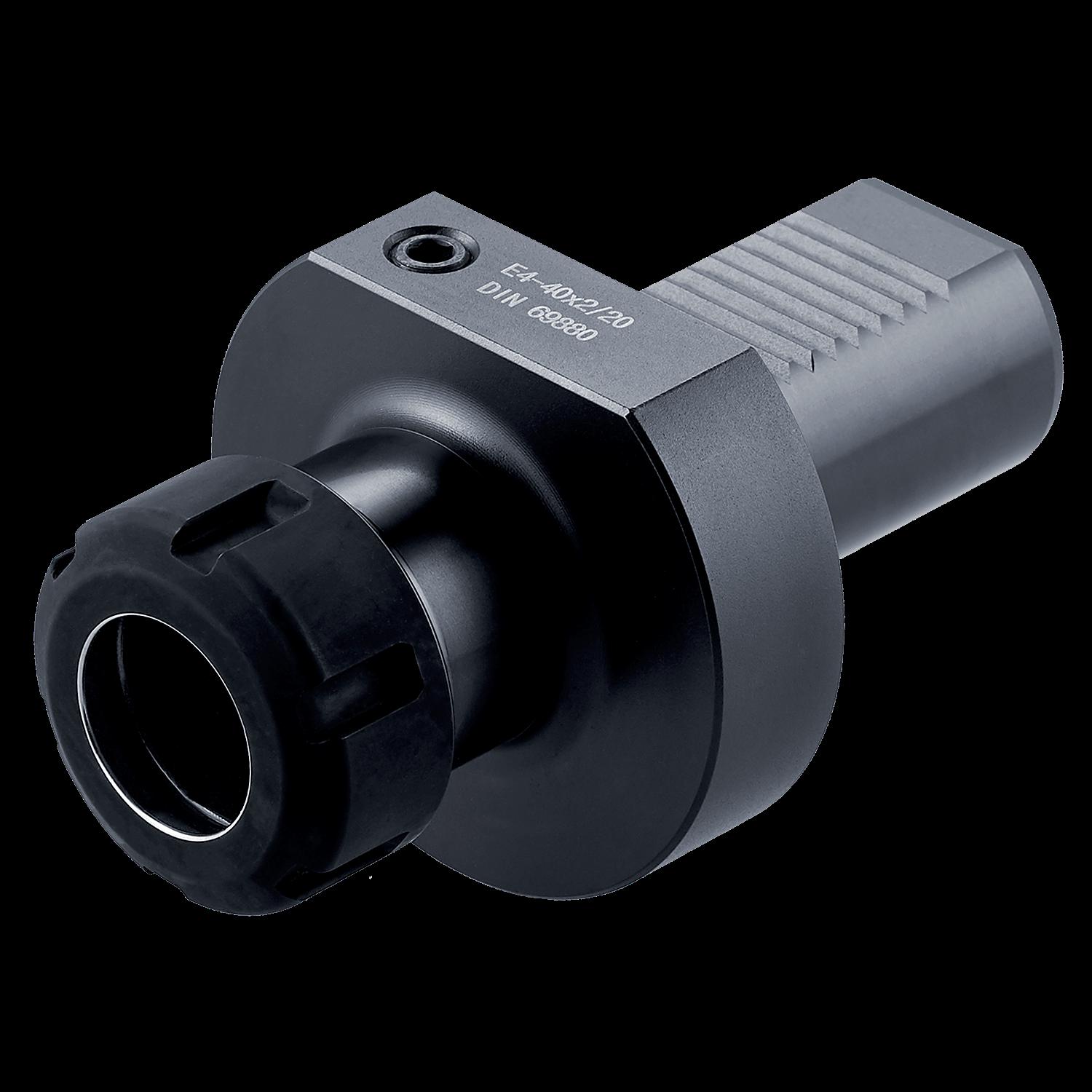

PRAMET VDI.40-E4.ER32 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603603204591
Product number (SAP): 86029279
Size: 40
ISO: VDI.40-E4.ER32
Ordering code ANSI: VDI.40-E4.ER32
Net weight – grams: 1761
Gross weight – grams: 1761
Body diameter – millimeter (BD): 50 mm
Body length – millimeter (LB): 53 mm
Connection bore diameter minimum – millimeter (DCBN): 2 mm
Connection bore diameter maximum – millimeter (DCBX): 20 mm
Connection diameter – millimeter (DCON MS): 40 mm
Connection size Value (CSIZE): 2 – 20 (ER 32)
Flange diameter – millimeter (DF): 83 mm
Protruding length – millimeter (LPR): 75 mm
