Description: Value

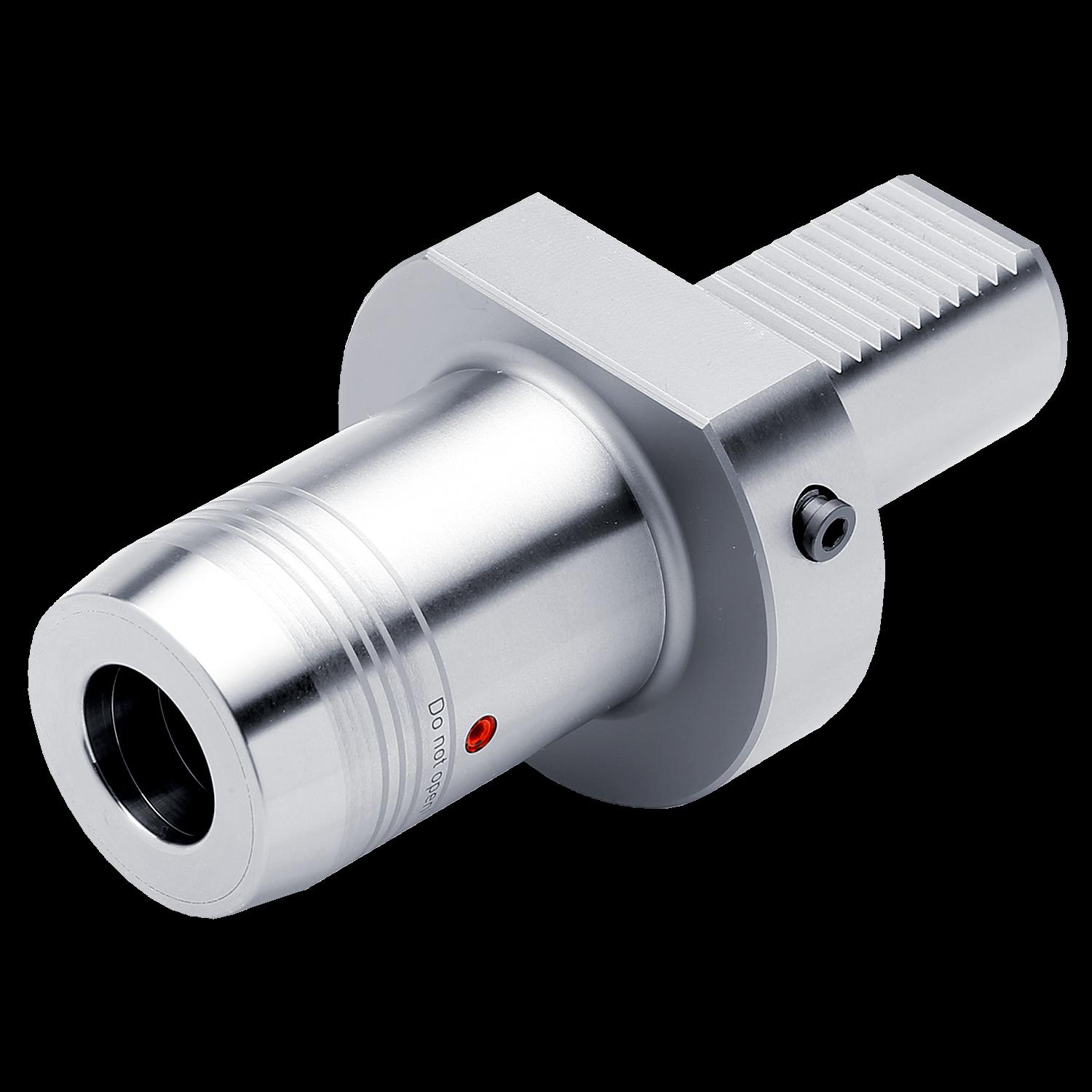

Brand Name: Dormer Pramet
EAN number: 3603603205239
Product number (SAP): 86029343
Size: 40
ISO: VDI.40-HC.12.60
Ordering code ANSI: VDI.40-HC.12.60
Net weight – grams: 2500
Gross weight – grams: 2500
Body diameter – millimeter (BD): 32 mm
Body length – millimeter (LB): 38 mm
Connection diameter – millimeter (DCON MS): 40 mm
Connection diameter workpiece side – millimeter (DCON WS): 12 mm
Connection size Value (CSIZE): 40 – 12
Flange diameter – millimeter (DF): 83 mm
Protruding length – millimeter (LPR): 60 mm
|
