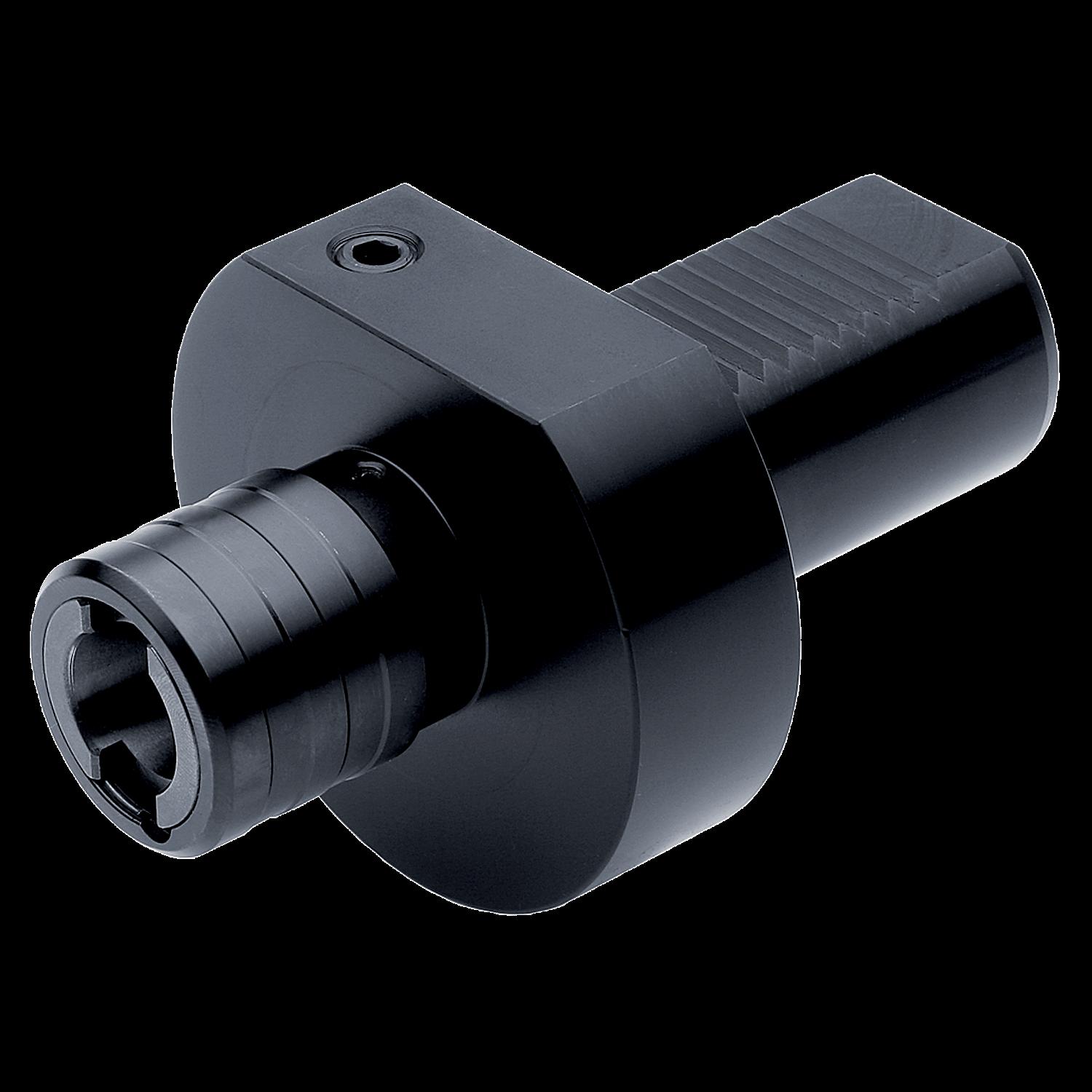

PRAMET VDI.40-QTCC.M5.M22 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603603205604
Product number (SAP): 86029380
Size: 40
ISO: VDI.40-QTCC.M5.M22
Ordering code ANSI: VDI.40-QTCC.M5.M22
Net weight – grams: 1785
Gross weight – grams: 1881.2
Axial Floating Back – millimeters (FLB): 12 mm
Axial Floating Forward – millimeters (FLF): 12 mm
Body diameter – millimeter (BD): 54 mm
Connection diameter – millimeter (DCON MS): 40 mm
Connection diameter workpiece side – millimeter (DCON WS): 31 mm
Connection size Value (CSIZE): 2
Connection text range workpiece side (CTWS): M5 – M22
Flange diameter – millimeter (DF): 83 mm
Protruding length – millimeter (LPR): 77 mm
