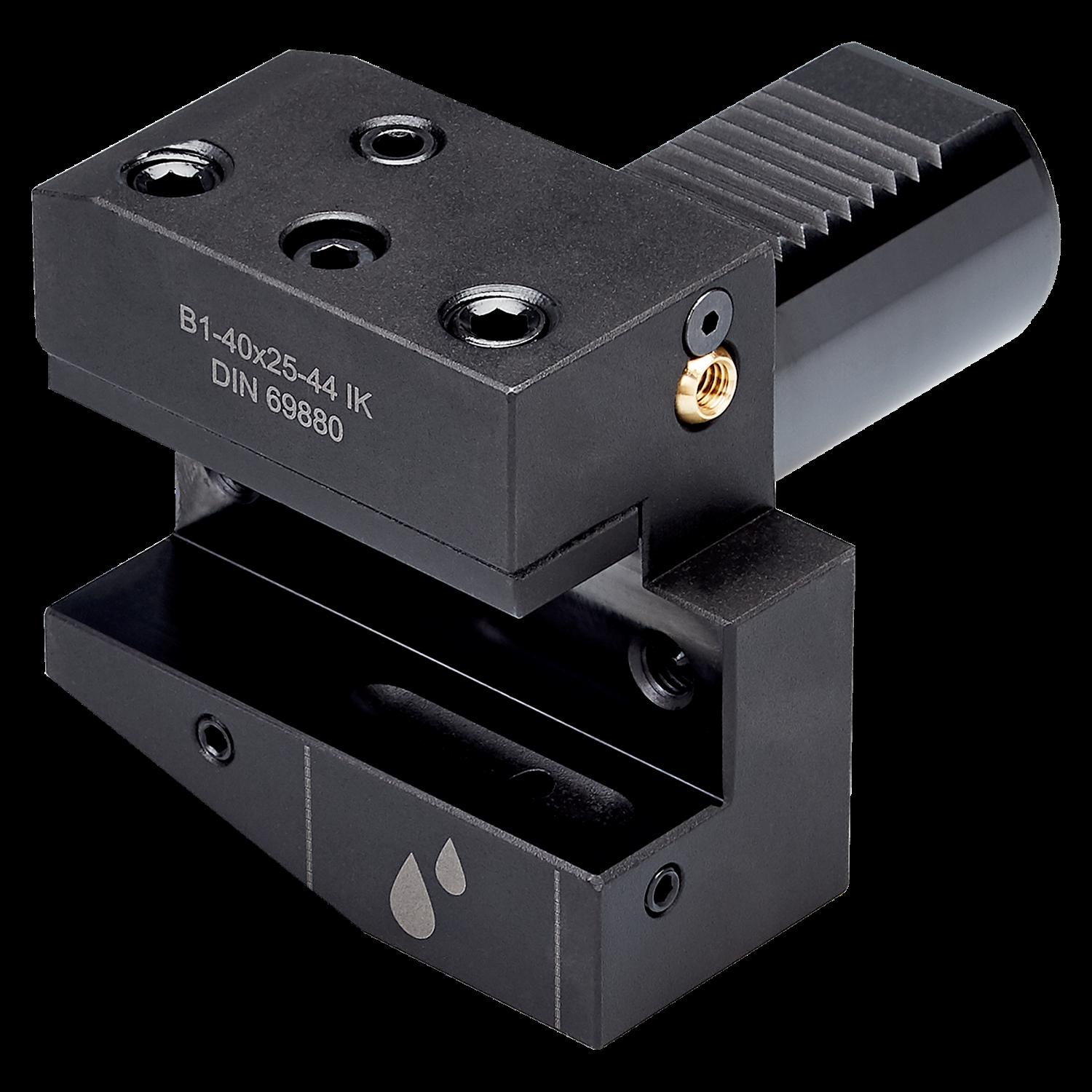

PRAMET VDI.50-B1.32.55.C Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603604032728
Product number (SAP): 86042488
Size: 50
ISO: VDI.50-B1.32.55.C
Ordering code ANSI: VDI.50-B1.32.55.C
Net weight – grams: 4400
Gross weight – grams: 4400
Connection diameter – millimeter (DCON MS): 50 mm
Connection diameter workpiece side – millimeter (DCON WS): 32 mm
Connection size Value (CSIZE): B1 – 50 × 32 × 55
Functional height – millimeter (HF): 32 mm
Functional length – millimeter (LF): 30 mm
Hexagonal clamping nut size – millimeters (SW): 26 mm
Overall height – millimeter (OAH): 95 mm
Overall width – millimeters (OAW): 100 mm
Protruding length – millimeter (LPR): 55 mm
