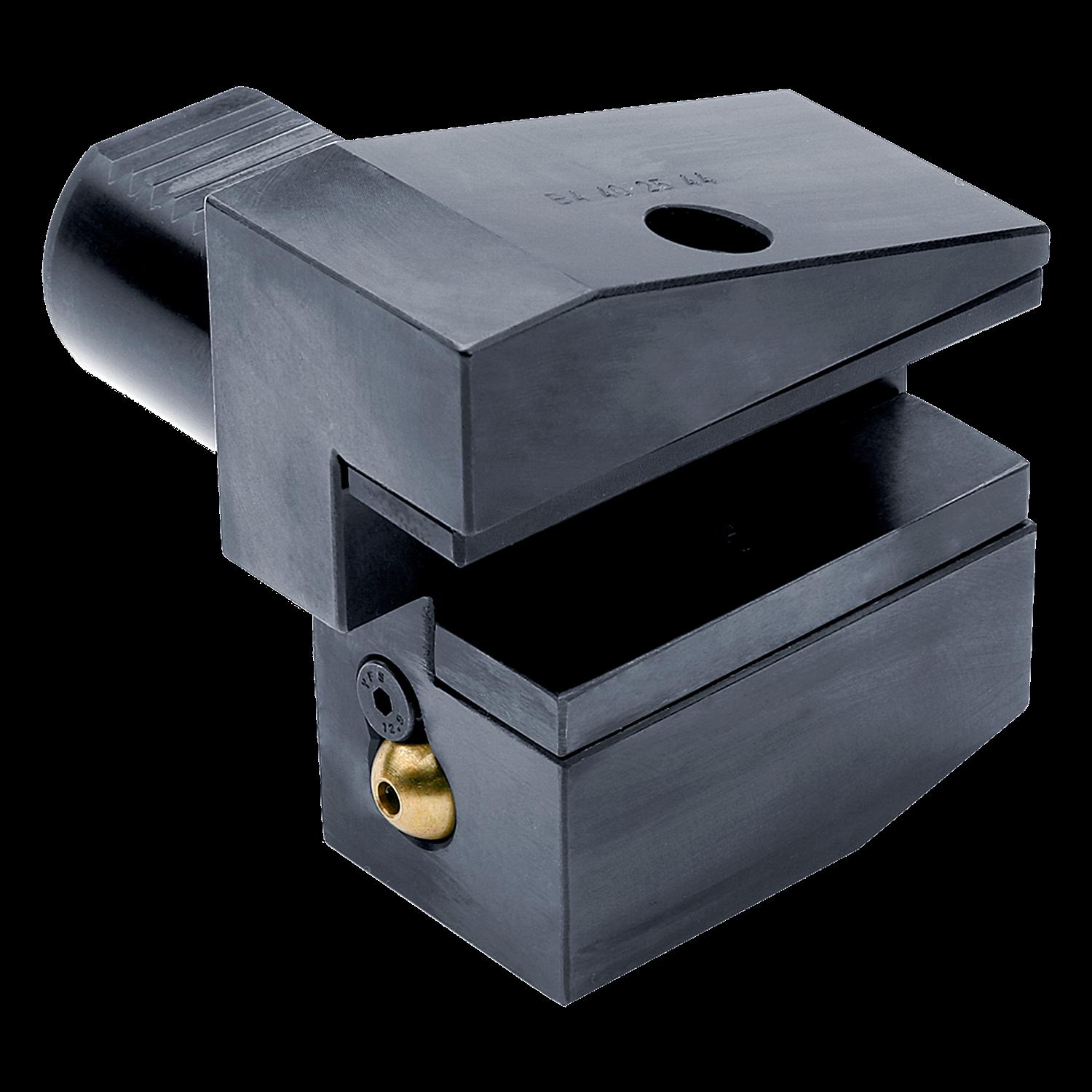

PRAMET VDI.50-B4.32.55 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603603204126
Product number (SAP): 86029232
Size: 50
ISO: VDI.50-B4.32.55
Ordering code ANSI: VDI.50-B4.32.55
Net weight – grams: 4400
Gross weight – grams: 4400
Connection diameter – millimeter (DCON MS): 50 mm
Connection size Value (CSIZE): B4 – 50 × 32 × 55
Functional height – millimeter (HF): 32 mm
Functional length – millimeter (LF): 30 mm
Overall height – millimeter (OAH): 110 mm
Overall width – millimeters (OAW): 100 mm
Protruding length – millimeter (LPR): 55 mm
Radial body height – millimeters (RADH): 60 mm
Radial body width – millimeters (RADW): 50 mm
Radial offset width – millimeters (RADWOF): 16 mm
