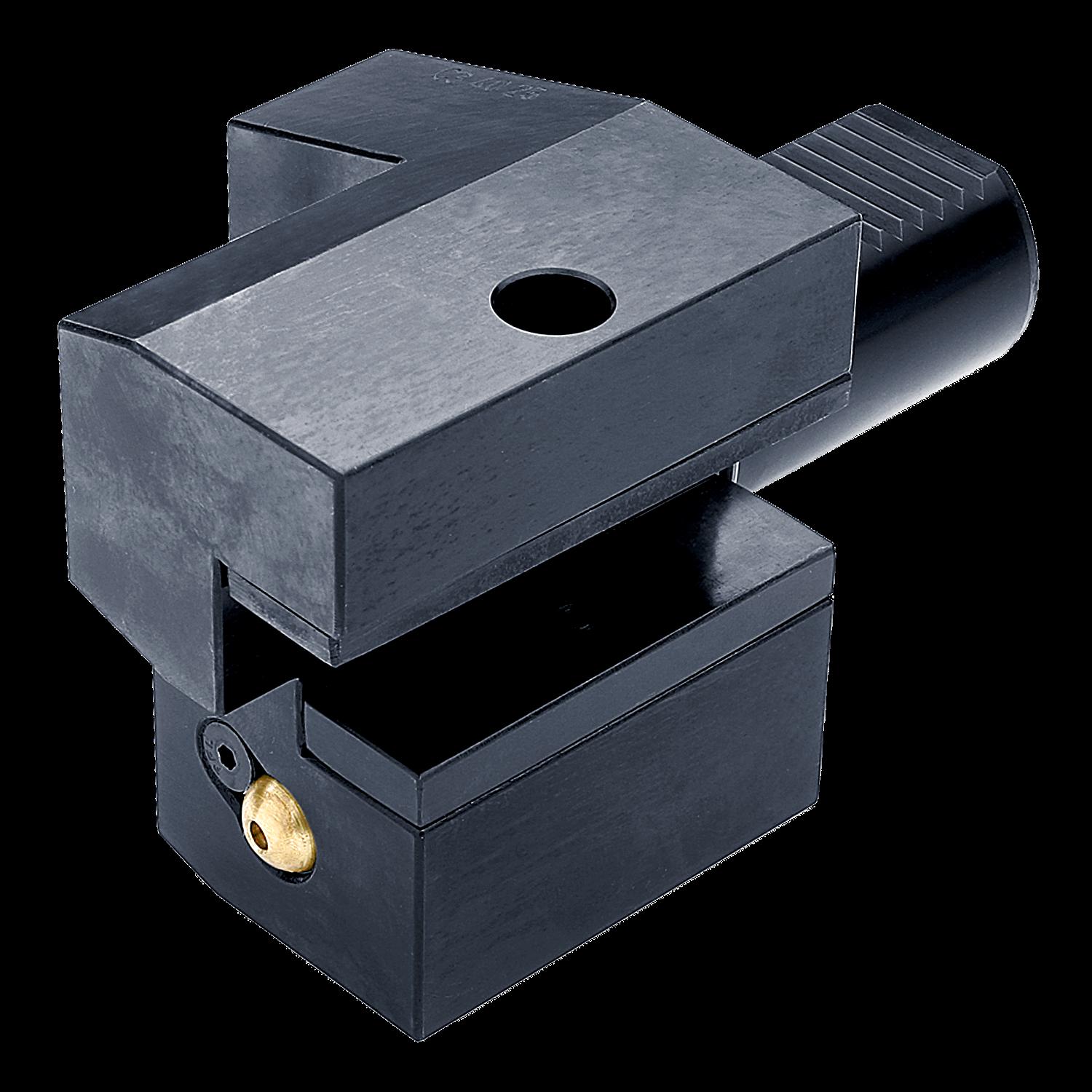

PRAMET VDI.50-C3.32 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603603204331
Product number (SAP): 86029253
Size: 50
ISO: VDI.50-C3.32
Ordering code ANSI: VDI.50-C3.32
Net weight – grams: 5982
Gross weight – grams: 6095
Connection diameter – millimeter (DCON MS): 50 mm
Connection size Value (CSIZE): C3 – 50 × 32
Functional height – millimeter (HF): 32 mm
Functional length – millimeter (LF): 26 mm
Overall height – millimeter (OAH): 110 mm
Overall width – millimeters (OAW): 100 mm
Protruding length – millimeter (LPR): 100 mm
Radial body height – millimeters (RADH): 50 mm
Radial body width – millimeters (RADW): 50 mm
Radial offset width – millimeters (RADWOF): 16 mm
