PRAMET VDI.50-E1.40 Tooling system

Product Code: VDI.50-E1.40

$390.89$355.35 Ex. GST

Product Code: VDI.50-E1.40 SKU VDI.50-E1.40 Categories CUTTING TOOLS (HSS & Carbide), Holding, N1 - Tooling system

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

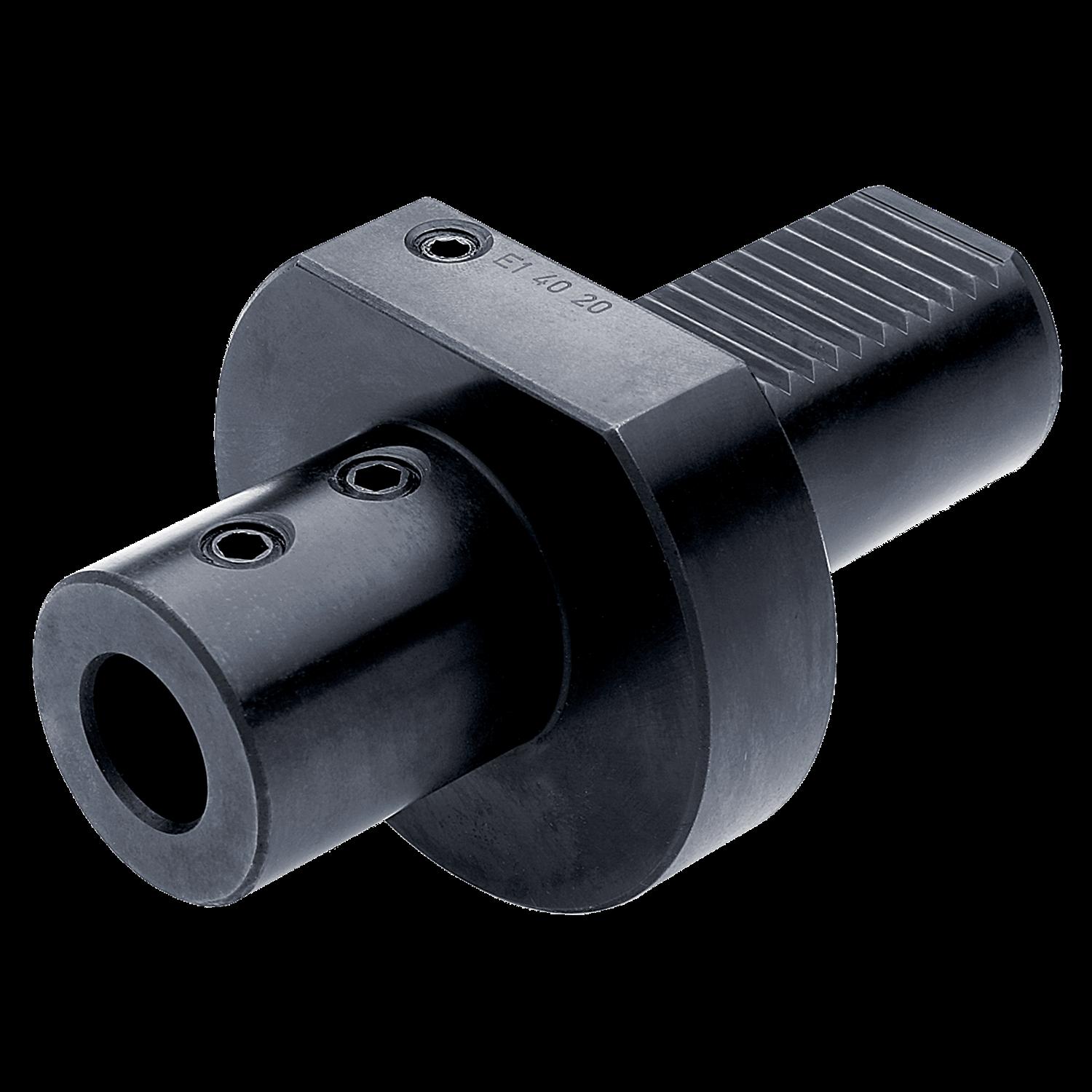

VDI Holder Form E1 for Drills With Indexable Inserts

Weight	0.3795 kg
barcode
Additional Information	Description: Value Brand Name: Dormer Pramet EAN number: 3603603204768 Product number (SAP): 86029296 Size: 50 ISO: VDI.50-E1.40 Ordering code ANSI: VDI.50-E1.40 Net weight – grams: 3546 Gross weight – grams: 3596.4 Body diameter – millimeter (BD): 65 mm Body length – millimeter (LB): 60 mm Connection diameter – millimeter (DCON MS): 50 mm Connection diameter workpiece side – millimeter (DCON WS): 40 mm Connection size Value (CSIZE): E1 – 50 × 40 Flange diameter – millimeter (DF): 98 mm Protruding length – millimeter (LPR): 90 mm
