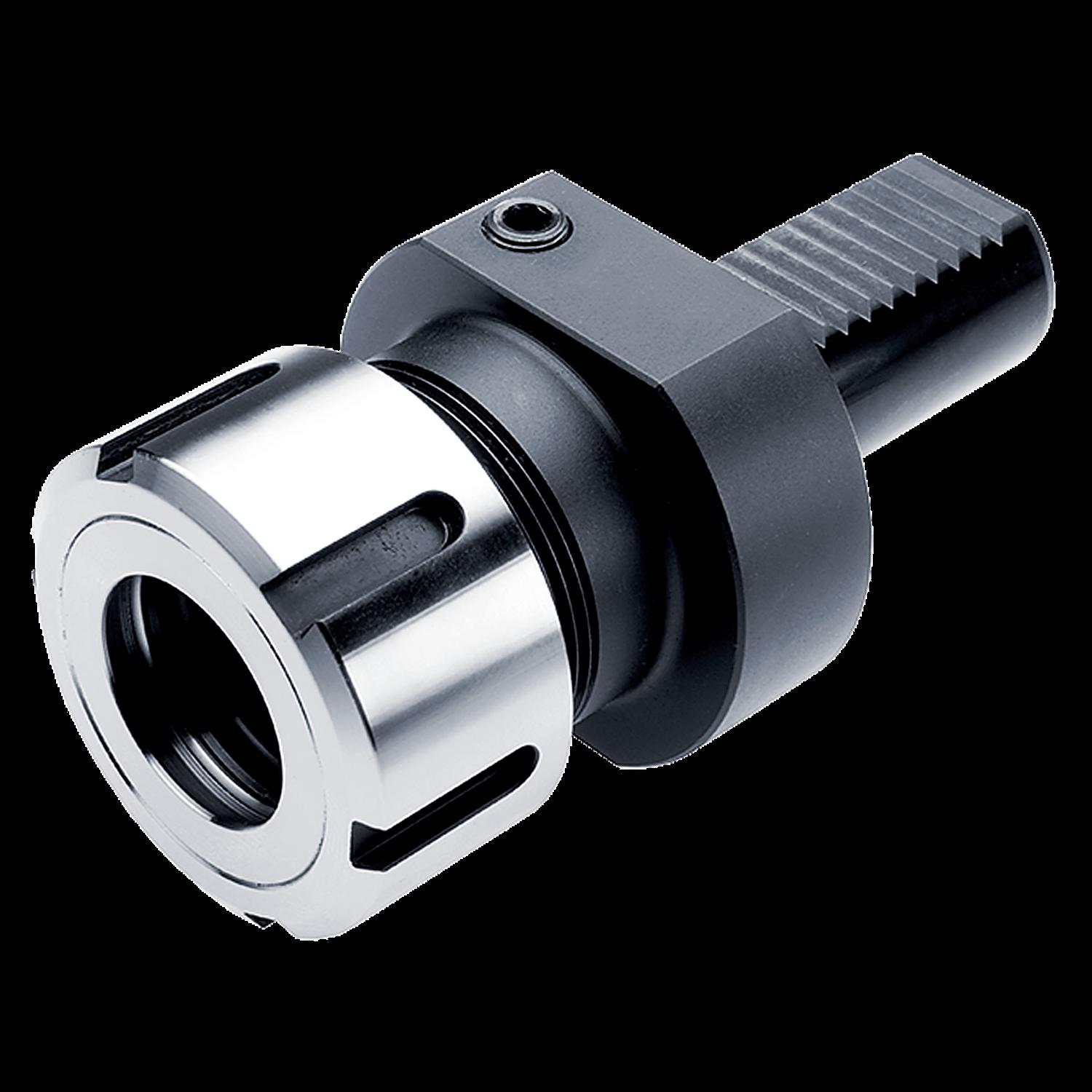

PRAMET VDI.50-E3.OZ32 Tooling system

Description: Value
Brand Name: Dormer Pramet
EAN number: 3603603204546
Product number (SAP): 86029274
Size: 50
ISO: VDI.50-E3.OZ32
Ordering code ANSI: VDI.50-E3.OZ32
Net weight – grams: 3316.5
Gross weight – grams: 3462.5
Body diameter – millimeter (BD): 72 mm
Body length – millimeter (LB): 60 mm
Connection bore diameter minimum – millimeter (DCBN): 3 mm
Connection bore diameter maximum – millimeter (DCBX): 32 mm
Connection diameter – millimeter (DCON MS): 50 mm
Connection size Value (CSIZE): 3 – 32 (OZ 32)
Flange diameter – millimeter (DF): 98 mm
Protruding length – millimeter (LPR): 90 mm
