Description: Value
Brand Name: Dormer Pramet
EAN number: 3603603205345
Product number (SAP): 86029354
Size: 50

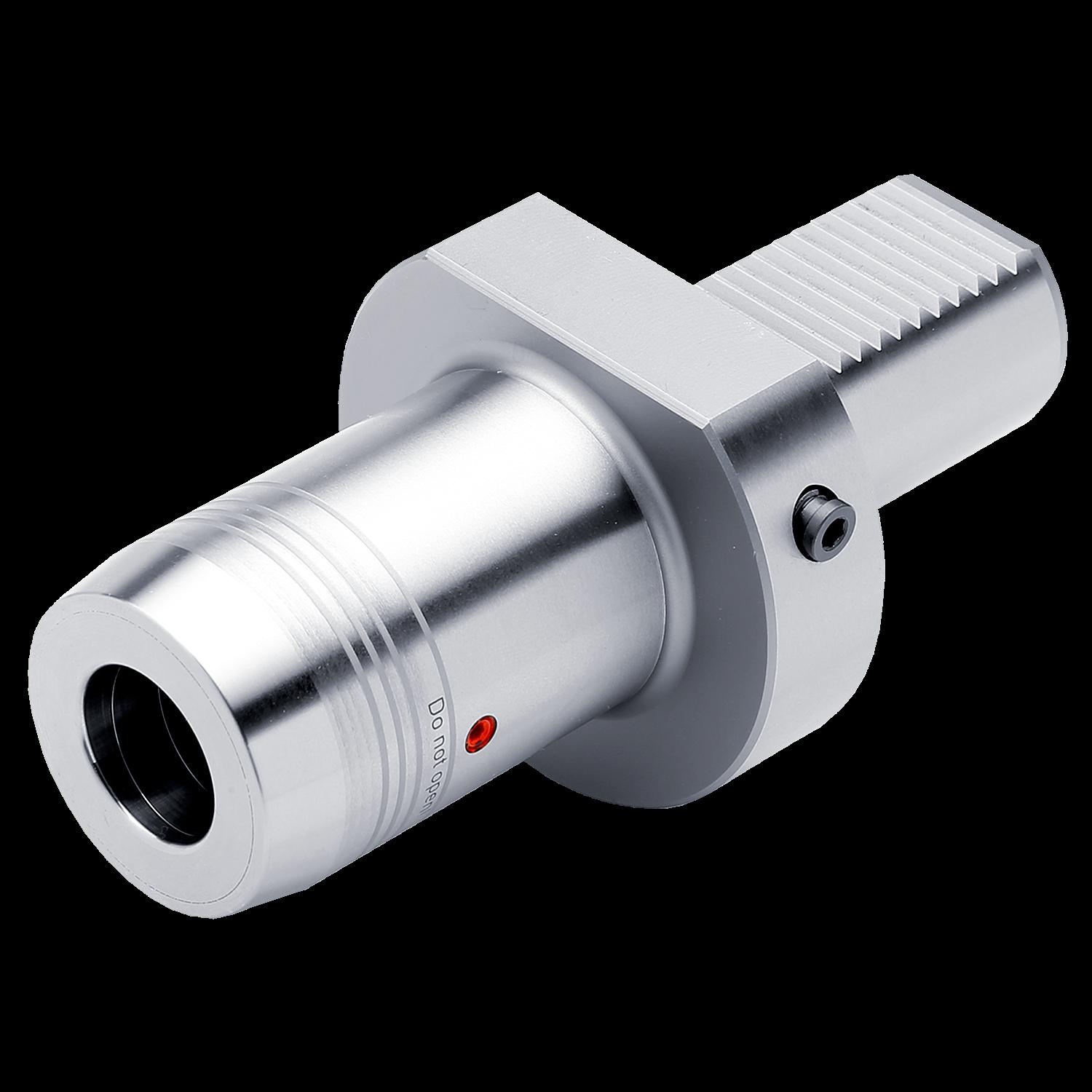

ISO: VDI.50-HC.14.60
Ordering code ANSI: VDI.50-HC.14.60
Net weight – grams: 3500
Gross weight – grams: 3500
Body diameter – millimeter (BD): 34 mm
Body length – millimeter (LB): 38 mm
Connection diameter – millimeter (DCON MS): 50 mm
Connection diameter workpiece side – millimeter (DCON WS): 14 mm
Connection size Value (CSIZE): 50 – 14
Flange diameter – millimeter (DF): 98 mm
Protruding length – millimeter (LPR): 60 mm
|
