Description: Value

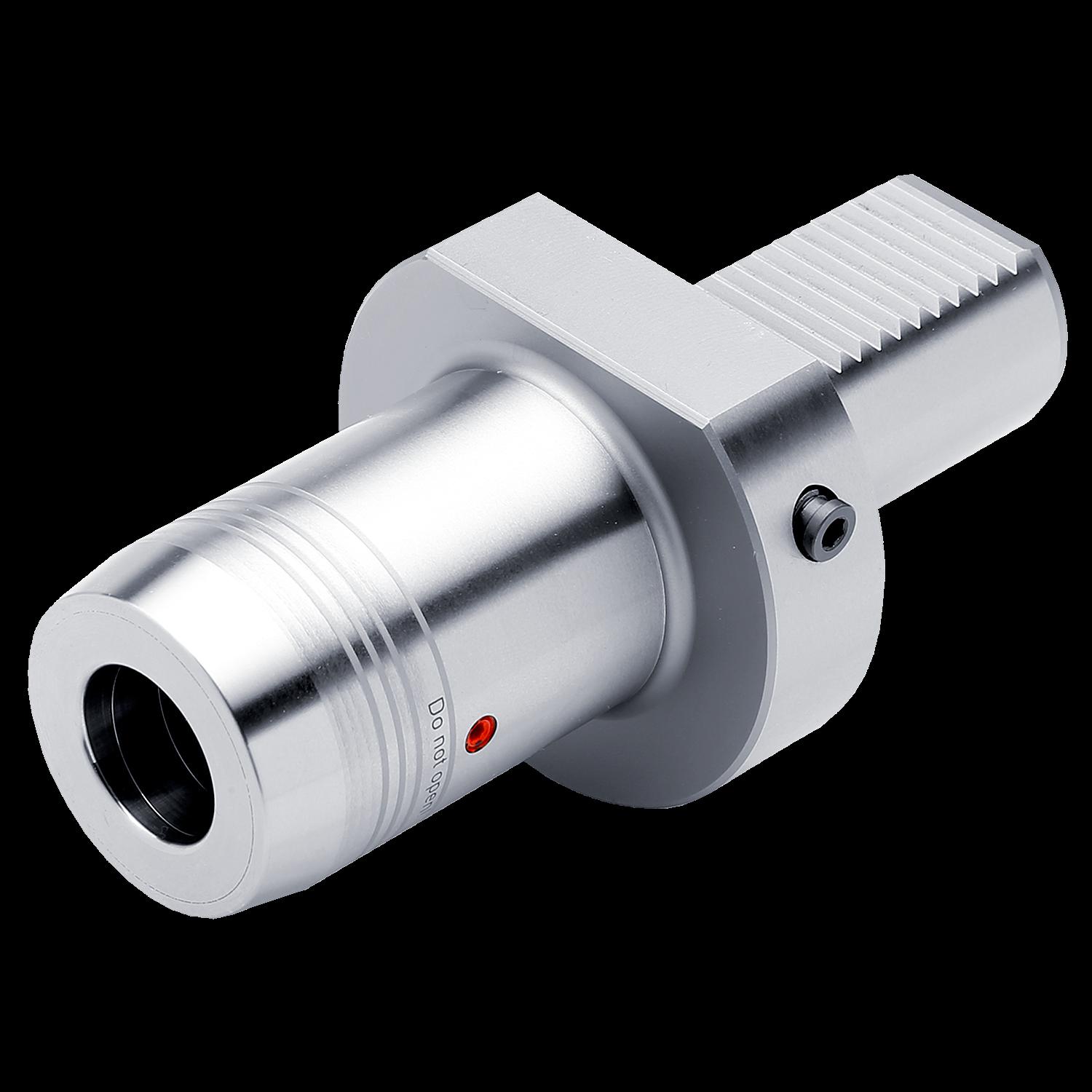

Brand Name: Dormer Pramet
EAN number: 3603603205352
Product number (SAP): 86029355
Size: 50
ISO: VDI.50-HC.16.95
Ordering code ANSI: VDI.50-HC.16.95
Net weight – grams: 3500
Gross weight – grams: 3500
Body diameter – millimeter (BD): 38 mm
Body length – millimeter (LB): 65 mm
Connection diameter – millimeter (DCON MS): 50 mm
Connection diameter workpiece side – millimeter (DCON WS): 16 mm
Connection size Value (CSIZE): 50 – 16
Flange diameter – millimeter (DF): 98 mm
Protruding length – millimeter (LPR): 95 mm
|
