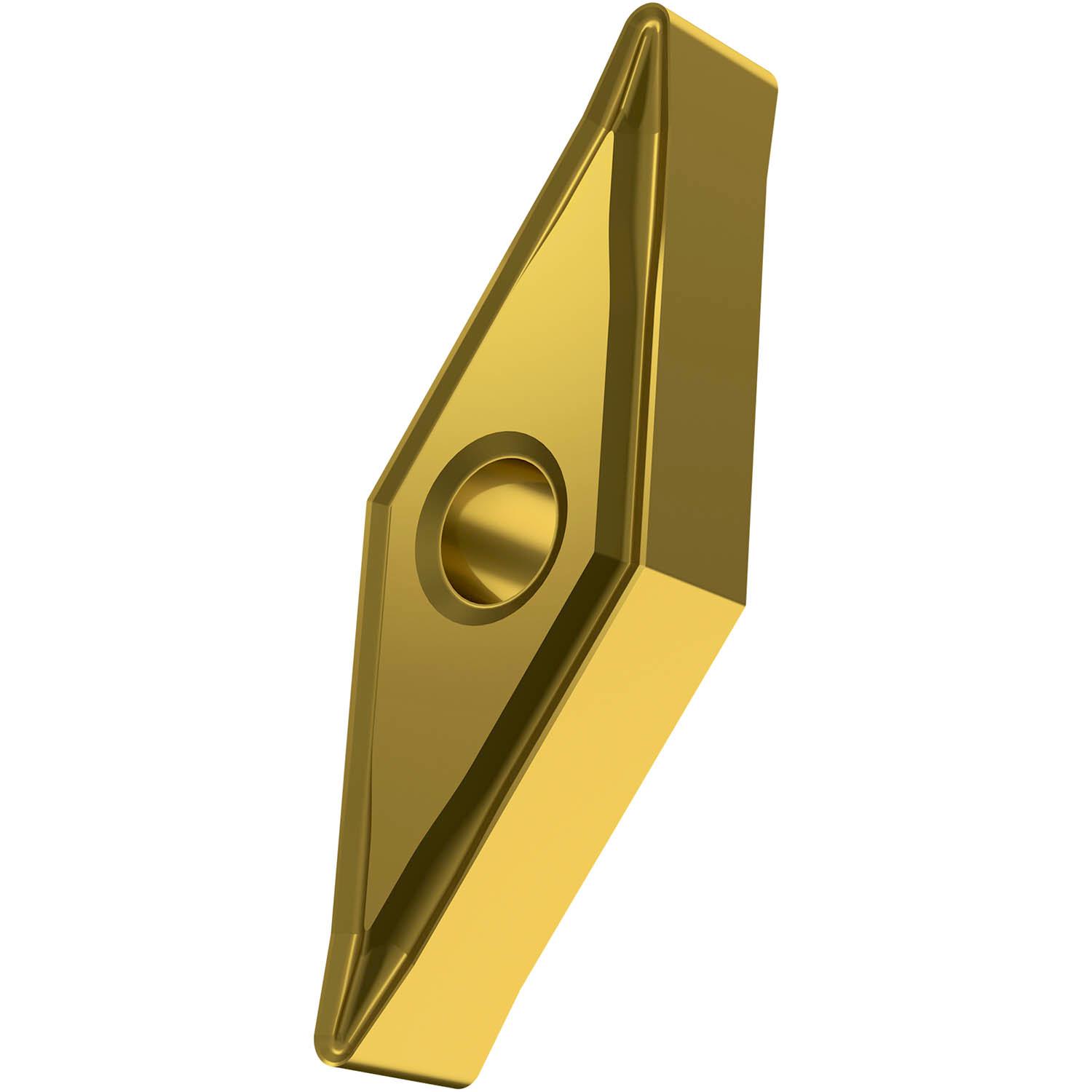

PRAMET VNMG 160408E-NF:T8315 Turning inserts negative

Description: Value
EAN number: 3603603012844
Product number (SAP): 80025502
Ordering code ANSI: VNMG 332-NF:T8315
Gross weight – grams: 9.425
Inscribed circle diameter – millimeter (IC): 9.525 mm
Fixing hole diameter – millimeter (D1): 3.81 mm
Cutting edge length – millimeter (L): 16.6 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: T8315
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: N 0°
Insert Design: VNMG
Insert size: 16
Insert Thickness: 04
Insert Type: G
Chipbreaker manufacturer's designation (CBMD): NF
Insert shape code (SC): V – rhombic 35° included angle
Tool Design: VN
Insert Geometry: Negative
ISO: VNMG160408E-NF:T8315
