PRAMET WCGT 020102E-FF2:TT010 Turning inserts positive

Description

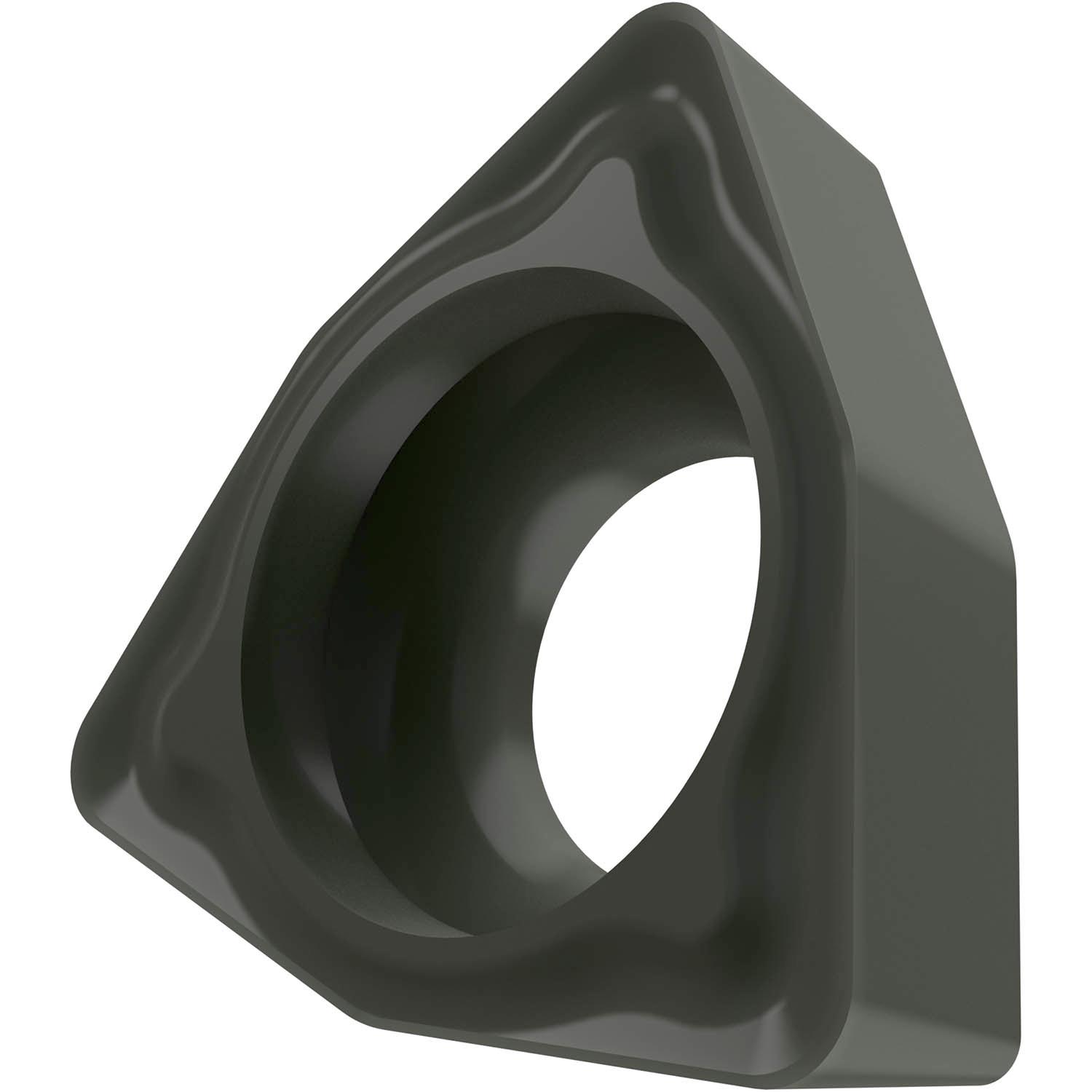

Single-sided positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 3.97mm, 1.59mm thick, 0.2mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker FF2 with rounded cutting edges, in grade TT010, an uncoated cermet within ISO range P01 -P10, for fine to medium machining of steels

Additional information

Weight	0.0202 kg
barcode
Additional Information	Description: Value EAN number: 3603602916785 Product number (SAP): 80023732 Ordering code ANSI: WCGT 1.210.5-FF2:TT010 Gross weight – grams: 0.102 Inscribed circle diameter – millimeter (IC): 3.97 mm Fixing hole diameter – millimeter (D1): 2.2 mm Cutting edge length – millimeter (L): 2.7 mm Insert thickness – millimeter (S): 1.59 mm Grade: TT010 Corner radius – millimeter (RE): 0.2 mm Insert Clearance Code and Angle: C 7° Insert Design: WCGT Insert size: 02 Insert Thickness: 01 Insert Type: T Chipbreaker manufacturer's designation (CBMD): FF2 Insert shape code (SC): W – trigon Tool Design: WC Insert Geometry: Positive ISO: WCGT020102E-FF2:TT010

Need Technical Advice?

Description

Additional information

Brand

PRAMET
