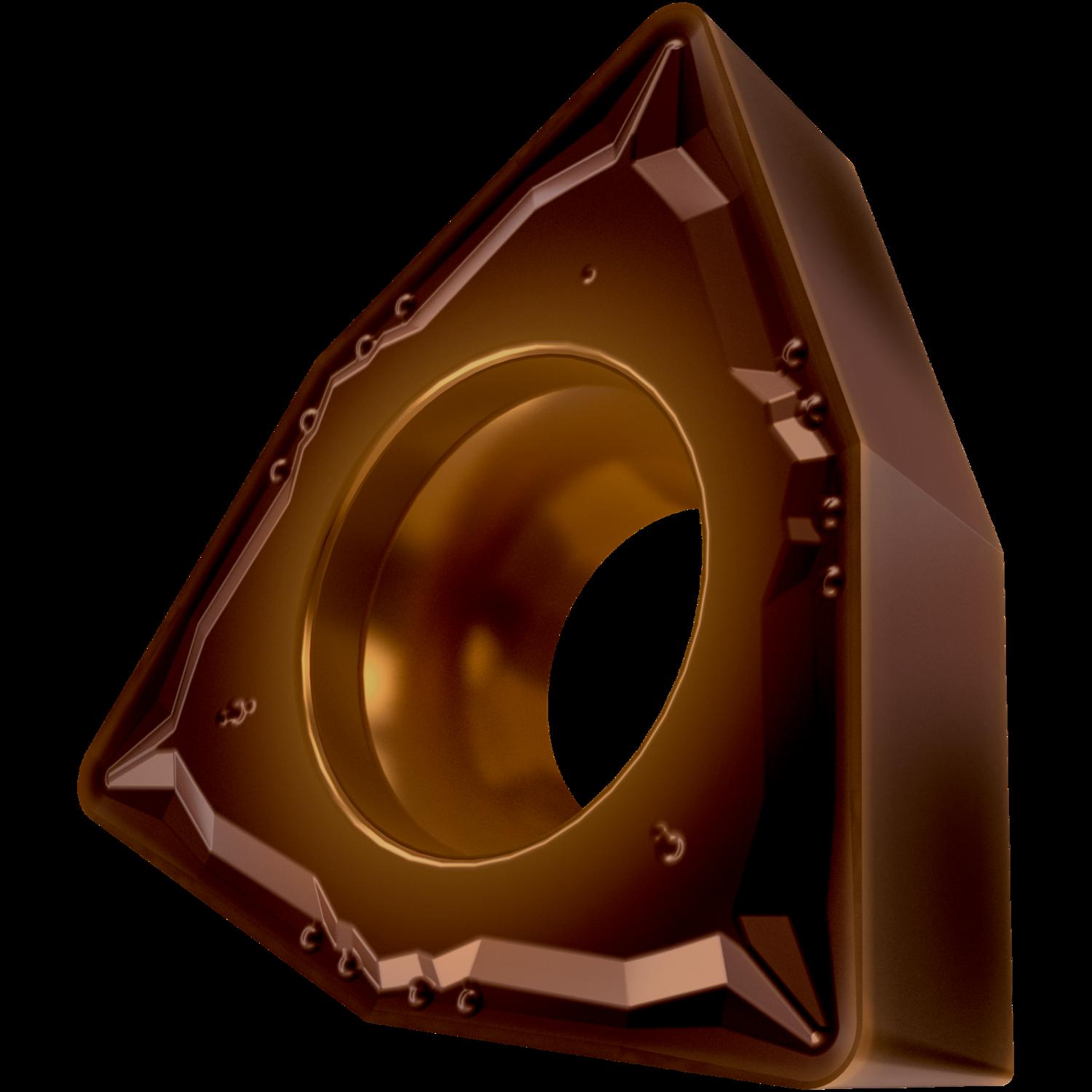

PRAMET WCMT 080408E-FM:T8430 Turning inserts positive

Product Code: WCMT 080408E-FM:T8430

$33.31$30.28 Ex. GST

Product Code: WCMT 080408E-FM:T8430 SKU WCMT 080408E-FM:T8430 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 12.7mm, 4.76mm thick, 0.8mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO ranges P20 -P40 and M20 -M35, for fine to medium machining of steels and stainless-steels

Additional information

Weight 0.0323 kg
barcode
Additional Information

Description: Value
EAN number: 3603603818934
Product number (SAP): 80033115
Ordering code ANSI: WCMT 432-FM:T8430
Gross weight – grams: 8.061
Inscribed circle diameter – millimeter (IC): 12.7 mm
Fixing hole diameter – millimeter (D1): 5.5 mm
Cutting edge length – millimeter (L): 8.7 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: T8430
Corner radius – millimeter (RE): 0.8 mm
Insert Type: T
Insert Geometry: Positive
ISO: WCMT080408E-FM:T8430

Brand

PRAMET
