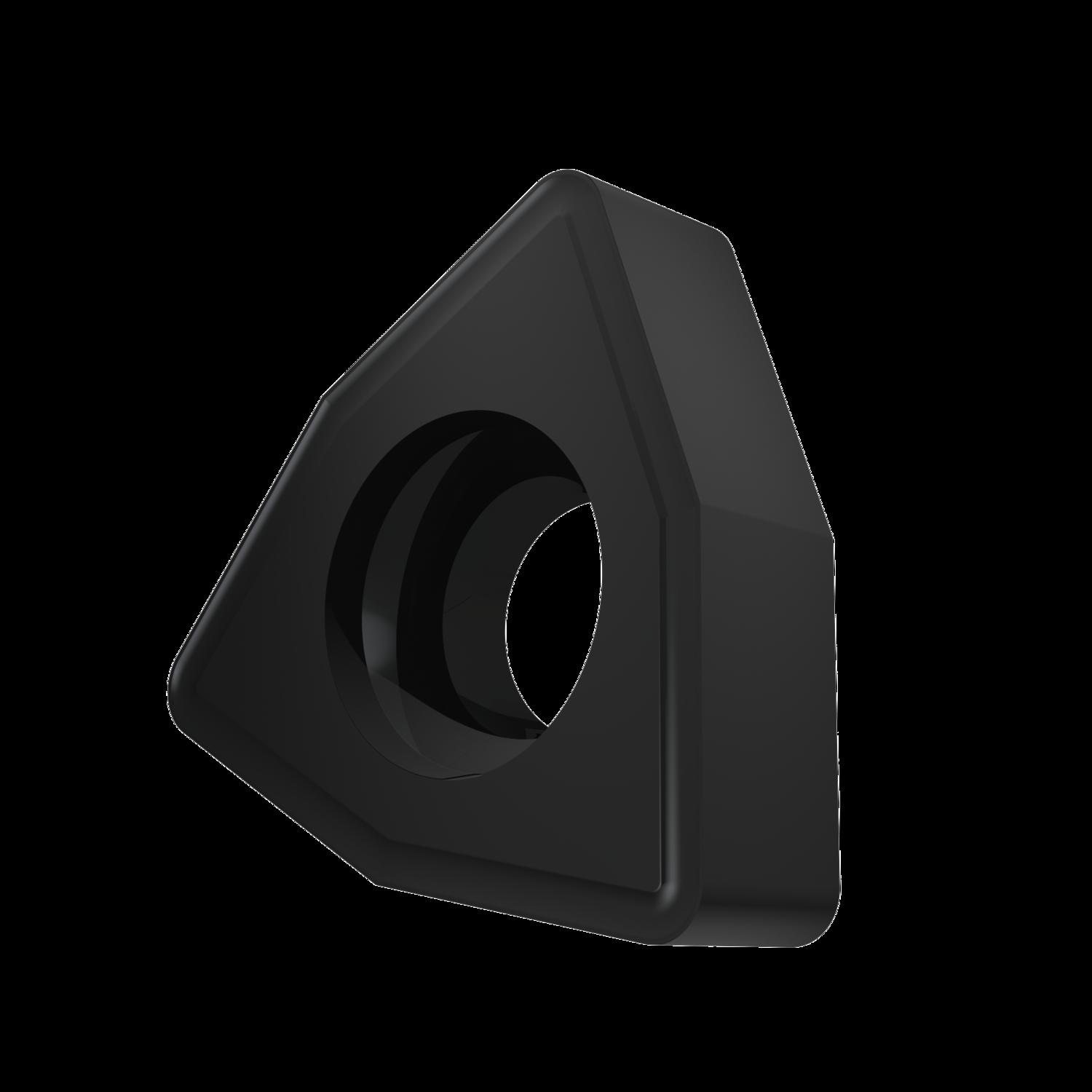

PRAMET WCMT 080412E-RF:T7335 Turning inserts positive

Product Code: WCMT 080412E-RF:T7335

$32.41$29.46 Ex. GST

Product Code: WCMT 080412E-RF:T7335 SKU WCMT 080412E-RF:T7335 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 12.7mm, 4.76mm thick, 1.2mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker RF with rounded cutting edges, in grade T7335, a MT-CVD coated functionally graded WC-Co carbide, for fine to heavy machining

Additional information

Weight 0.0315 kg
barcode
Additional Information

Description: Value
EAN number: 3603602914132
Product number (SAP): 80023326
Ordering code ANSI: WCMT 433-RF:T7335
Gross weight – grams: 8.48
Inscribed circle diameter – millimeter (IC): 12.7 mm
Fixing hole diameter – millimeter (D1): 5.5 mm
Cutting edge length – millimeter (L): 8.7 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: T7335
Corner radius – millimeter (RE): 1.2 mm
Insert Type: T
Insert Geometry: Positive
ISO: WCMT080412E-RF:T7335

Brand

PRAMET
