PRAMET WNHX 040310ER-WM:M4310 Milling inserts for D&M

Product Code: WNHX 040310ER-WM:M4310

$34.67$31.52 Ex. GST

Product Code: WNHX 040310ER-WM:M4310 SKU WNHX 040310ER-WM:M4310 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

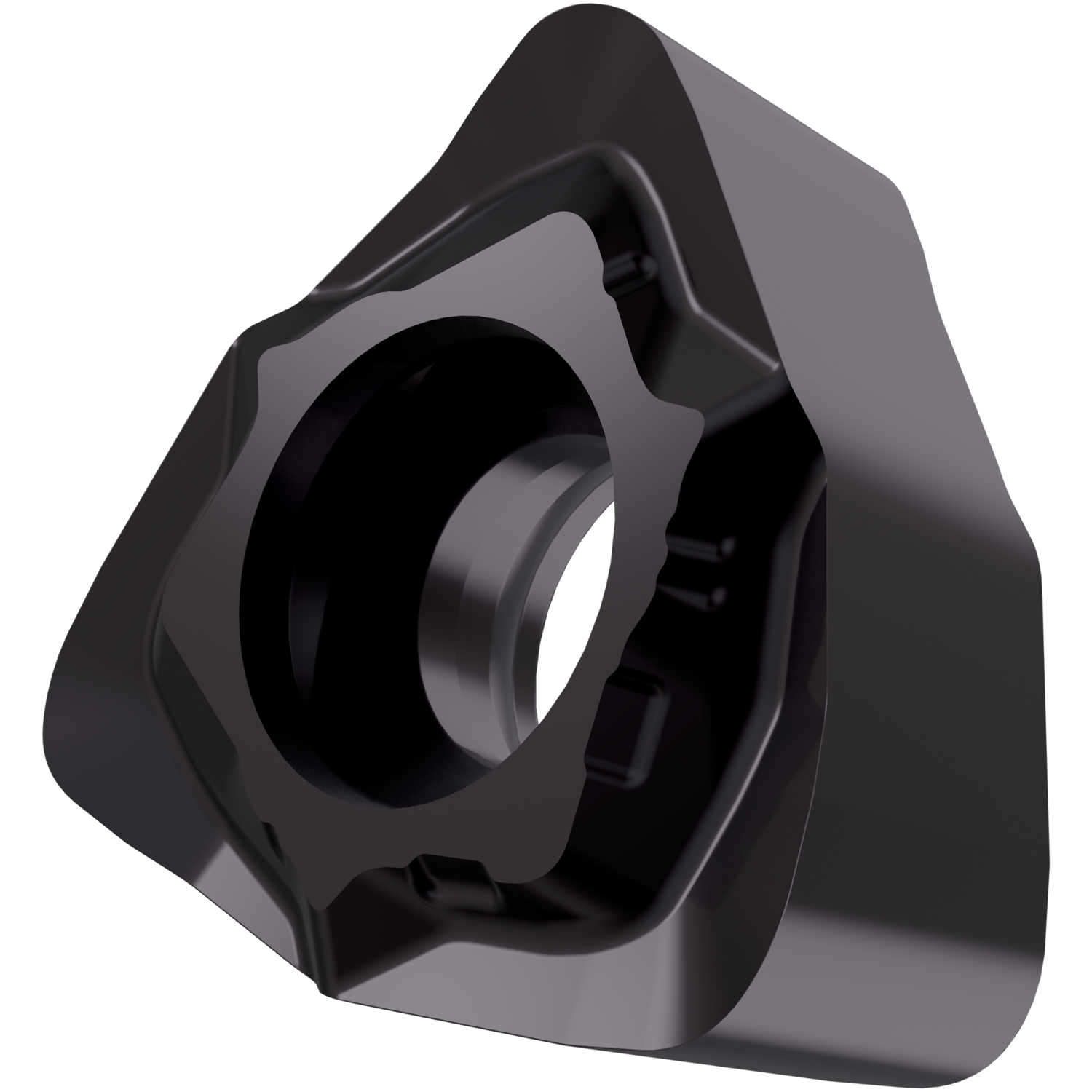

Double-sided milling insert WNHX 0403, 80° trigon and wiper design for a maximum depth of cut of 2.0mm, with 1.0mm corner radius, an indexing accuracy according to ISO-tolerance class-H and WM geometry with rounded cutting edges, M4310 PVD coated fine grained WC-Co carbide within ISO-grade ranges K05 -K15 and H05 -H15 for machining of cast-iron and hardened material with copy face mills SWN04C

Additional information

Weight 0.0337 kg
barcode
Additional Information

Description: Value
EAN number: 3603603537408 Product number (SAP): 80031358 Ordering code ANSI: WNHX 040310ER-WM:M4310 Gross weight: 2.54 grams Inscribed circle diameter (IC): 6.2 mm Fixing hole diameter (D1): 2.6 mm Insert thickness (S): 3.38 mm Grade: M4310 Corner radius (RE): 1 mm Insert size: 04 Chipbreaker manufacturer's designation (CBMD): WM Insert Type: X ISO: WNHX040310ER-WM:M4310

Brand

PRAMET
