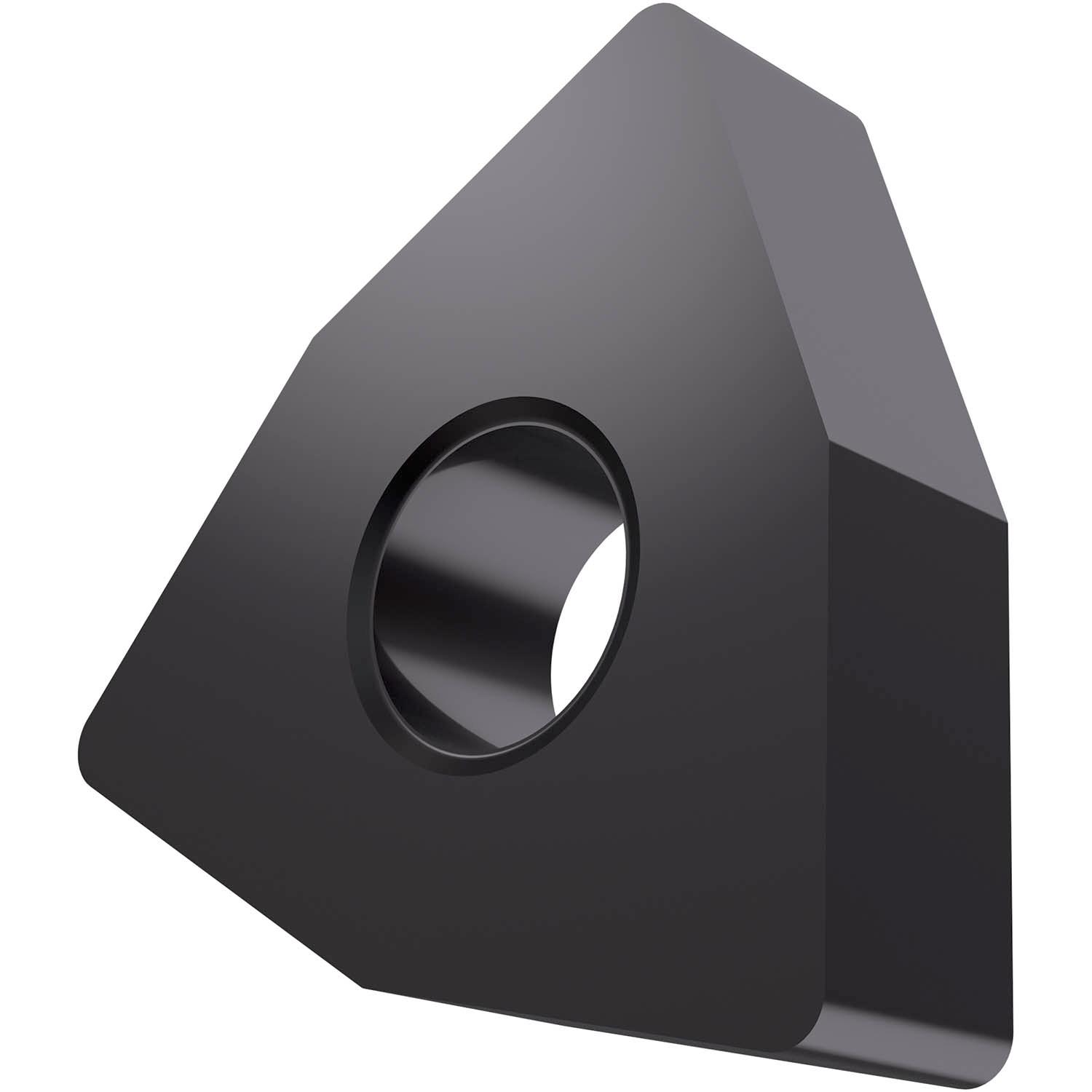

PRAMET WNMA 080408:T6310 Turning inserts negative

Description

Double-sided negative turning insert, 80° trigon with inscribed circle diameter of 12.7mm, 4.76mm thick, 0.8mm nose radius and indexing accuracy according to ISO-tolerance class-M, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO range K05 -K20, for fine to heavy machining of cast-irons

Additional information

Weight	0.0237 kg
barcode
Additional Information	Description: Value EAN number: 3603603076884 Product number (SAP): 80026327 Ordering code ANSI: WNMA 432:T6310 Gross weight – grams: 10.115 Inscribed circle diameter – millimeter (IC): 12.7 mm Fixing hole diameter – millimeter (D1): 5.16 mm Cutting edge length – millimeter (L): 8.7 mm Insert thickness – millimeter (S): 4.76 mm Grade: T6310 Corner radius – millimeter (RE): 0.8 mm Insert Clearance Code and Angle: N 0° Insert Design: WNMA Insert size: 08 Insert Thickness: 04 Insert Type: A Chipbreaker manufacturer's designation (CBMD): No chipbreaker Insert shape code (SC): W – trigon Tool Design: WN Insert Geometry: Negative ISO: WNMA080408:T6310
