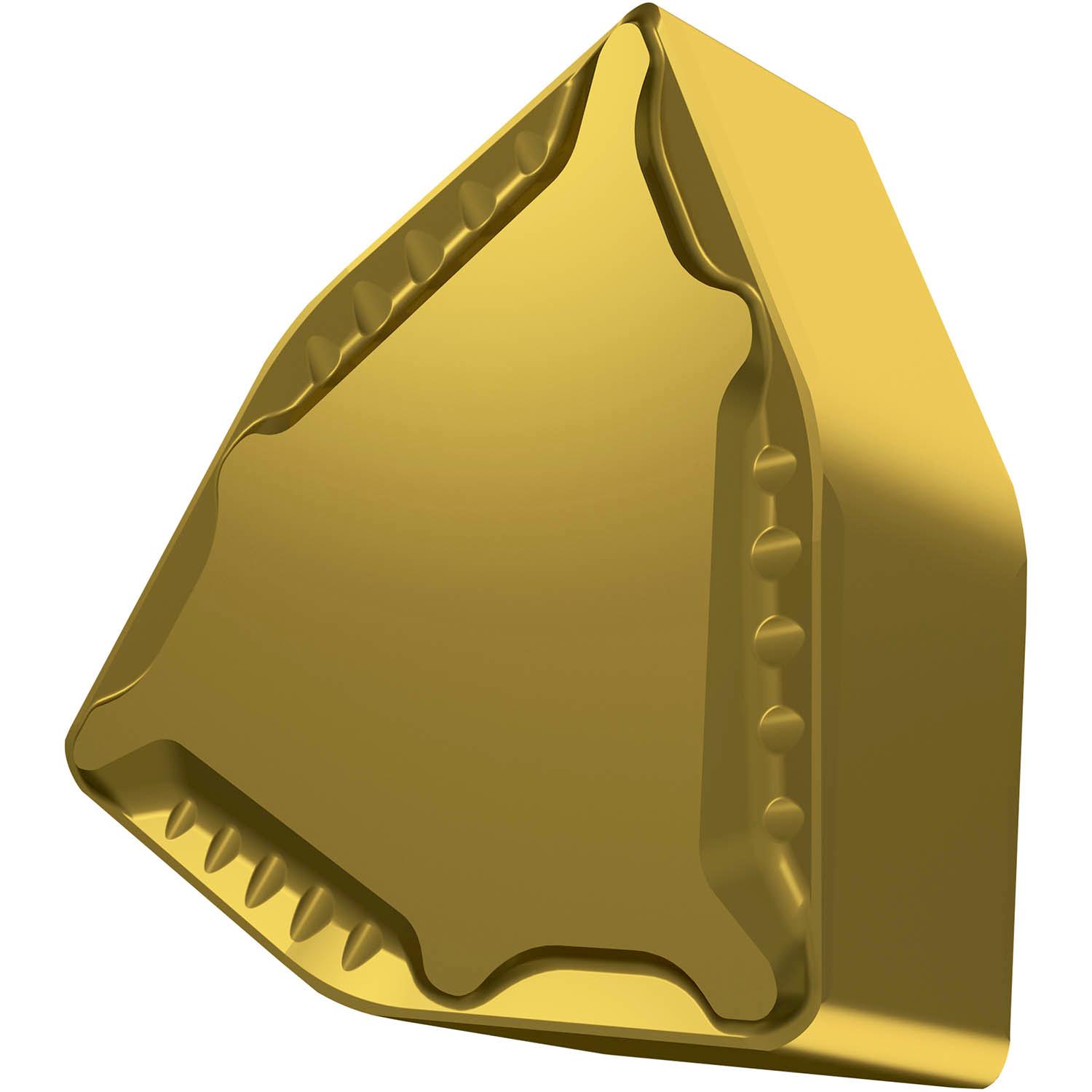

PRAMET WNMF 201380-PM-S01:T9226 Bar peeling inserts Special order

Description: Value
EAN number: 3603603078840
Product number (SAP): 80026560
Ordering code ANSI: WNMF 201380-PM-S01:T9226
Gross weight – grams: 178.246
Cutting edge length – millimeter (L): 20 mm
Insert thickness – millimeter (S): 13 mm
Depth of cut maximum – millimeter (APMX): 8 mm
Major cutting edge angle (KRINS): 25
Inscribed circle diameter – millimeter (IC): 31.75 mm
Insert included angle (EPSR): 85
Wiper edge length – millimeter (BS): 15 mm
Grade: T9226
Cutting depth – minimal – milimeters (ap): 1 mm
Cutting depth – maximal – milimeters (ap): 8 mm
Feed maximal – millimeter: 12 mm/rev
Insert Clearance Code and Angle: N 0°
Insert Design: WNMF
Insert size: 20
Insert Thickness: 13
Insert Type: F
Chipbreaker manufacturer's designation (CBMD): PM-S01
Insert shape code (SC): W – trigon
ISO: WNMF201380-PM-S01:T9226
