Description: Value
EAN number: 3603603820081
Product number (SAP): 80033230
Ordering code ANSI: WNMG 331-FM:T8430
Gross weight – grams: 6.58
Inscribed circle diameter – millimeter (IC): 9.525 mm
Fixing hole diameter – millimeter (D1): 3.81 mm
Cutting edge length – millimeter (L): 6.5 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: T8430
Corner radius – millimeter (RE): 0.4 mm
Insert Clearance Code and Angle: N 0°
Insert Design: WNMG
Insert size: 06
Insert Thickness: 04
Insert Type: G
Chipbreaker manufacturer's designation (CBMD): FM
Insert shape code (SC): W – trigon
Tool Design: WN
Insert Geometry: Negative

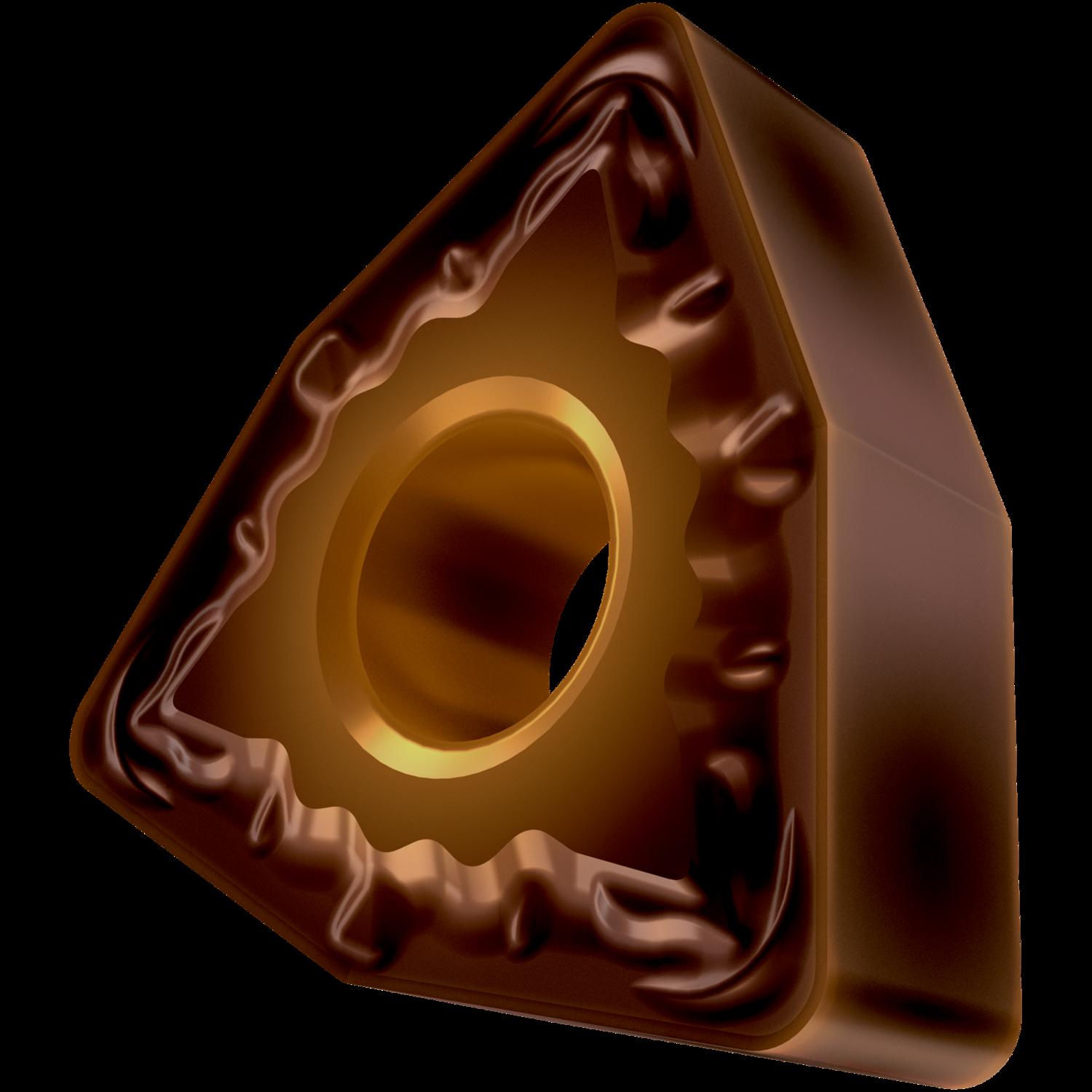

ISO: WNMG060404E-FM:T8430
|
