Description: Value
EAN number: 3603602898210
Product number (SAP): 80016573
Ordering code ANSI: WNMG 333-NM:T9325
Gross weight – grams: 5.088
Inscribed circle diameter – millimeter (IC): 9.525 mm
Fixing hole diameter – millimeter (D1): 3.81 mm
Cutting edge length – millimeter (L): 6.5 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: T9325
Corner radius – millimeter (RE): 1.2 mm
Insert Clearance Code and Angle: N 0°
Insert Design: WNMG
Insert size: 06
Insert Thickness: 04
Insert Type: G
Chipbreaker manufacturer's designation (CBMD): NM

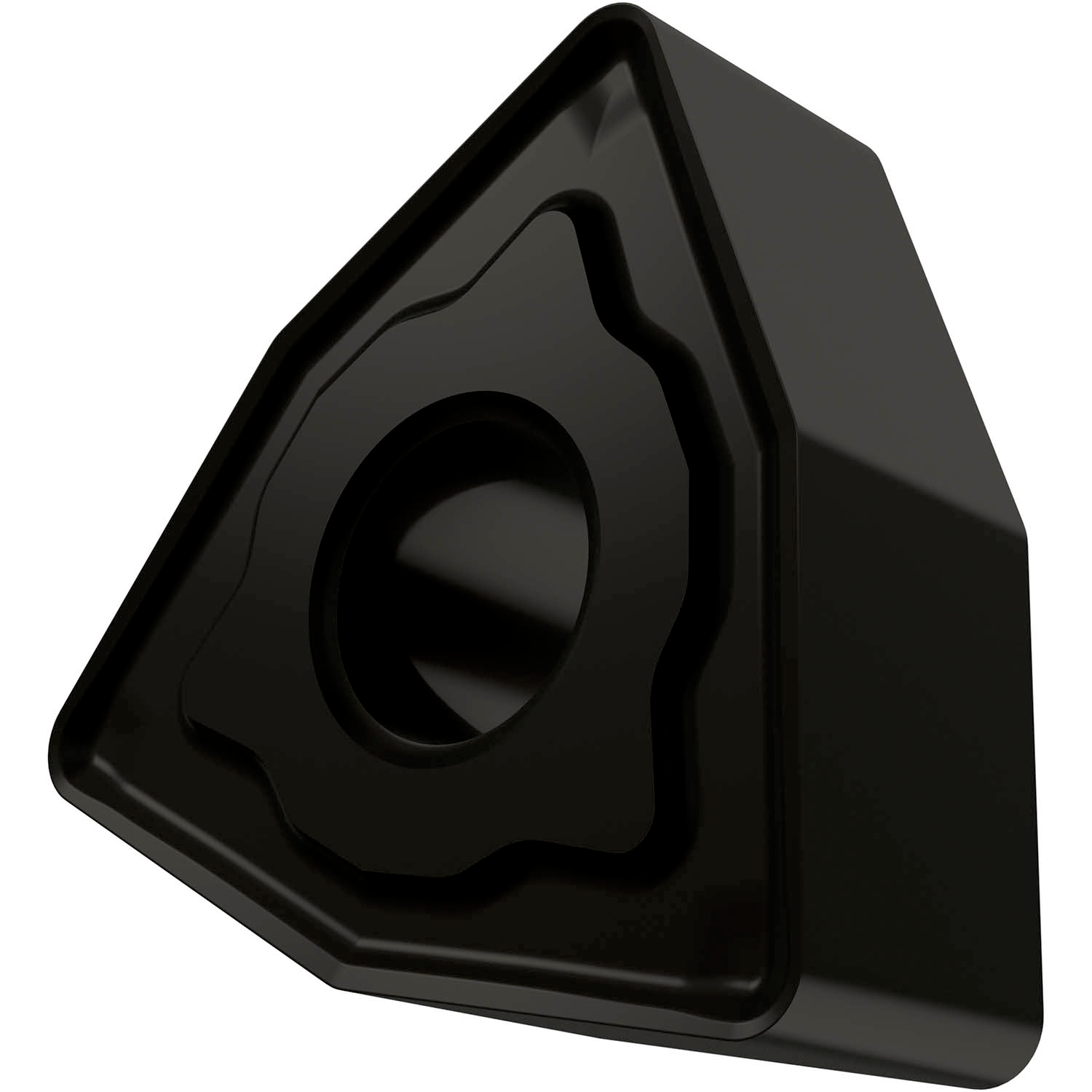

Insert shape code (SC): W – trigon
Tool Design: WN
Insert Geometry: Negative
ISO: WNMG060412E-NM:T9325
|
