Description: Value

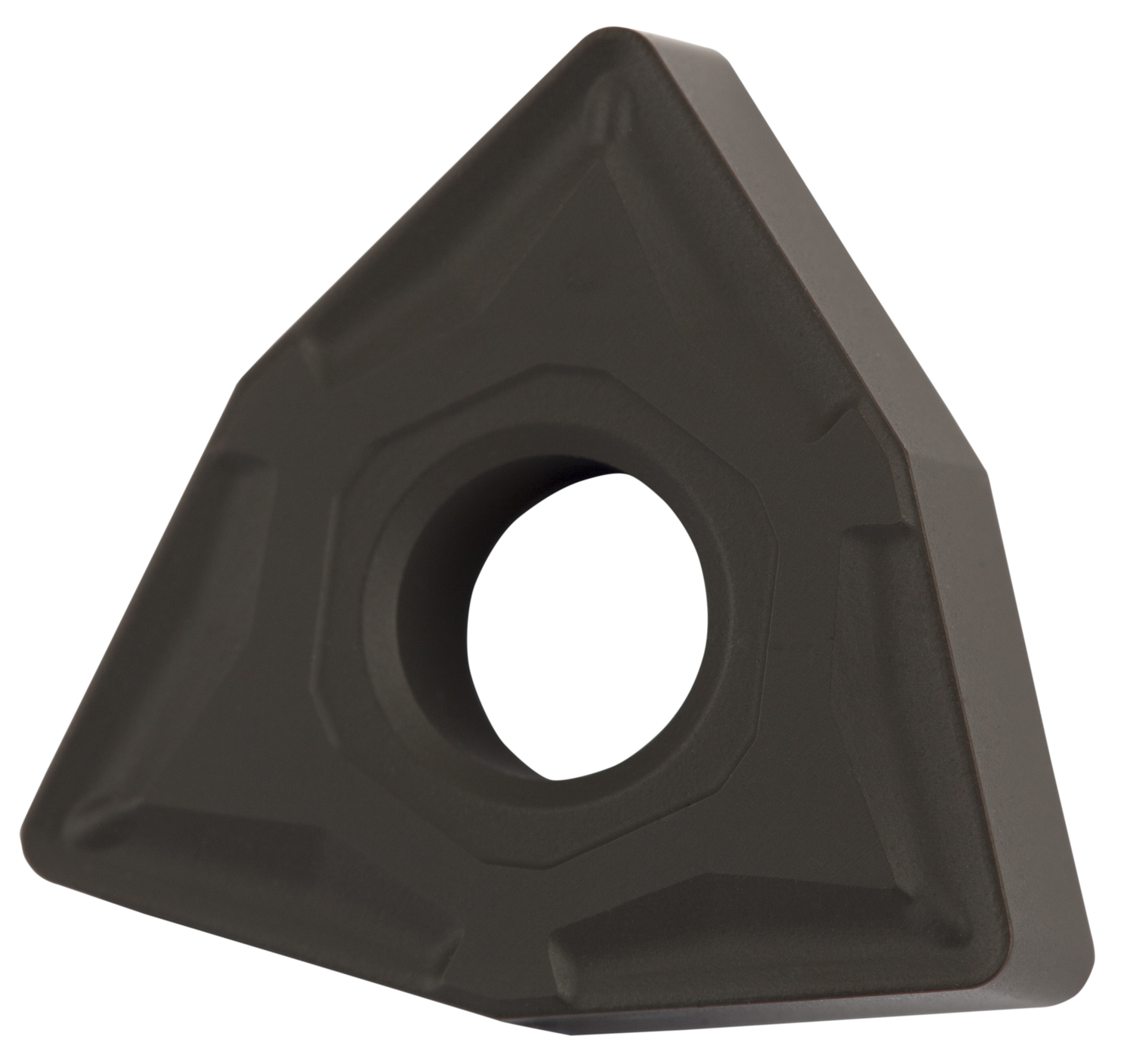

EAN number: 3603602911186 Product number (SAP): 80022877 Ordering code ANSI: WNMG 431-M:T5315 Gross weight: 10.031 grams Inscribed circle diameter (IC): 12.7 mm Fixing hole diameter (D1): 5.16 mm Cutting edge length (L): 8.7 mm Insert thickness (S): 4.76 mm Grade: T5315 Corner radius (RE): 0.4 mm Insert Clearance Code and Angle: N 0° Insert Design: WNMG Insert size: 08 Insert Thickness: 04 Insert Type: G Chipbreaker manufacturer's designation (CBMD): M Insert shape code (SC): W – trigon Tool Design: WN Insert Geometry: Negative ISO: WNMG080404E-M:T5315
|
