Description: Value

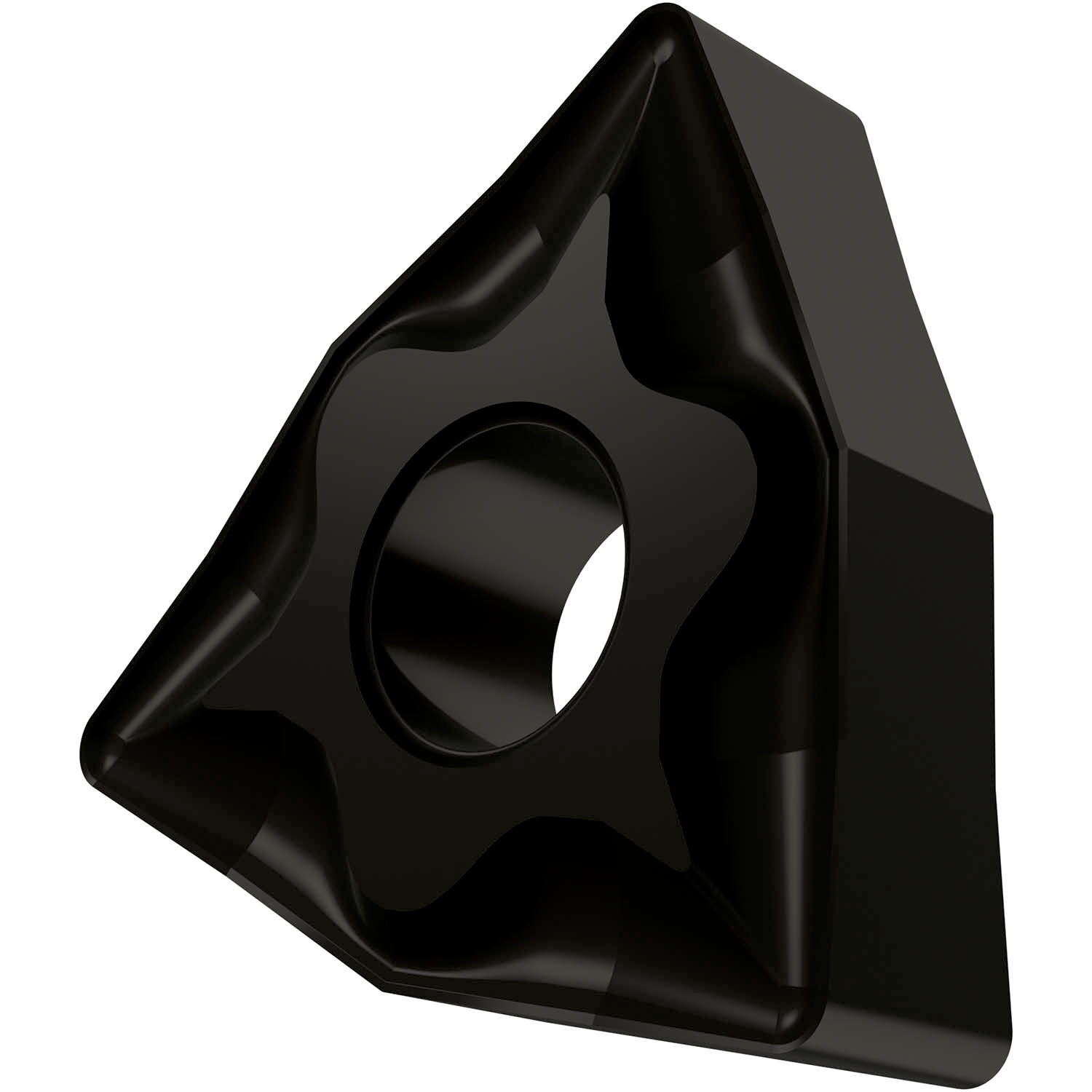

EAN number: 3603603013018 Product number (SAP): 80025519 Ordering code ANSI: WNMG 431-NF:T9325 Gross weight: 8.265 grams Inscribed circle diameter (IC): 12.7 mm Fixing hole diameter (D1): 5.16 mm Cutting edge length (L): 8.7 mm Insert thickness (S): 4.76 mm Grade: T9325 Corner radius (RE): 0.4 mm Insert Clearance Code and Angle: N 0° Insert Design: WNMG Insert size: 08 Insert Thickness: 04 Insert Type: G Chipbreaker manufacturer's designation (CBMD): NF Insert shape code (SC): W – trigon Tool Design: WN Insert Geometry: Negative ISO: WNMG080404E-NF:T9325
|
