Description: Value
EAN number: 3603603070103
Product number (SAP): 80025952
Ordering code ANSI: WNMG 431-SM:T6310
Gross weight – grams: 9.638
Inscribed circle diameter – millimeter (IC): 12.7 mm
Fixing hole diameter – millimeter (D1): 5.16 mm
Cutting edge length – millimeter (L): 8.7 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: T6310
Corner radius – millimeter (RE): 0.4 mm
Insert Clearance Code and Angle: N 0°

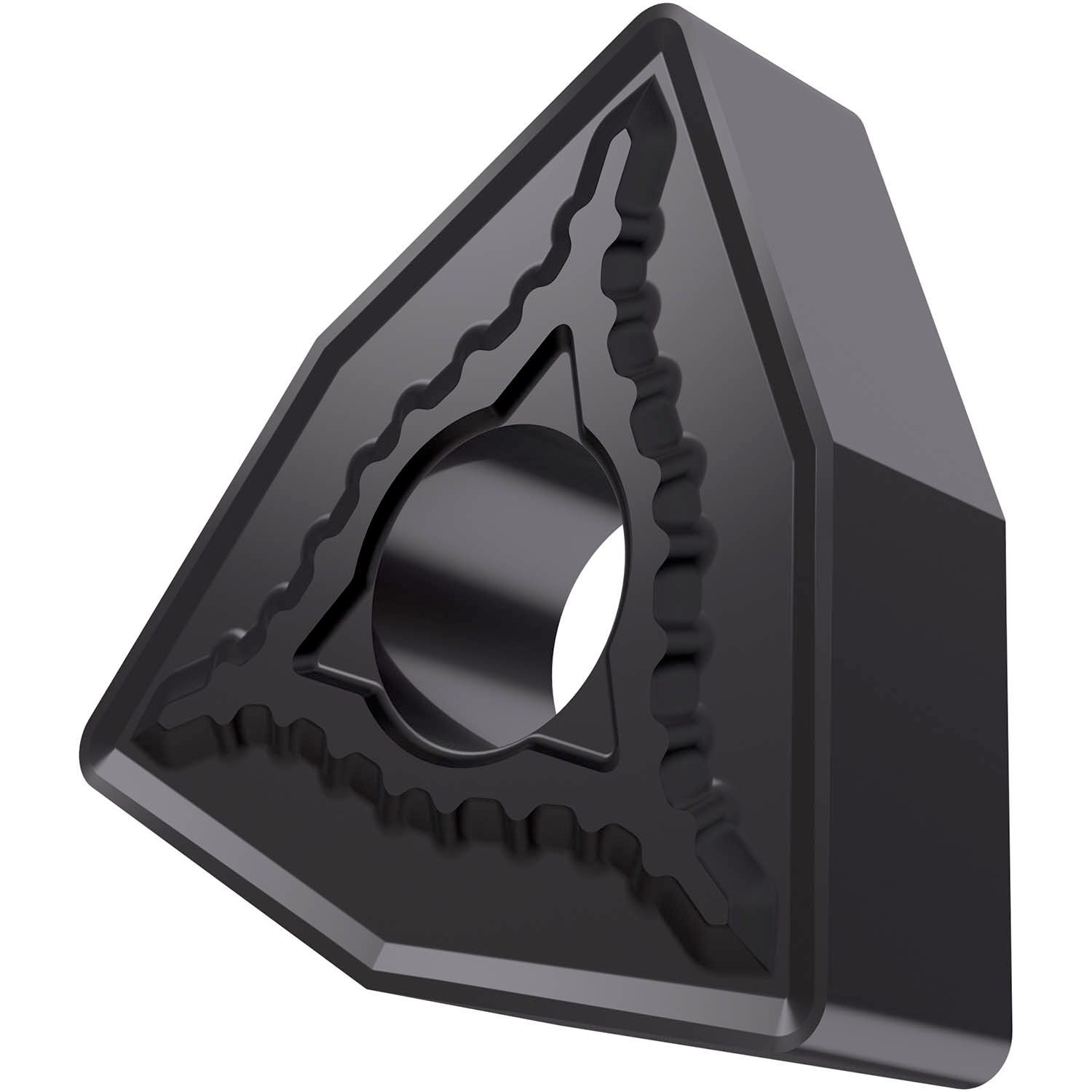

Insert Design: WNMG
Insert size: 08
Insert Thickness: 04
Insert Type: G
Chipbreaker manufacturer's designation (CBMD): SM
Insert shape code (SC): W – trigon
Tool Design: WN
Insert Geometry: Negative
ISO: WNMG080404E-SM:T6310
|
