Home » Shop » CUTTING TOOLS (HSS & Carbide) » Turning » PRAMET WNMG 080408-PFM2:T9025 Focus Products
$15.75$14.32 Ex. GST

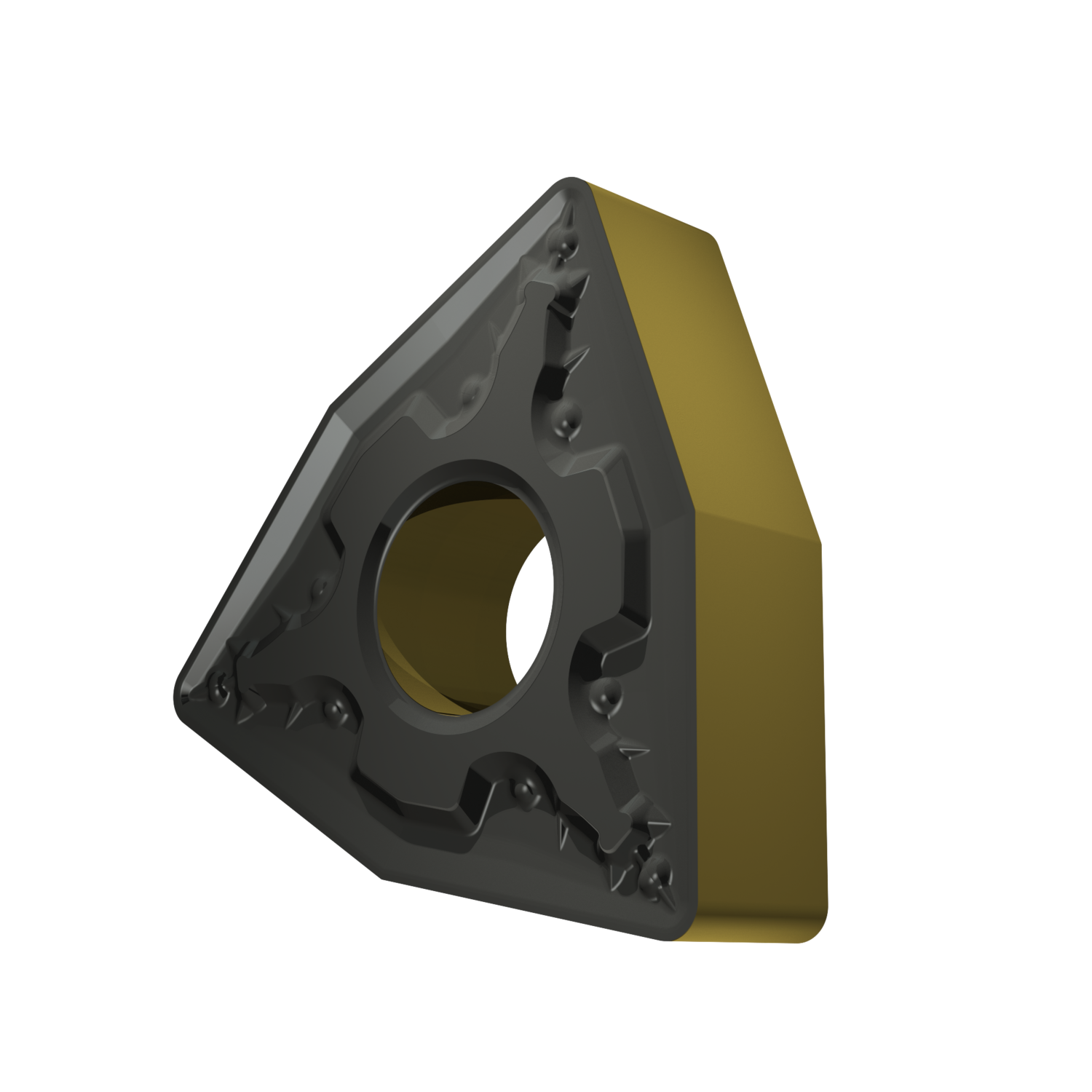

Double-sided negative turning insert, 80° trigon, nose radius, indexing accuracy according to ISO-tolerance class-M.
3603604169271
Description: Value EAN number: 3603604169271 Product number (SAP): 80035990 Ordering code ANSI: WNMG 432-PFM2:T9025 Gross weight – grams: 10.32 Inscribed circle diameter – millimeter (IC): 12.7 mm Fixing hole diameter – millimeter (D1): 5.16 mm Cutting edge length – millimeter (L): 8.7 mm Insert thickness – millimeter (S): 4.76 mm Grade: T9025 Corner radius – millimeter (RE): 0.8 mm Insert Clearance Code and Angle: N 0° Insert Design: WNMG Insert size: 08 Insert Thickness: 04 Insert Type: G Chipbreaker manufacturer's designation (CBMD): PFM2 Insert shape code (SC): W – trigon Tool Design: WN Insert Geometry: Negative ISO: WNMG080408-PFM2:T9025
