PRAMET WNMG 080412-NRM:T9315 Turning inserts negative

Description: Value
EAN number: 3603603511217
Product number (SAP): 80031056
Ordering code ANSI: WNMG 433-NRM:T9315
Gross weight – grams: 8.849

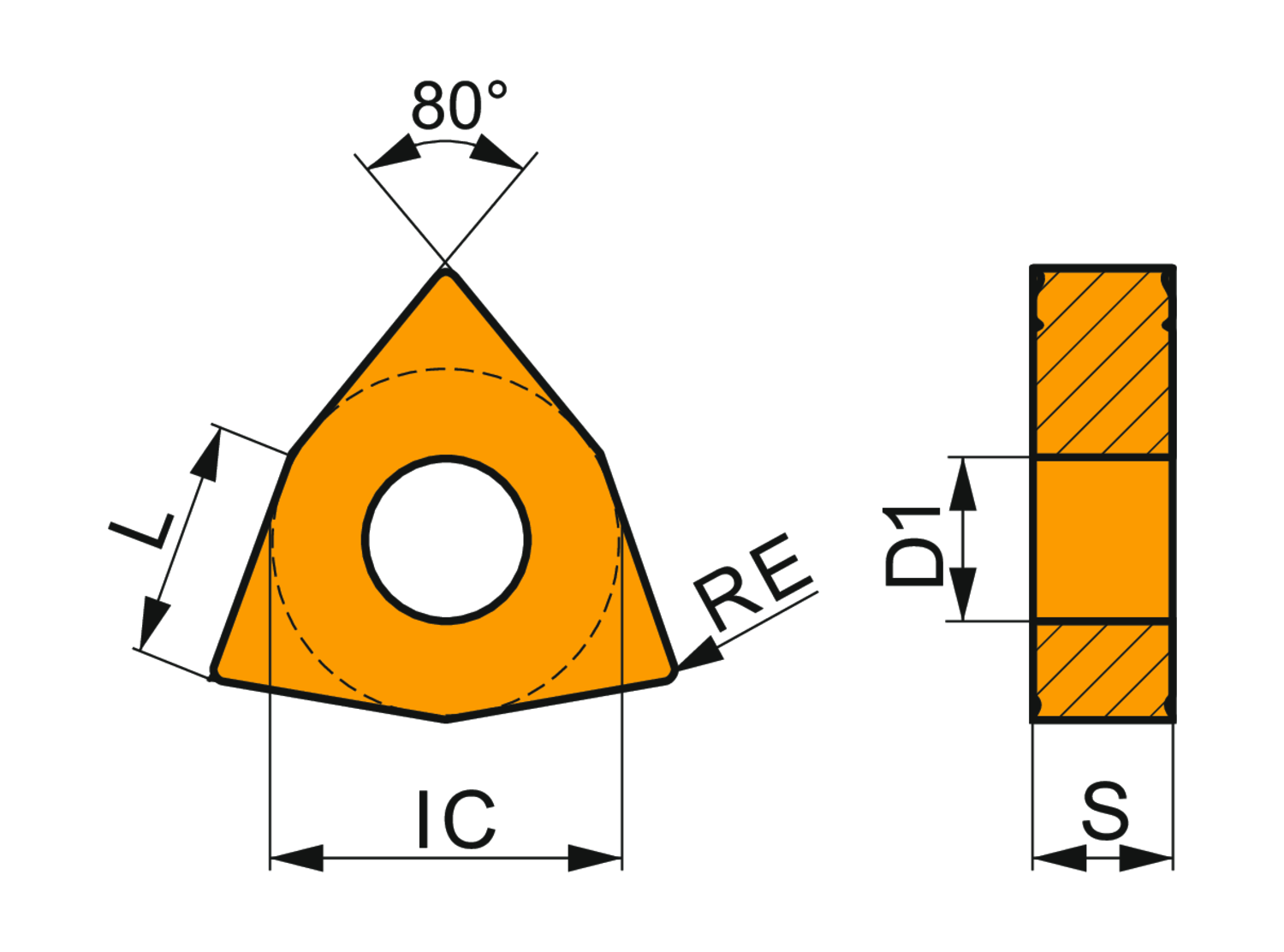

Inscribed circle diameter – millimeter (IC): 12.7 mm
Fixing hole diameter – millimeter (D1): 5.16 mm
Cutting edge length – millimeter (L): 8.7 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: T9315
Corner radius – millimeter (RE): 1.2 mm
Insert Clearance Code and Angle: N 0°
Insert Design: WNMG
Insert size: 08
Insert Thickness: 04
Insert Type: G
Chipbreaker manufacturer's designation (CBMD): NRM
Insert shape code (SC): W – trigon
Tool Design: WN
Insert Geometry: Negative
ISO: WNMG080412-NRM:T9315
