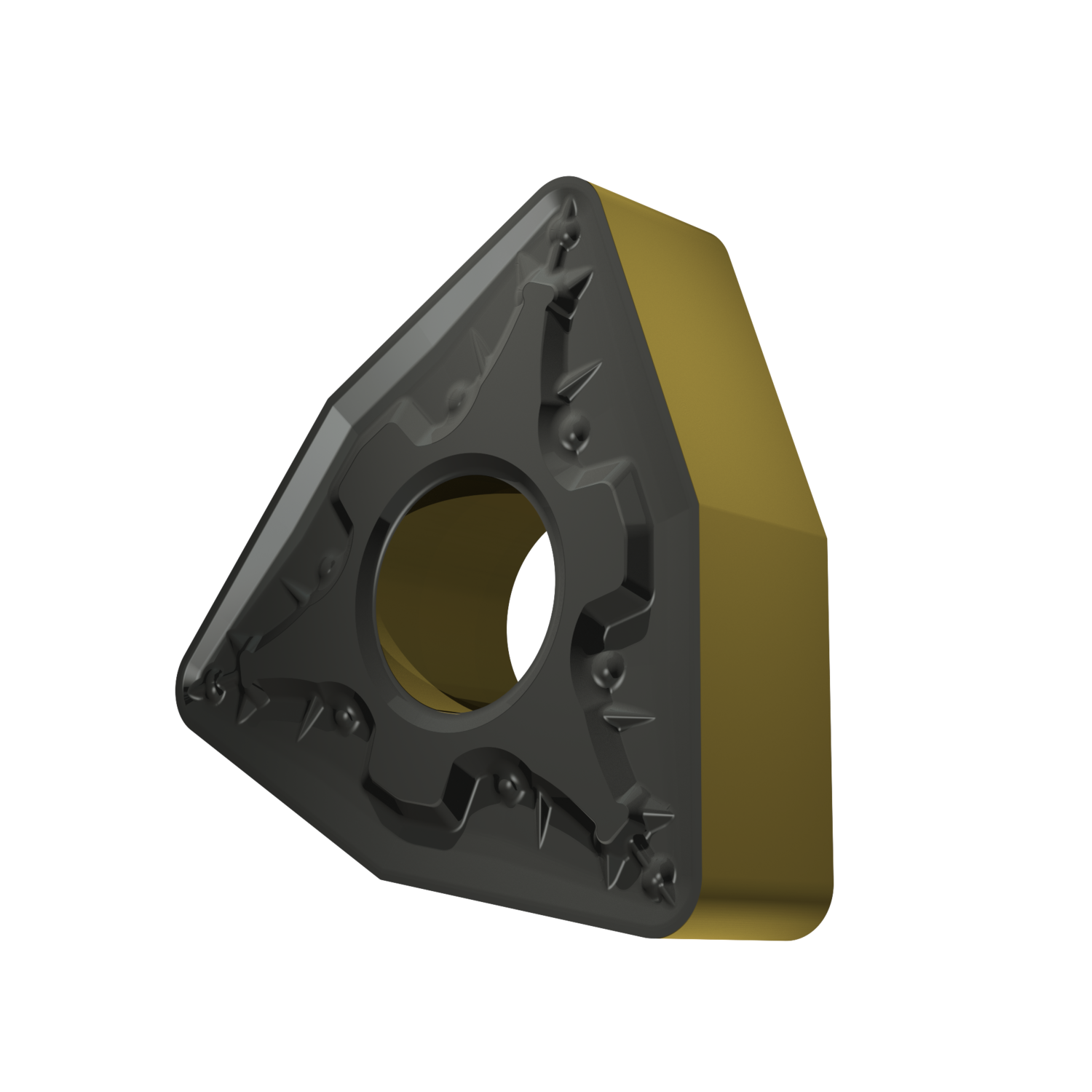

PRAMET WNMG 080412-PFM2:T9015 Focus Products

Description: Value
EAN number: 3603604169301
Product number (SAP): 80035993
Ordering code ANSI: WNMG 433-PFM2:T9015
Gross weight – grams: 9.245
Inscribed circle diameter – millimeter (IC): 12.7 mm
Fixing hole diameter – millimeter (D1): 5.16 mm
Cutting edge length – millimeter (L): 8.7 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: T9015
Corner radius – millimeter (RE): 1.2 mm
Insert Clearance Code and Angle: N 0°
Insert Design: WNMG
Insert size: 08
Insert Thickness: 04
Insert Type: G
Chipbreaker manufacturer's designation (CBMD): PFM2
Insert shape code (SC): W – trigon
Tool Design: WN
Insert Geometry: Negative
ISO: WNMG080412-PFM2:T9015
