Description: Value
EAN number: 3603603075955
Product number (SAP): 80026236

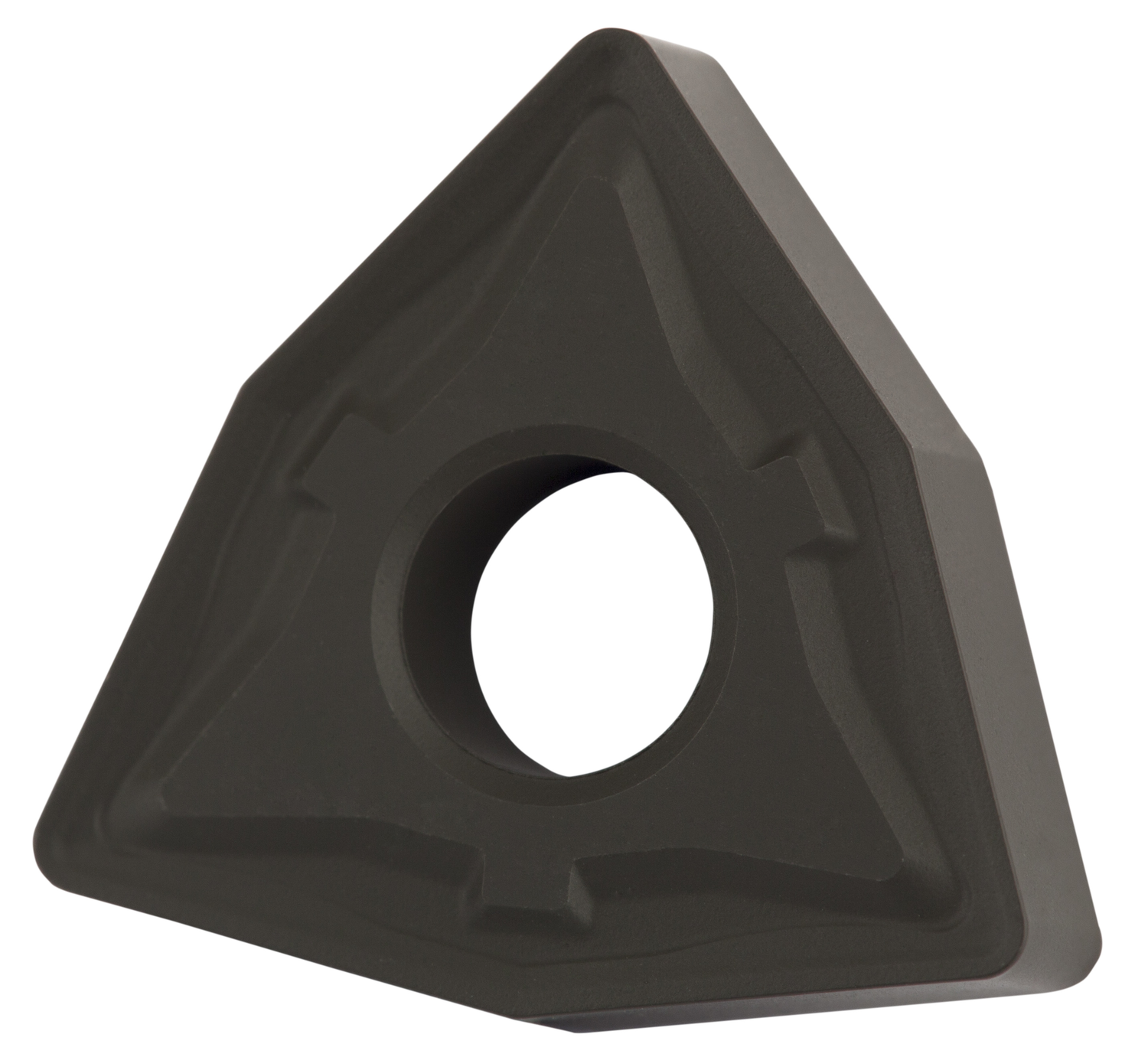

Ordering code ANSI: WNMG 433-R:T9335
Gross weight – grams: 9
Inscribed circle diameter – millimeter (IC): 12.7 mm
Fixing hole diameter – millimeter (D1): 5.16 mm
Cutting edge length – millimeter (L): 8.7 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: T9335
Corner radius – millimeter (RE): 1.2 mm
Insert Clearance Code and Angle: N 0°
Insert Design: WNMG
Insert size: 08
Insert Thickness: 04
Insert Type: G
Chipbreaker manufacturer's designation (CBMD): R
Insert shape code (SC): W – trigon
Tool Design: WN
Insert Geometry: Negative
ISO: WNMG080412E-R:T9335
|
