Description: Value
EAN number: 3603602881618
Product number (SAP): 80009341
Ordering code ANSI: WNMJ 201480-PR:6630
Gross weight – grams: 174.183
Cutting edge length – millimeter (L): 20 mm
Insert thickness – millimeter (S): 14 mm
Depth of cut maximum – millimeter (APMX): 8 mm
Major cutting edge angle (KRINS): 25
Inscribed circle diameter – millimeter (IC): 31.75 mm
Insert included angle (EPSR): 85
Wiper edge length – millimeter (BS): 15 mm
Grade: 6630
Cutting depth – minimal – milimeters (ap): 1 mm
Cutting depth – maximal – milimeters (ap): 8 mm
Feed maximal – millimeter: 12 mm/rev
Insert Clearance Code and Angle: N 0°

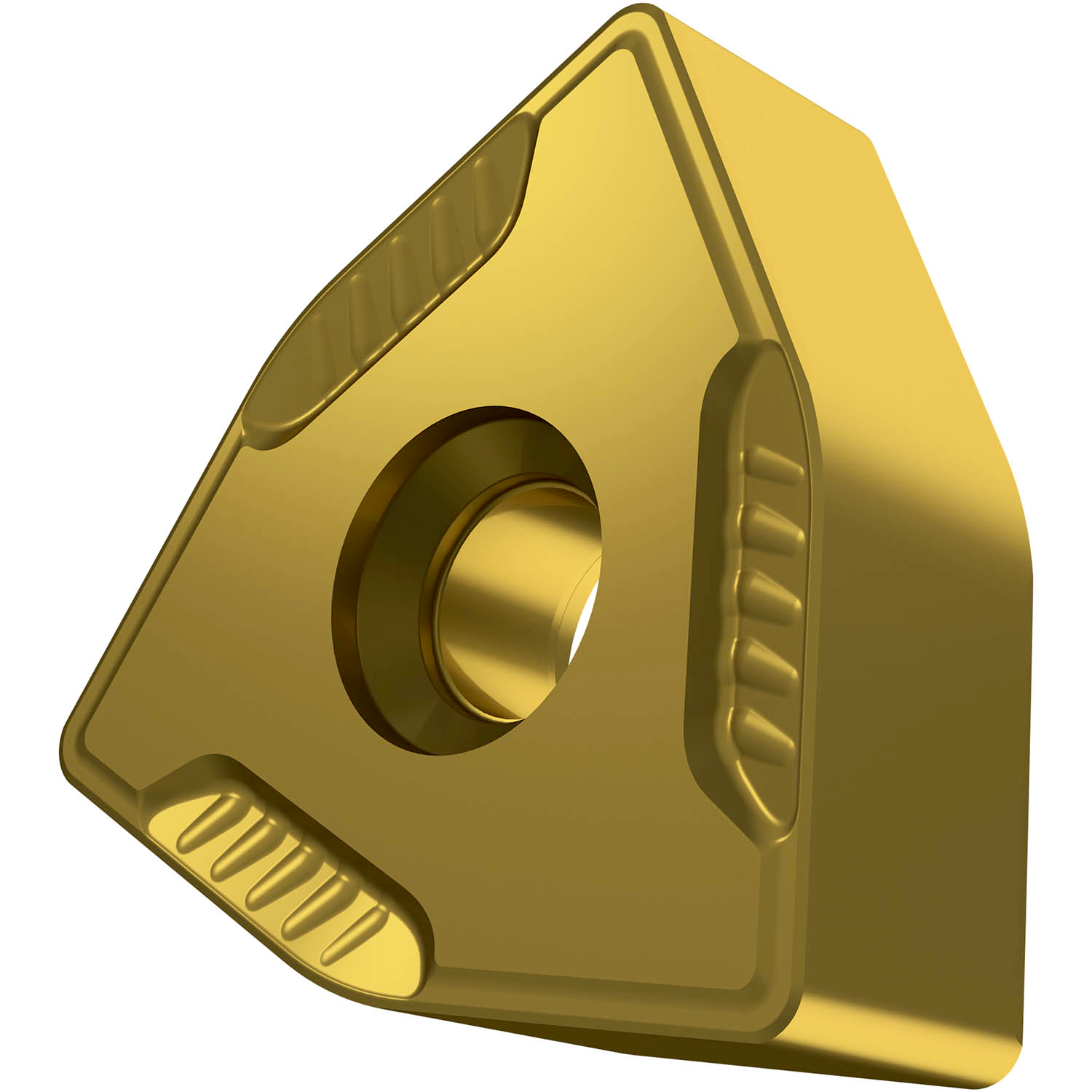

Insert Design: WNMJ
Insert size: 20
Insert Thickness: 14
Insert Type: J
Chipbreaker manufacturer's designation (CBMD): PR
Insert shape code (SC): W – trigon
Fixing hole diameter – millimeter (D1): 9 mm
ISO: WNMJ201480-PR:6630
|
