Description: Value
EAN number: 3603602903877
Product number (SAP): 80017392
Ordering code ANSI: WNMM 432-OR:T9335
Gross weight – grams: 9.38
Inscribed circle diameter – millimeter (IC): 12.7 mm
Fixing hole diameter – millimeter (D1): 5.16 mm
Cutting edge length – millimeter (L): 8.7 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: T9335
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: N 0°

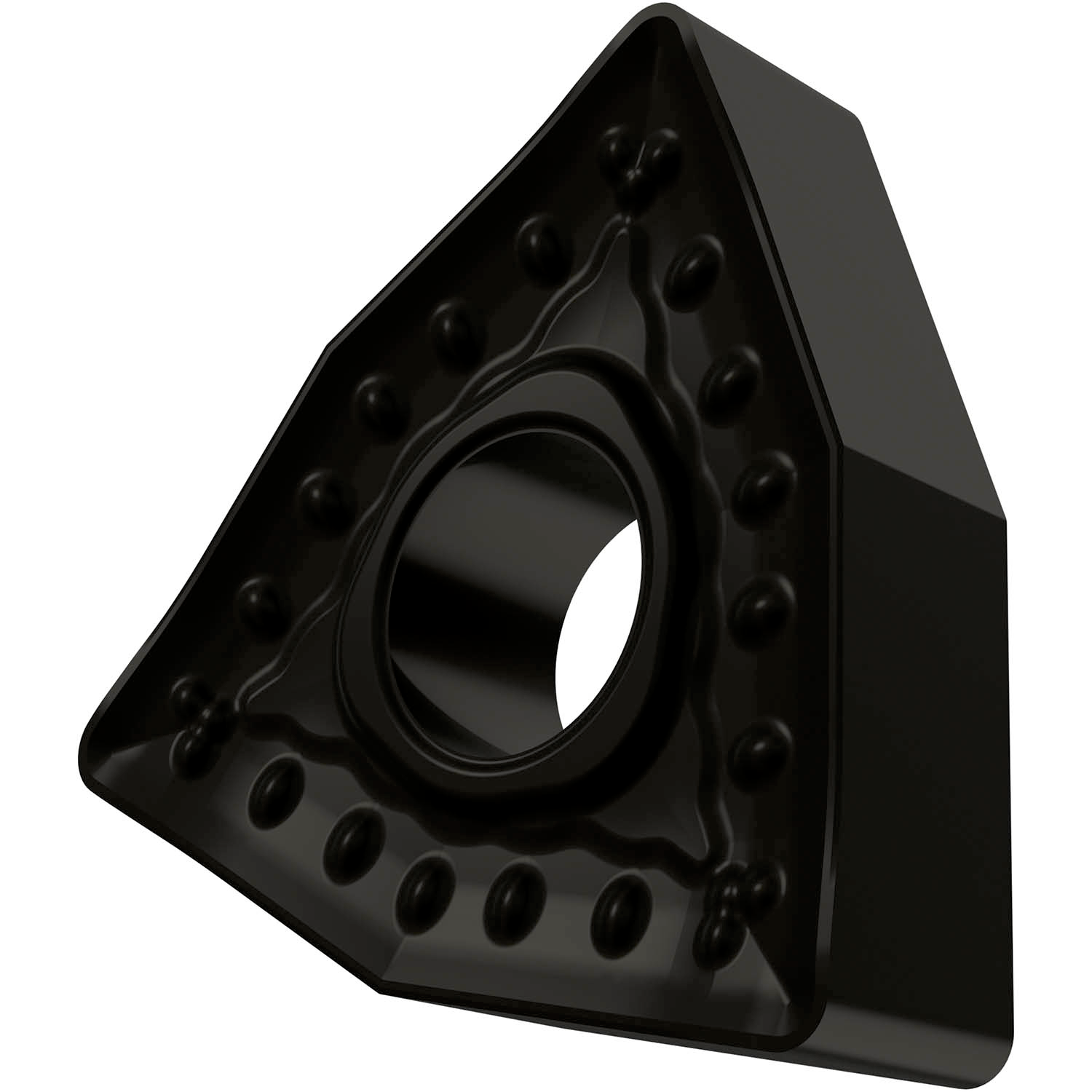

Insert Design: WNMM
Insert size: 08
Insert Thickness: 04
Insert Type: M
Chipbreaker manufacturer's designation (CBMD): OR_
Insert shape code (SC): W – trigon
Tool Design: WN
Insert Geometry: Negative
ISO: WNMM080408E-OR:T9335
|
