Description: Value
EAN number: 3603603592056
Product number (SAP): 80031665
Ordering code ANSI: X61 0602-080 L1:6640
Gross weight – grams: 2.52
Insert width – millimeter (W1): 6.35 mm
Cutting width lower tolerance – millimeter (CWTOLL): -0.03 mm
Cutting width upper tolerance – millimeter (CWTOLU): 0.03 mm
Insert thickness – millimeter (S): 2.33 mm
Grade: 6640
Cutting width – millimeter (CW): 0.85 mm
Cutting depth maximum – millimeter (CDX): 0.8 mm

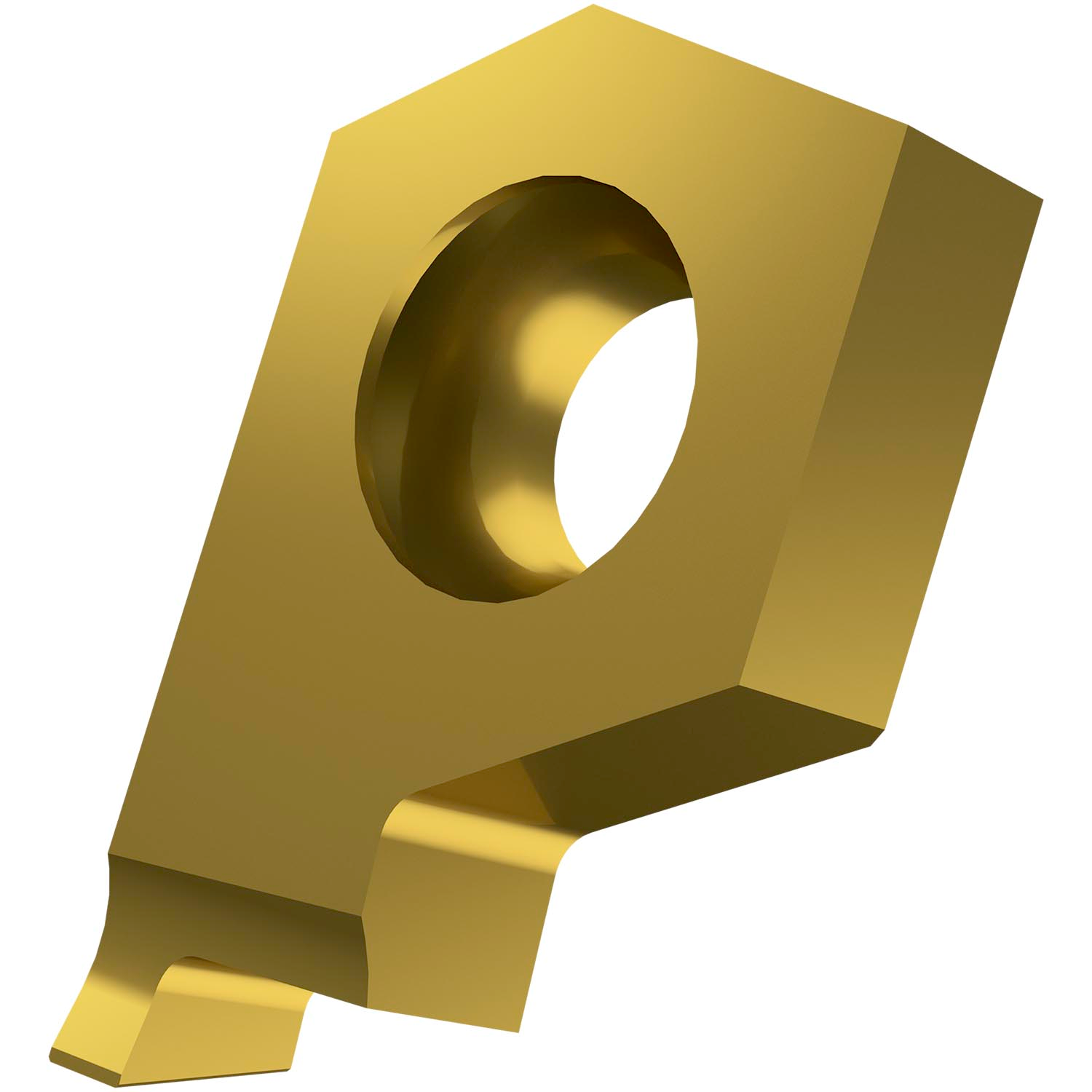

Insert Design: X 61-1
Chipbreaker manufacturer's designation (CBMD): With chipbreaker -no designation
Primary Tool Lead Angle: Neutral
ISO: X610602-080L1:6640
|
