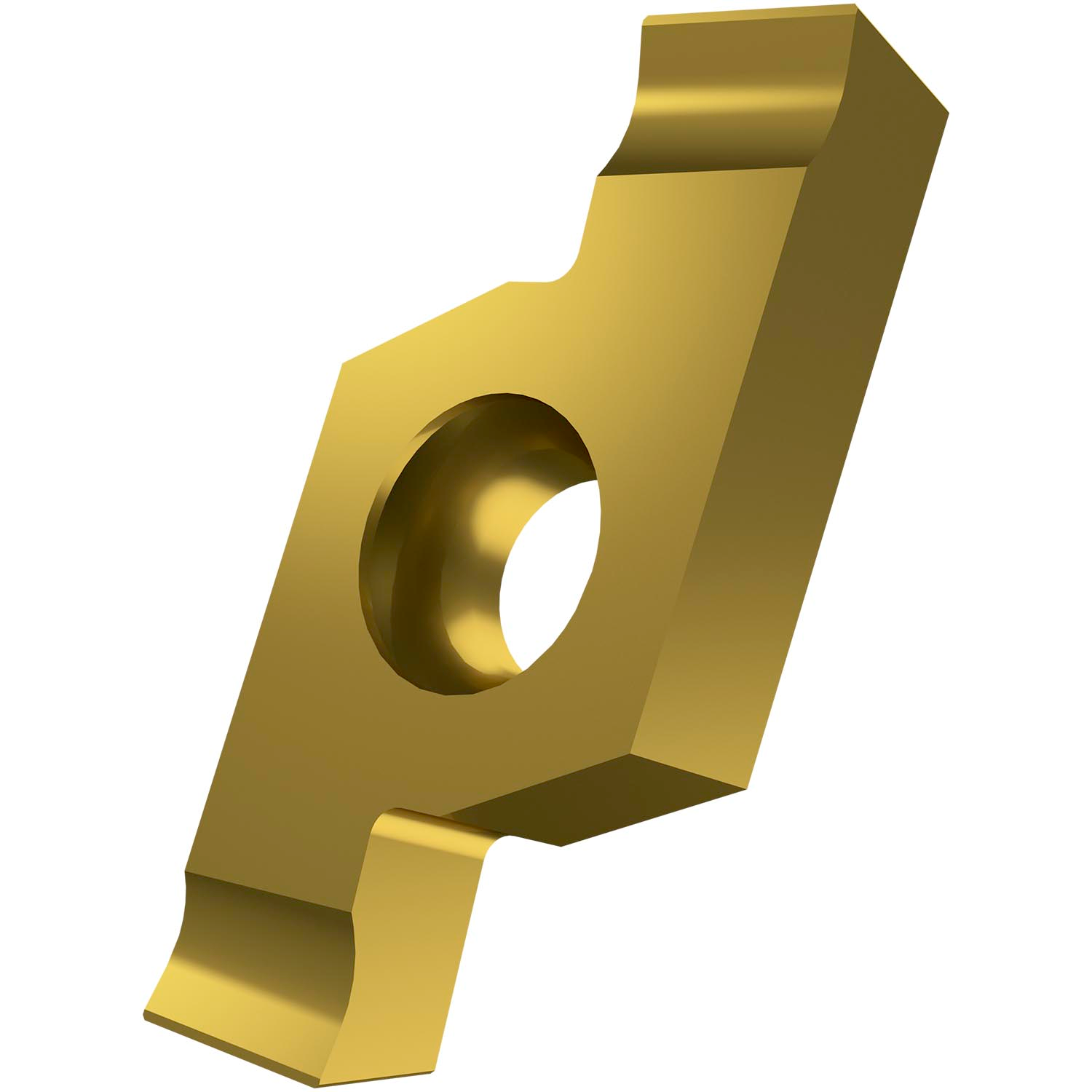

PRAMET X61 0602-300 L:6640 Turning inserts for grooving

Description: Value
EAN number: 3603603592599
Product number (SAP): 80031719
Ordering code ANSI: X61 0602-300 L:6640
Gross weight – grams: 1.711
Insert width – millimeter (W1): 6.35 mm
Cutting width lower tolerance – millimeter (CWTOLL): -0.03 mm
Cutting width upper tolerance – millimeter (CWTOLU): 0.03 mm
Insert thickness – millimeter (S): 2.33 mm
Grade: 6640
Cutting width – millimeter (CW): 3.05 mm
Cutting depth maximum – millimeter (CDX): 3 mm
Insert Design: X 61
Chipbreaker manufacturer's designation (CBMD): With chipbreaker -no designation
Primary Tool Lead Angle: Neutral
ISO: X610602-300L:6640
