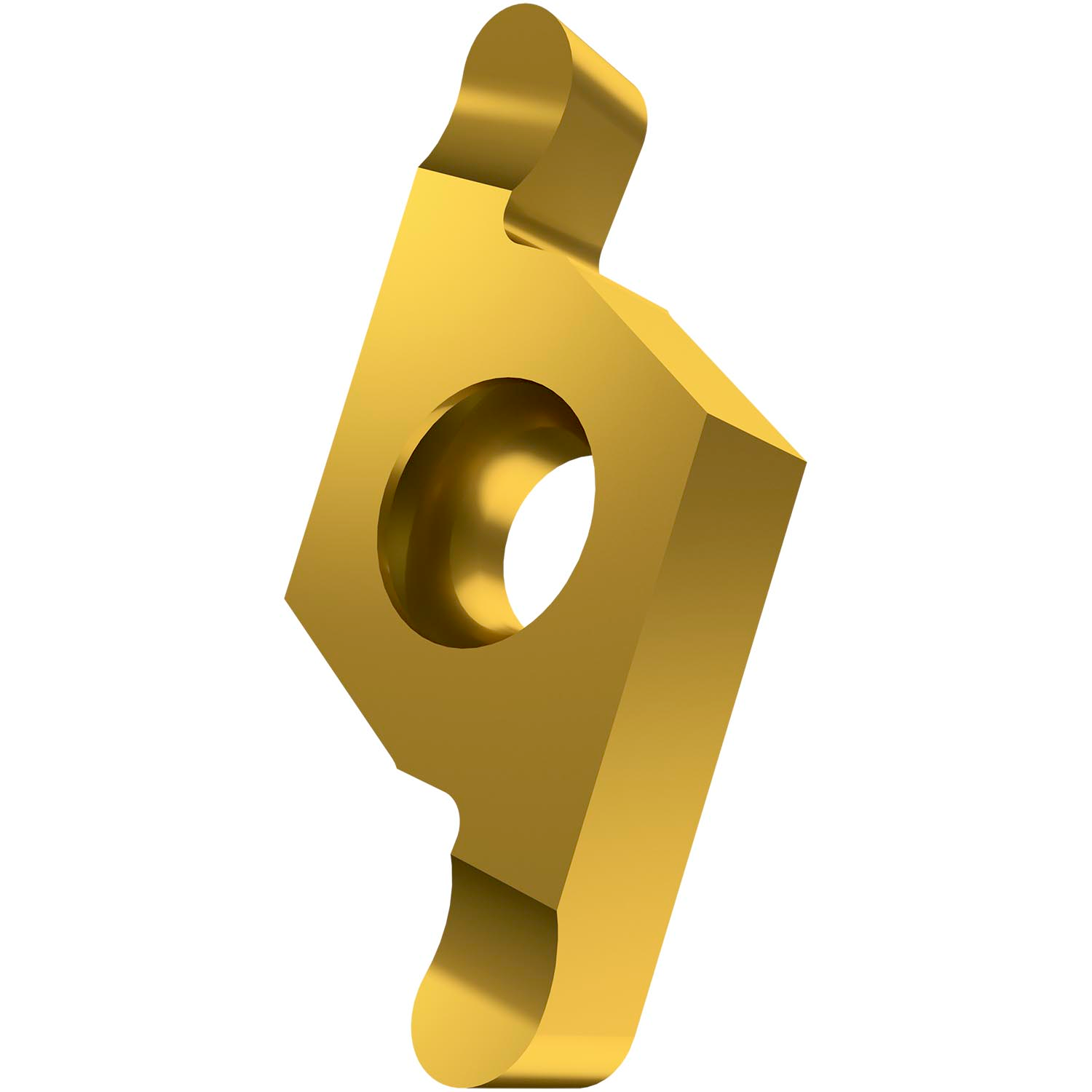

PRAMET X61 0602-R100 R:6640 Turning inserts for grooving

Description

Double ended o-ring grooving insert, with a 2.09mm cutting width and 1mm full radius, a cutting width tolerance of ± 0.03mm and rounded cutting edges, grade 6640 MT-CVD coated WC-Co carbide within ISO-grade ranges P20-P40 and M20-M35 for machining of steel and stainless-steel in combination with DORMER PRAMET P61.SG -1 and GL6-S.. B parting and grooving tools

Additional information

Weight	0.0479 kg
barcode
Additional Information	Description: Value EAN number: 3603603592728 Product number (SAP): 80031732 Ordering code ANSI: X61 0602-R100 R:6640 Gross weight – grams: 2.7 Insert width – millimeter (W1): 6.35 mm Cutting width lower tolerance – millimeter (CWTOLL): -0.03 mm Cutting width upper tolerance – millimeter (CWTOLU): 0.03 mm Insert thickness – millimeter (S): 2.33 mm Grade: 6640 Corner radius – millimeter (RE): 1 mm Cutting width – millimeter (CW): 2.09 mm Cutting depth maximum – millimeter (CDX): 3 mm Insert Design: X 61 R Chipbreaker manufacturer's designation (CBMD): With chipbreaker -no designation Primary Tool Lead Angle: Neutral ISO: X610602-R100R:6640
