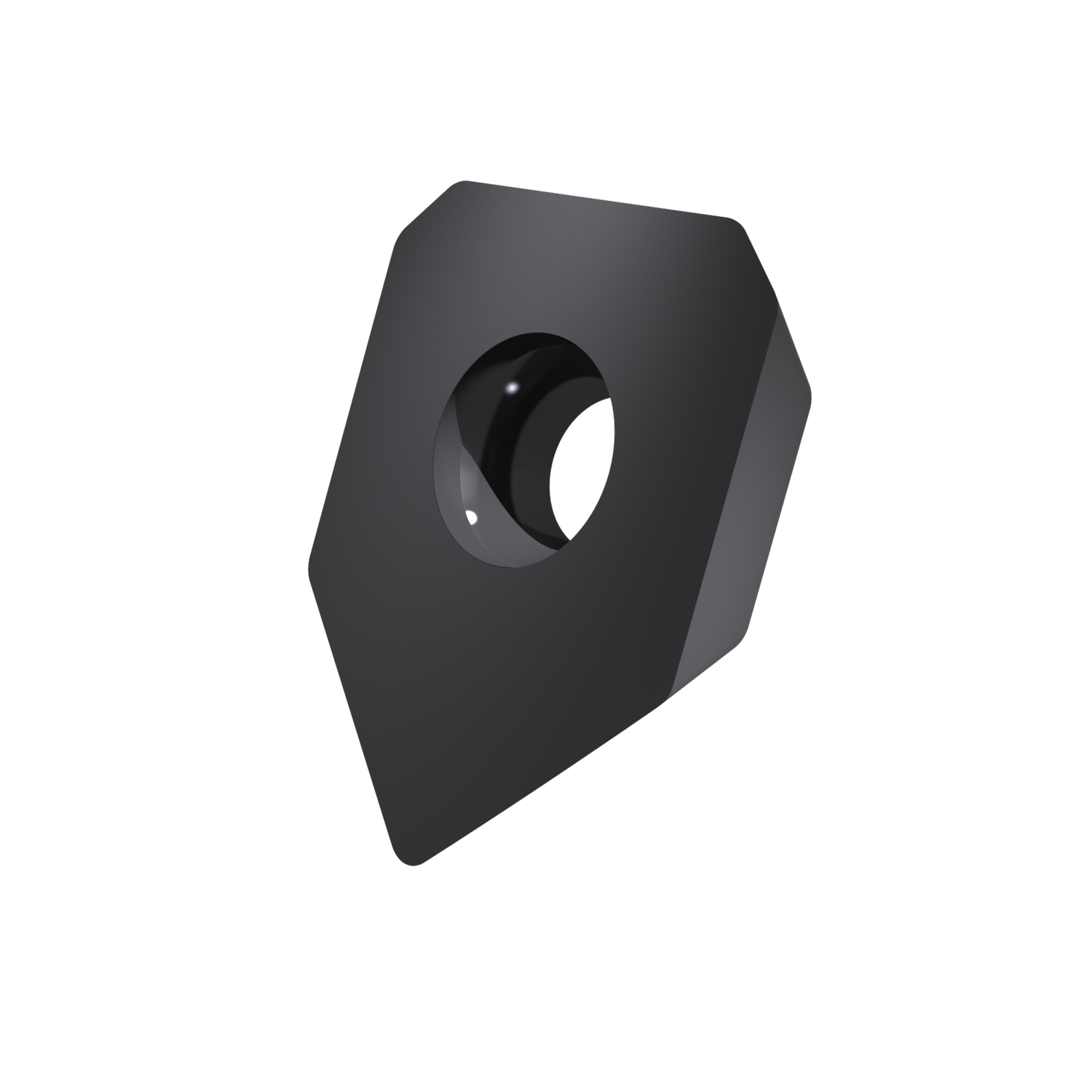

PRAMET XDET 13T3AFER:8215 Milling – other and drilling inserts clamped by screw

Product Code: XDET 13T3AFER:8215

$24.48$22.25 Ex. GST

Product Code: XDET 13T3AFER:8215 SKU XDET 13T3AFER:8215 Categories ,
PRAMET XDET 13T3AFER:8215 Milling - other and drilling inserts clamped by screw

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Single-sided milling insert XDET 13T3 with chip-breakers, special shape for a maximum depth of cut of 6.4mm, with an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges, 8215 PVD coated fine grained WC-Co carbide within ISO-grade ranges P10 -P20 and K10 -K25 for machining of steel and cast-iron with face mills SSD13F

Additional information

Weight 0.0084 kg
barcode

3603603977501
Additional Information

Description: Value
EAN number: 3603603977501
Product number (SAP): 80034490
Ordering code ANSI: XDET 13T3AFER:8215
Gross weight – grams: 8.414
Inscribed circle diameter – millimeter (IC): 13.385 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Insert thickness – millimeter (S): 3.97 mm
Grade: 8215
Insert Clearance Code and Angle: D 15°
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): No chipbreaker
Insert shape code (SC): X – Special design
ISO: XDET13T3AFER:8215
