PRAMET XEHT 0604AESR:M8330 Milling – other and drilling inserts clamped by screw

Product Code: XEHT 0604AESR:M8330

$35.35$32.14 Ex. GST

Product Code: XEHT 0604AESR:M8330 SKU XEHT 0604AESR:M8330 Categories , ,
PRAMET XEHT 0604AESR:M8330 Milling - other and drilling inserts clamped by screw

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

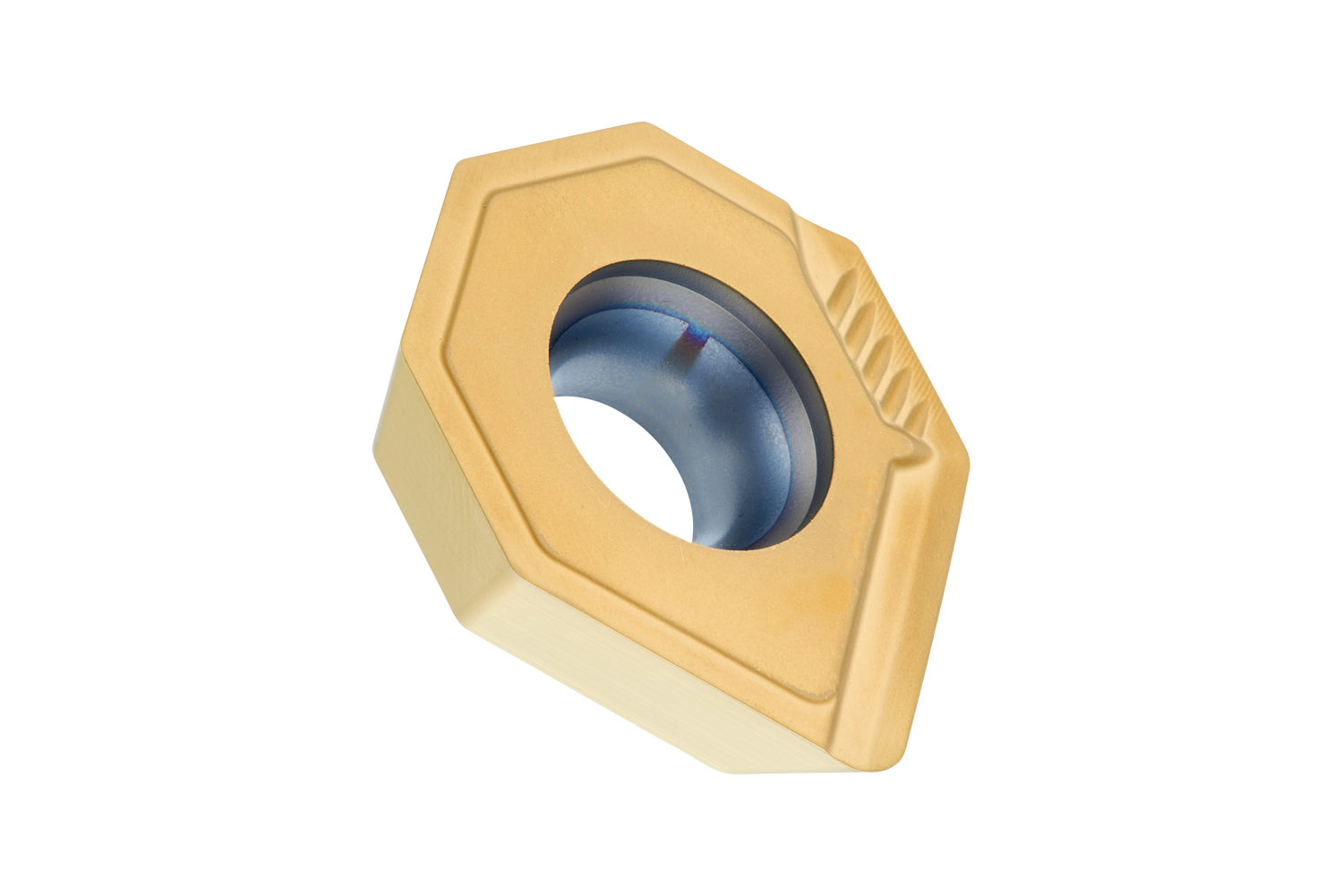

Single-sided milling insert XEHT 0604 with chip-breakers, special shape and wiper design for a maximum depth of cut of 3.3mm, with an indexing accuracy according to ISO-tolerance class-H with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20 -P40 for machining of steel with face mills SOE06Z

Additional information

Weight 0.0343 kg
barcode
Additional Information

Description: Value
EAN number: 3603603389861
Product number (SAP): 80030252
Ordering code ANSI: XEHT 0604AESR:M8330
Gross weight – grams: 10.499
Inscribed circle diameter – millimeter (IC): 16.05 mm
Fixing hole diameter – millimeter (D1): 5.5 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: M8330
Insert Clearance Code and Angle: E 20°
Insert size: 06
Insert Thickness: 04
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): Wiper insert with chipbreaker – no designation
Insert shape code (SC): X – Special design
ISO: XEHT0604AESR:M8330

Brand

PRAMET
